4: INSTALLATION
2. Put the coolant screen on the machine's base below the
saw, as shown in the following image. Make sure that
the nut on the coolant screen is facing up.

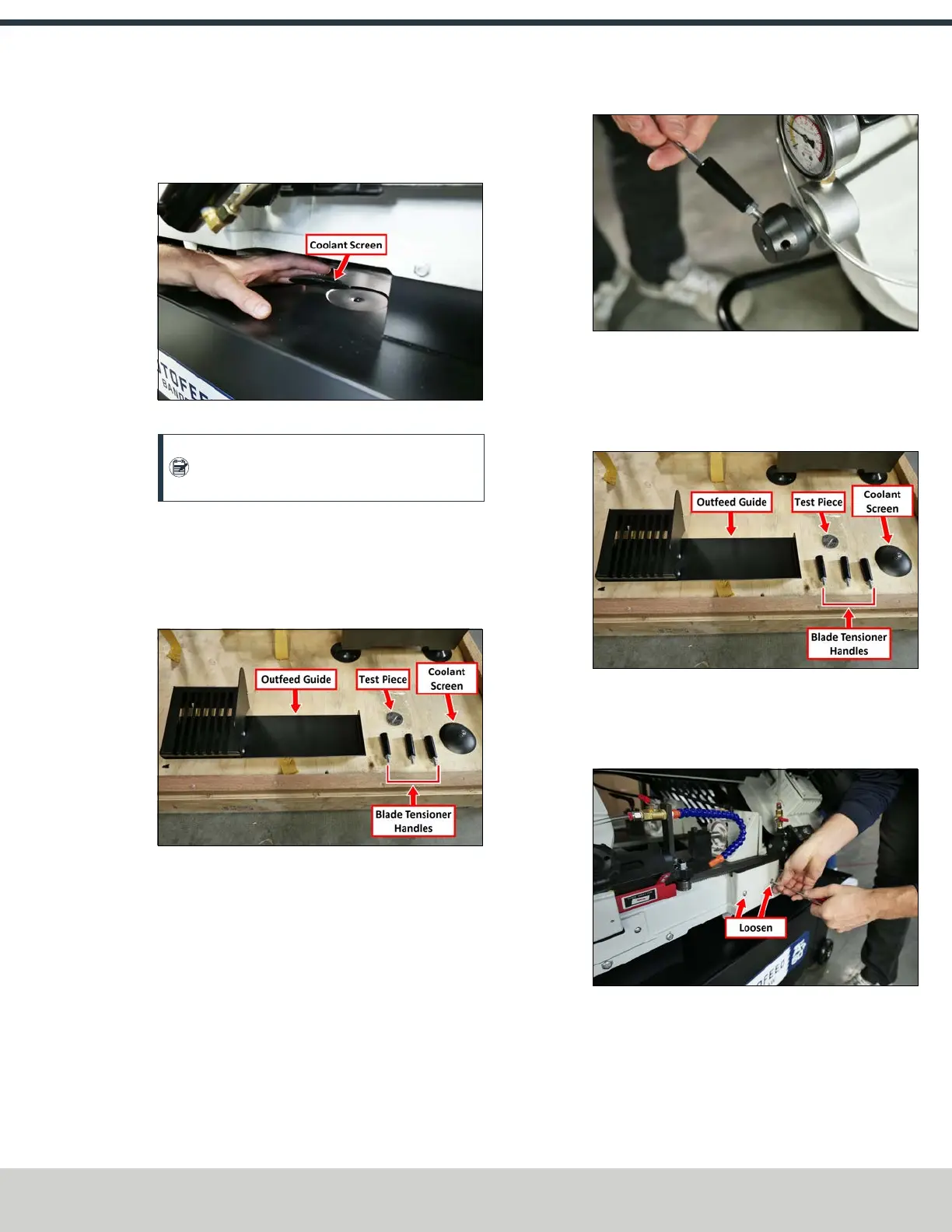

Figure 4-8: Coolant screen put on the machine's base.
Note: The bolt on the coolant screen is intended
to use as a handle.
4.4.3 Install the Blade Tensioner Handles
1. Find the accessory box that you set aside earlier.
Remove the three blade tensioner handles from the box,
and set the outfeed guide aside.
Figure 4-9: Contents of the accessory box.
2. Install the three blade tensioner handles with a flat-
blade screwdriver.
Figure 4-10: Installing the blade tensioner handles.
4.4.4 Install the Outfeed Guide
1. Find the outfeed guide (from the accessory box) that you
set aside earlier.
Figure 4-11: Contents of the accessory box.
2. Identify the two Phillips head screws that are pre-
installed on the machine. Loosen the screws with a
Phillips head screwdriver.
Figure 4-12: Loosening the two screws for the outfeed
guide.
©Tormach® 2024
Specifications subject to change without notice.
Page 23 UM10825: AF50+ Autofeed Bandsaw Operator's Manual (Version
0324A)
For the most recent version, see tormach.com/support
