10: TROUBLESHOOTING
©Tormach® 2024
Specifications subject to change without notice.
Page 69 UM10825: AF50+ Autofeed Bandsaw Operator's Manual (Version
0324A)
For the most recent version, see tormach.com/support
4. Remove the cotter clip (on the end of the quick-release pin).

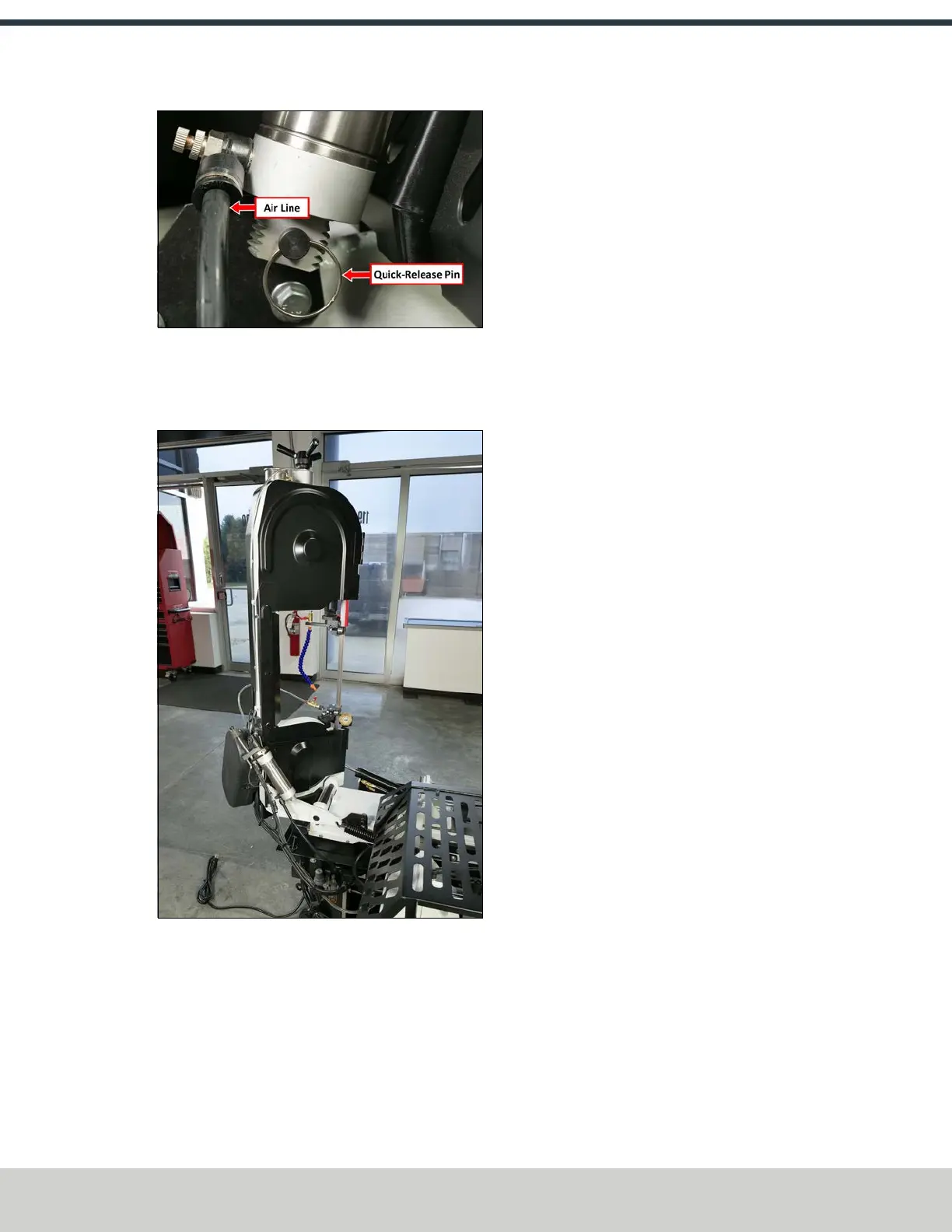

Figure 10-3: Quick-release pin on the air cylinder.
5. Pull the quick-release pin out of the air cylinder, and set it aside.
The air cylinder hangs from the saw head.
6. Lift the saw head to the upright position, as shown in the following image.
Figure 10-4: Bandsaw head lifted upright.
