10: TROUBLESHOOTING
©Tormach® 2024
Specifications subject to change without notice.
Page 70 UM10825: AF50+ Autofeed Bandsaw Operator's Manual (Version 0324A)
For the most recent version, see tormach.com/support
7. Loosen the bolt securing the air cylinder to the bandsaw with an 8 mm hex wrench until the door can open. Make sure the bolt is still
secure enough to hold the air cylinder in place — letting the air cylinder hang adds extra strain to the wires.

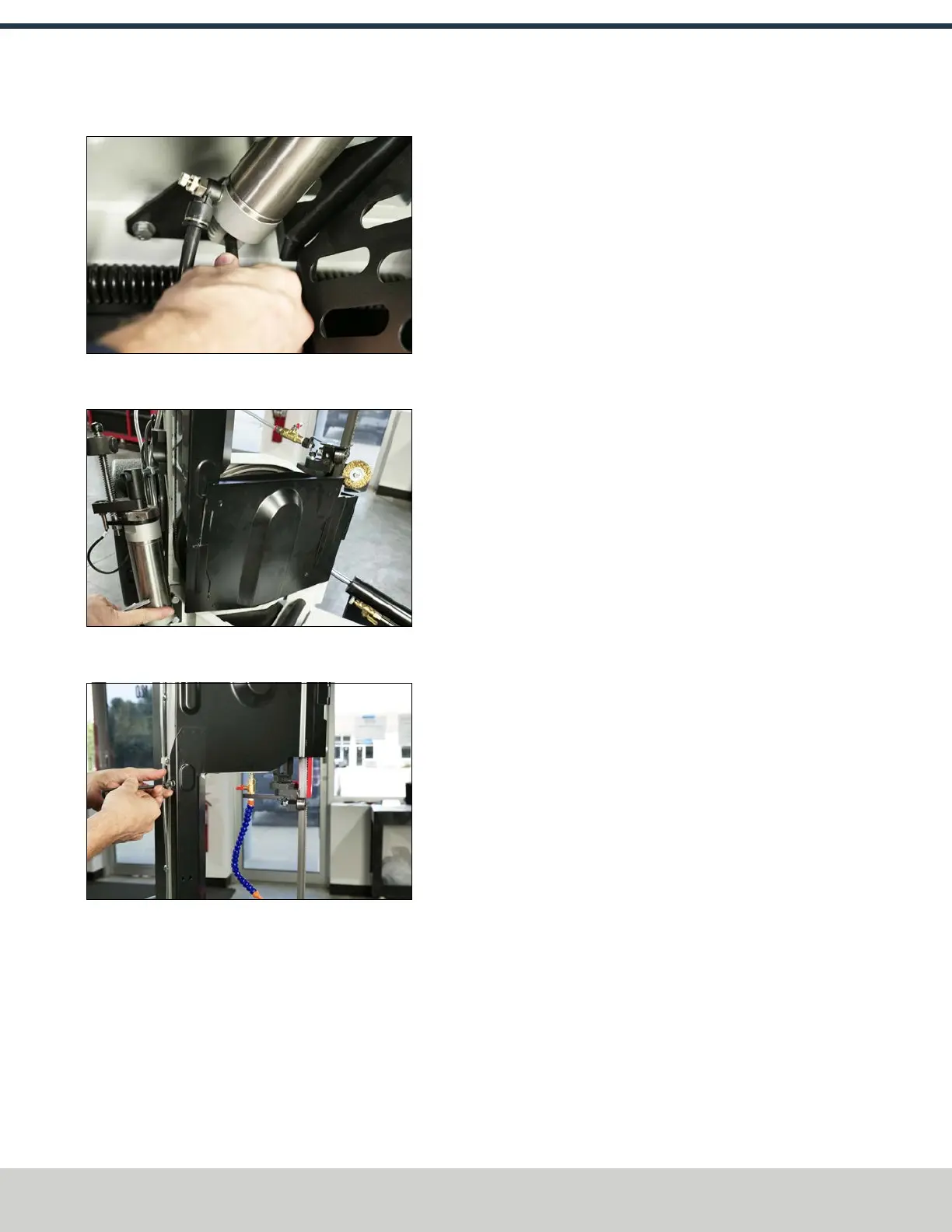

Figure 10-5: Bolt on the air cylinder.
8. Slide up the bottom of the blade cover, and then slide the blade cover up until it clears the base casting.
Figure 10-6: Blade cover.
9. Remove the two screws from the side of the blade cover with a 5 mm hex wrench, and then set aside the screws.
Figure 10-7: Removing the screws securing the blade cover to the bandsaw.
