Toro Groundsmaster 3320-D Service Manual

SpecialTools
YoucanorderthesespecialtoolsfromyourT oroDistributor.Sometoolsare
alsoavailablefromalocaltoolsupplier.

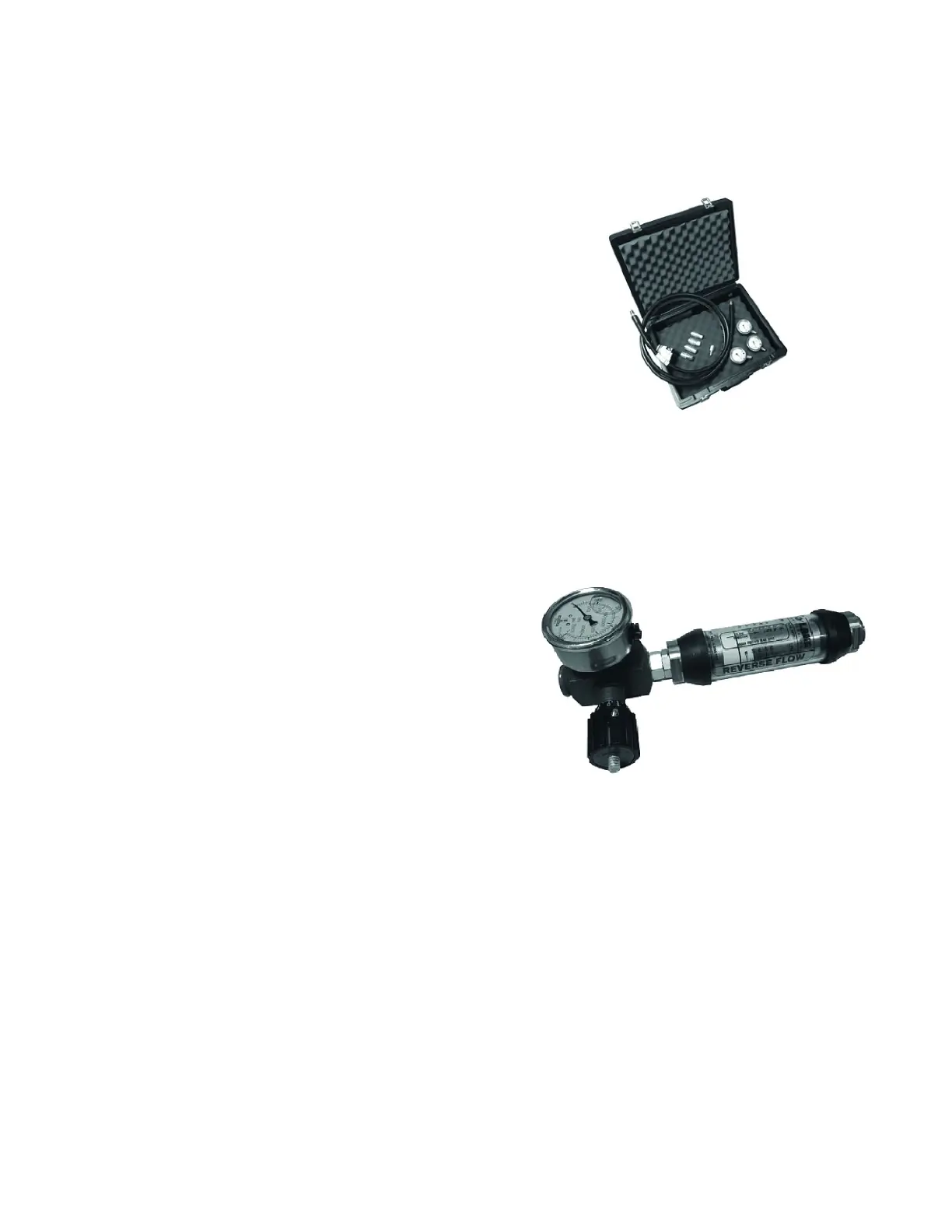

HydraulicPressureTestingKit
ToroPartNo.TOR47009
Usethiskittotakevariouspressurereadingsfordiagnostic
tests.Quickdisconnectttingsareprovidedtoattachdirectly
tothematingttingsonthemachinetestportswithoutthe
tools.Ahigh-pressurehoseisgivenforremotereadings.
Contains1each:6,900kPa(1,000psi),34,500kPa(5,000
psi),and69,000kPa(10,000psi)gauges;refertoTestingthe
HydraulicSystem(page5–47).
15GPMHydraulicTesterKit(PressureandFlow)
ToroPartNo.TOR214678
Usethistestertotestthehydrauliccircuitsandcomponents
forowandpressurecapacitiesasrecommendedinT esting
theHydraulicSystem(page5–47).Thistesterincludesthe
following:
•InletHose:Thishoseconnectsthesystemcircuittotheinlet
sideofthehydraulictester.
•LoadValve:Turnthevalvetorestricttheowtocreatea
simulatedworkingloadinthecircuit.
•PressureGauge:Aglycerinelledpressuregauge0to
34,500kPa(0to5,000psi)toprovideoperatingcircuit
pressure.
•FlowMeter:Thismetermeasurestheactualuidowinthe
operatingcircuitwithagaugeratedat5to55L/minute(1
to15gallons/minute).
•OutletHose:Ahosefromtheoutletsideofthehydraulic
testerthatconnectstothehydraulicsystemcircuit.
•Fittings:Anassortmentofhydraulicttingsareincludedwith
thiskit.
Groundsmaster
®
3280-D/3320
Page5–39
HydraulicSystem:SpecialTools
05138SLRevB
