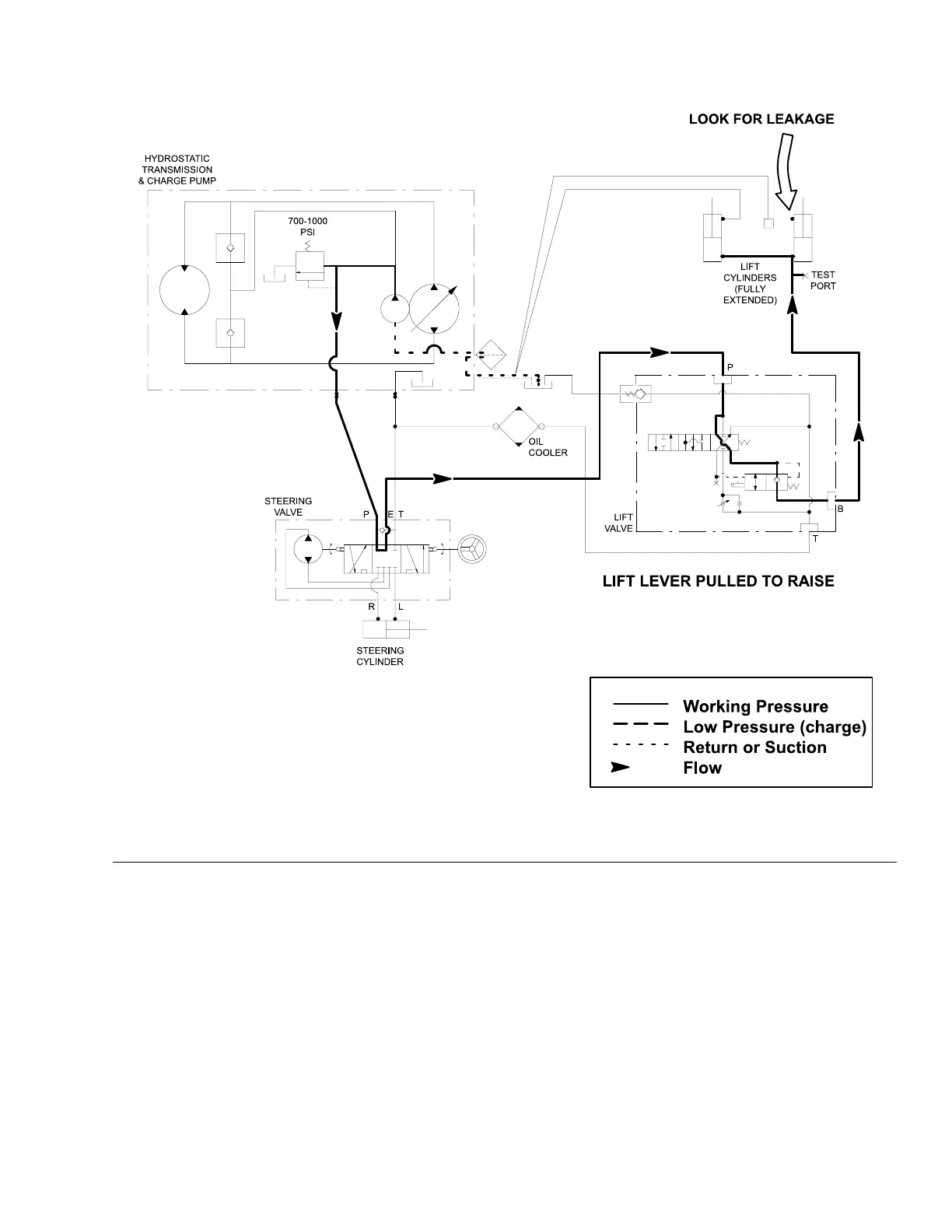

LiftCylinderInternalLeakageTest(MachineSerialNumbersbelow
316000000)
g230805
Figure63
TestProcedure
Theliftcylinderinternalleakagetestshouldbeperformedifacuttingdeck(or
implement)raiseandlowerproblemisidentiîš¿ed.Thistestwilldetermineifthelift
cylindersaredamaged.
Note:Cuttingdeckraise/lowercircuitoperationwillbeaffectedbyliftcylinder
binding,extraweightonthecuttingdeck(orimplement),and/orbindingoflift
components.Ensurethattheseitemsarecheckedbeforeproceedingwithlift
cylinderinternalleakagetest.
1.ParkmachineonalevelsurfacewiththePTOswitchOFF.Settheparking
brakeandblockthefrontwheelstopreventmachinemovement.
Groundsmaster
®
3280-D/3320
Page5–53
HydraulicSystem:TestingtheHydraulicSystem
05138SLRevB
