Toro Groundsmaster 3320-D Service Manual

PTOSwitch
g226809

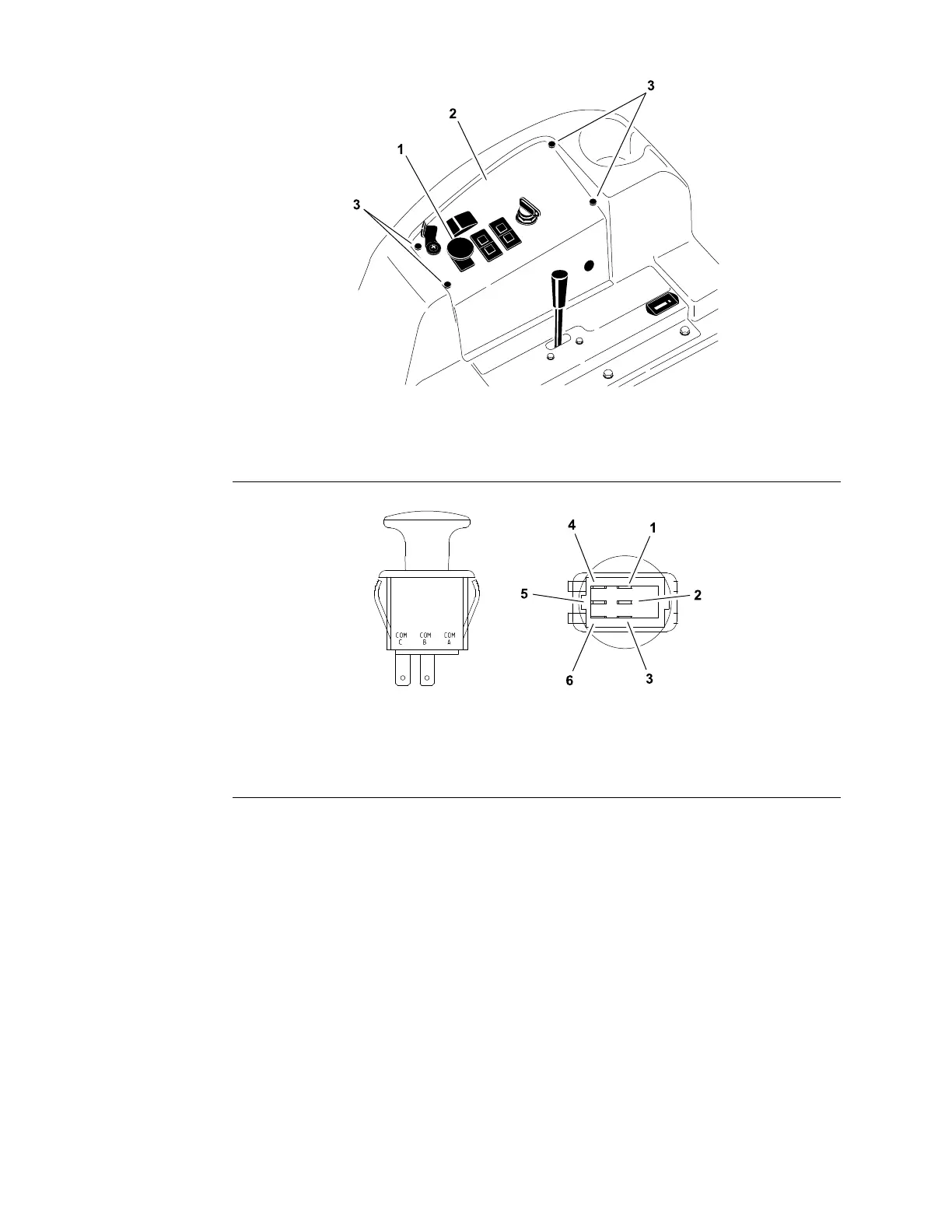

Figure133
1.PTOswitch2.Controlpanel3.Thumbscrew(4each)
g227536
Figure134
1.COMBterminal3.NCBterminal5.NOCterminal
2.NOBterminal4.COMCterminal6.NCCterminal
ThePTOswitchislocatedonthecontrolpanel(Figure133).PullupthePTO
switchtoengagethePTOelectricclutch.
TheStandardControlModule(SCM)monitorsthepositionofthePTOswitch
(upordown).UsingtheinputsfromthePTOswitchandotherswitchesinthe
interlocksystem,theSCMcontrolstheenergizingoftheelectricPTOclutchand
thus,thePTO.IfthekeyswitchisintheONpositionandthePTOswitchis
engaged,theSCMPTOswitchinputLEDshouldbeilluminated.
ElectricalSystem:TestingtheElectricalComponents
Page6–32
Groundsmaster
®
3280-D/3320
05138SLRevB
