Toro Groundsmaster 3320-D Service Manual

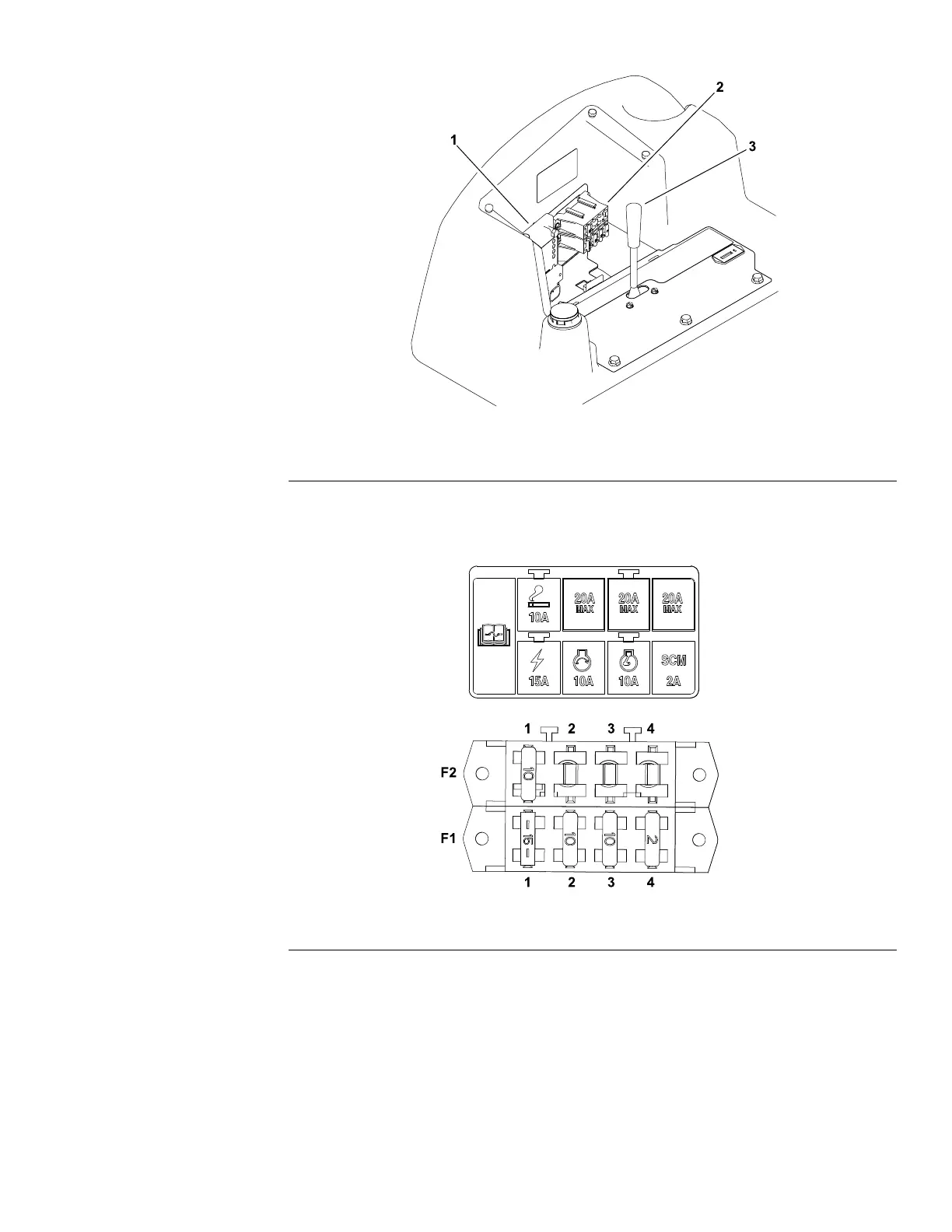

Fuses(MachineSerialNumberabove400000000)
g225175
Figure123
1.SCM
2.Fuseblock3.Throttlecontrollever
Thefuseblocksarelocatedunderthecontrolpanel(Figure123).
IdenticationandFunction
g225176
Figure124
Thefusesareheldinthefuseblocks.UseFigure124toidentifyeachindividual
fuseanditscorrectamperage.Eachfuseholderhasthefollowingfunction.
F1-1(15A):ProtectsmainpowercircuittothekeyswitchterminalB.
F1-2(10A):ProtectspowercircuitfromthekeyswitchterminalS.
F1-3(10A):ProtectspowercircuitfromthekeyswitchterminalI.
F1-4(2A):ProtectspowersupplytotheStandardControlModule.
F2-1(10A):Protectspowersupplytotheauxiliarypower.
Groundsmaster
®
3280-D/3320
Page6–23
ElectricalSystem:TestingtheElectricalComponents
05138SLRevB
