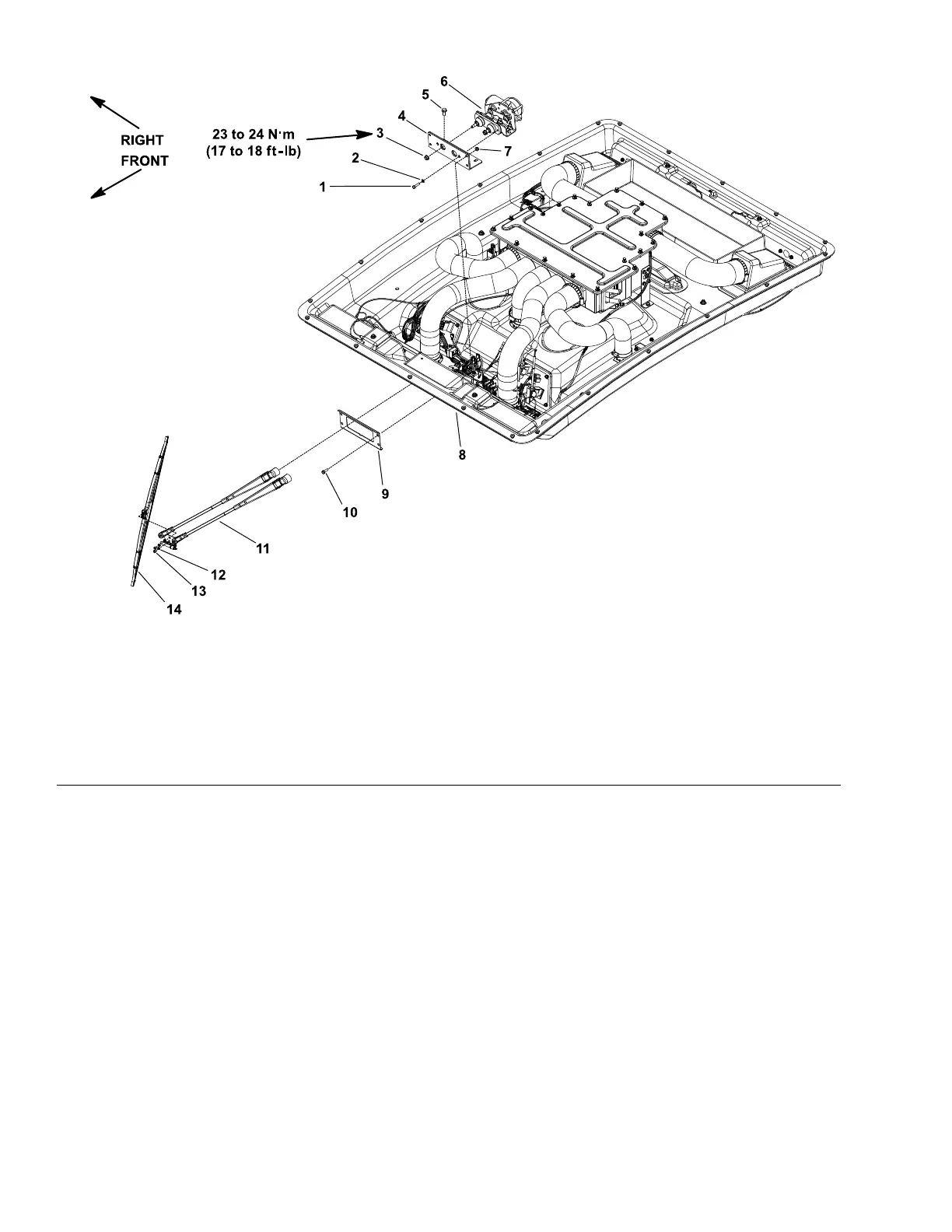

WindshieldWiperAssembly
g243015
Figure316
1.Bolt6.Wipermotor11.Wiperarmassembly
2.Lockwasher
7.Flangenut(4each)12.Lockwasher(2each)
3.Flangenut(2each)
8.Cabheadliner13.Screw(2each)
4.Wiperbracket9.Washerplate14.Wiperblade
5.Washer-headscrew(2each)10.Washer-headscrew(4each)
DisassemblingtheWindshieldWiperAssembly
1.Parkthemachineonalevelsurface,lowerthecuttingdeck,shutoffthe
engine,settheparkingbrake,andremovethekeyfromthekeyswitch.
2.Removethe2screws(item13inFigure316)and2lockwashersthatsecure
thewiperbladetothewiperarmassembly,andremovethewiperblade.
3.Ifnecessary,removethewiperarmassemblyasfollows:
A.Disconnectthewasherhosefromthewiperassembly.
B.Liftthecapsatthetopofthewiperarmsandremovethe2angenuts
thatsecurethewiperarmstothewipermotor.
C.Useasuitablepullertoremovethetaperedwiperarmsocketsfromthe
wipermotorshafts.
4.Ifaccesstothewipermotorisnecessary,removetherooffromthetopof
thecabtogetaccesstothewipermotorassembly;refertoRemovingthe
RoofAssembly(page11–4).
5.RemovethewipermotorcomponentsasshowninFigure316.
OperatorCab:ServiceandRepairs
Page11–14
Groundsmaster
®
3280-D/3320
05138SLRevB
