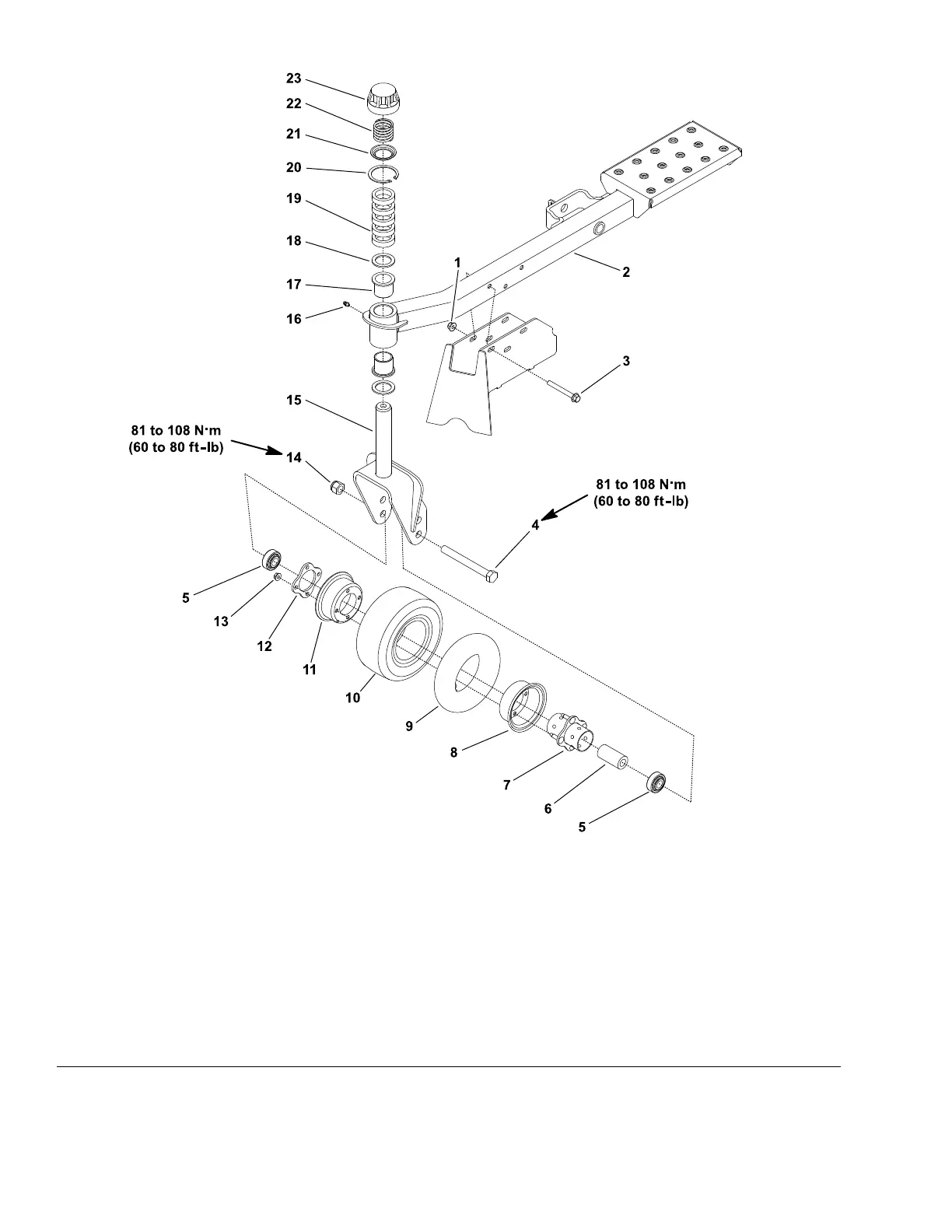

CastorForksandWheels
g223659
Figure306
1.Flangenut(5eachperarm)
9.Innertube
17.Flangebushing(2each)
2.Castorarm(left)
10.Castortire18.Thrustwasher(2each)
3.Bolt(5eachperarm)11.Wheelrimhalf19.Spacer
4.Bolt12.Plate20.Retainingring
5.Bearing(2each)13.Flangenut(4each)21.Capwasher
6.Innerbearingspacer14.Locknut
22.Compressionspring
7.Wheelhub
15.Castorfork23.Cap
8.Wheelrimhalf16.Greaseîš¿tting
CuttingUnits:ServiceandRepairs
Page10–18
Groundsmaster
®
3280-D/3320
05138SLRevB
