BlowerFan
g243780

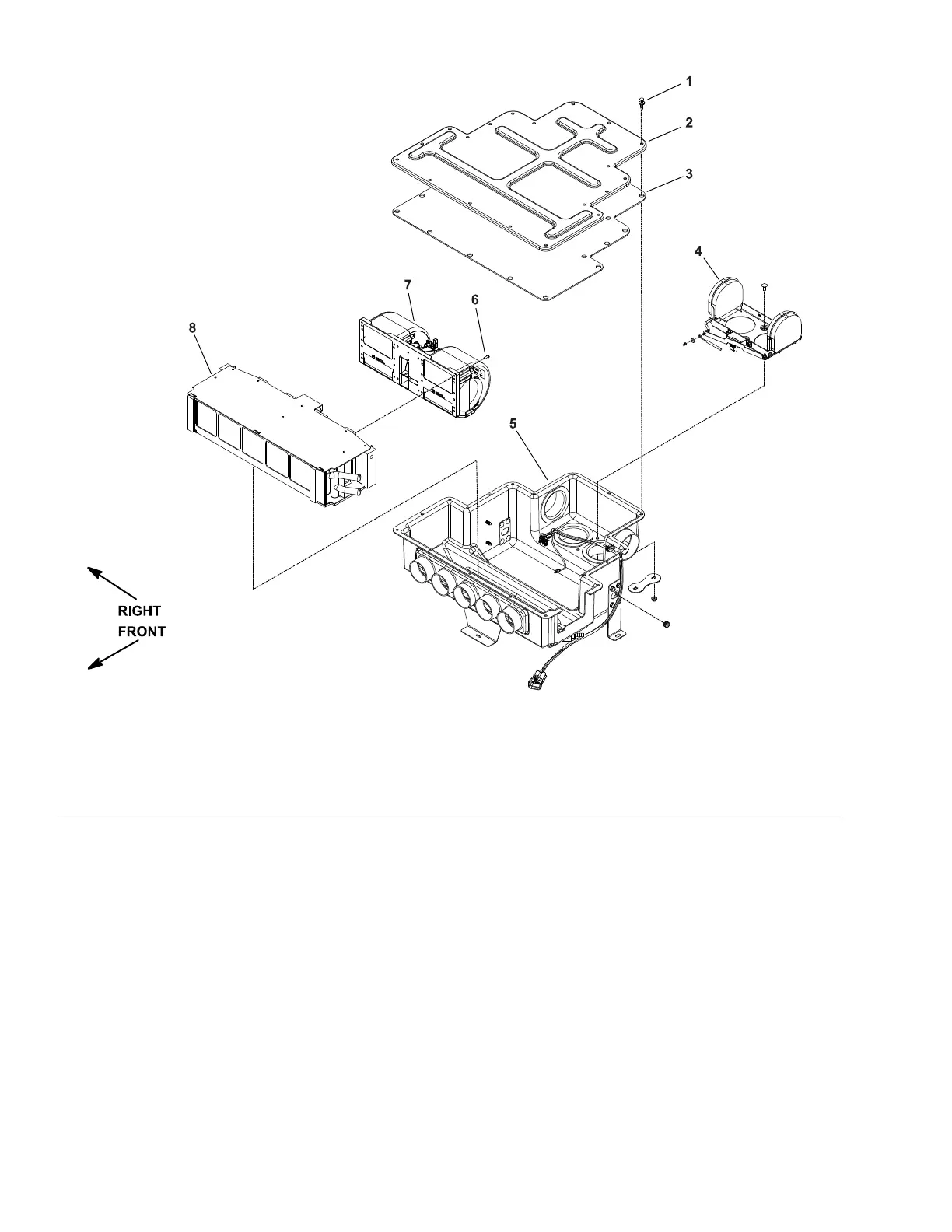

Figure314
1.Rivet(19each)
4.Airdiverterassembly
7.Blowerfan
2.Mixingboxcover5.Mixingbox8.Heatercoreassembly
3.Coverinsulation6.Tapscrew(6each)
Note:Theblowerfancanberemovedandinstalledwiththemixingbox(item5
inFigure314)attachedtothecabheadliner.
RemovingtheBlowerFan
1.Parkthemachineonalevelsurface,lowerthecuttingdeck,shutofthe
engine,settheparkingbrake,andremovethekeyfromthekeyswitch.
2.Removetherooffromthetopofthecabtogetaccesstotheblowerfan;refer
toRemovingtheRoofAssembly(page11–4).
3.Forassemblypurposes,labeltheheaterhoses.Loosenthehoseclamps
anddisconnectboththeheaterhosesfromthetubesontheheatercore.
4.Removethemixingboxcoverasfollows:
A.Carefullyuseasmallprybartoraisetheheadofthepininthecenterof
eachrivetthatsecuresthemixingboxcover.
B.Lifttherivetsfromthecoverandmixingbox.
OperatorCab:ServiceandRepairs
Page11–12
Groundsmaster
®
3280-D/3320
05138SLRevB
