ServicingtheRearAxle(2-WheelDrive)

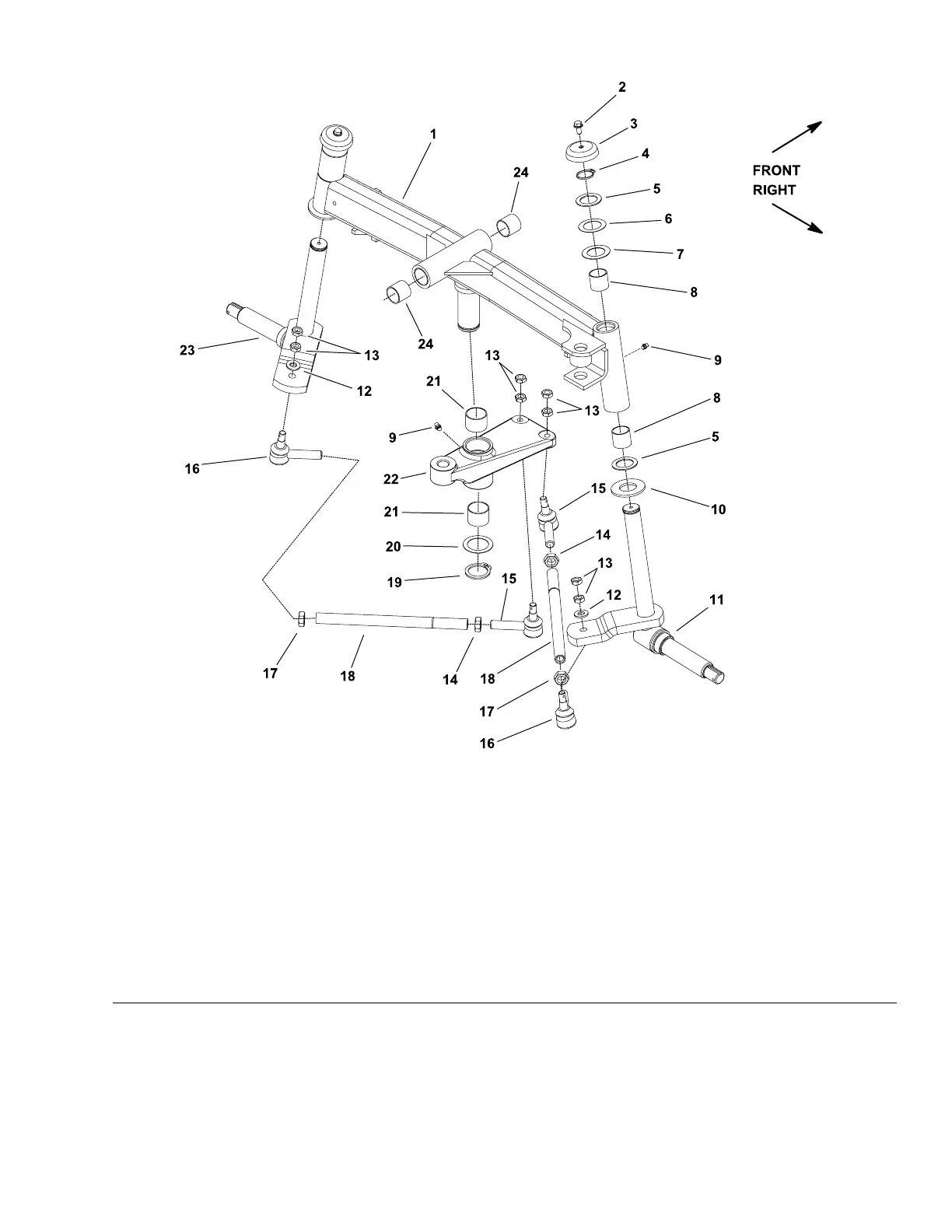

g223802

Figure182

1.Rearaxle

9.Greasetting(4each)17.Jamnut(2each)

2.Flange-headscrew

10.Thrustwasher

18.Tierod(2each)

3.Spindlecap

11.Rightspindle19.Retainingring

4.Retainingring

12.Flatwasher(2each)

20.Thrustwasher

5.Thrustwasher(0.060inchthick)(2

each)

13.Jamnut(8each)21.Steeringpivotbushing(2each)

6.Flatwasher(0.018inchthick)14.Jamnut(left-handthread)(2each)22.Steeringpivotplate

7.Flatwasher(0.032inchthick)15.Balljoint(left-handthread)(2each)23.Leftspindle

8.Spindlebushing(2each)16.Balljoint(2each)24.Axlepivotbushing(2each)

Note:Forrepairinformationregardingtherearaxleon4-wheeldrivemachines;

refertoChapter8:DriveAxles(page8–1).

Groundsmaster

3280-D/3320

Page7–13

Chassis:ServiceandRepairs

05138SLRevB
