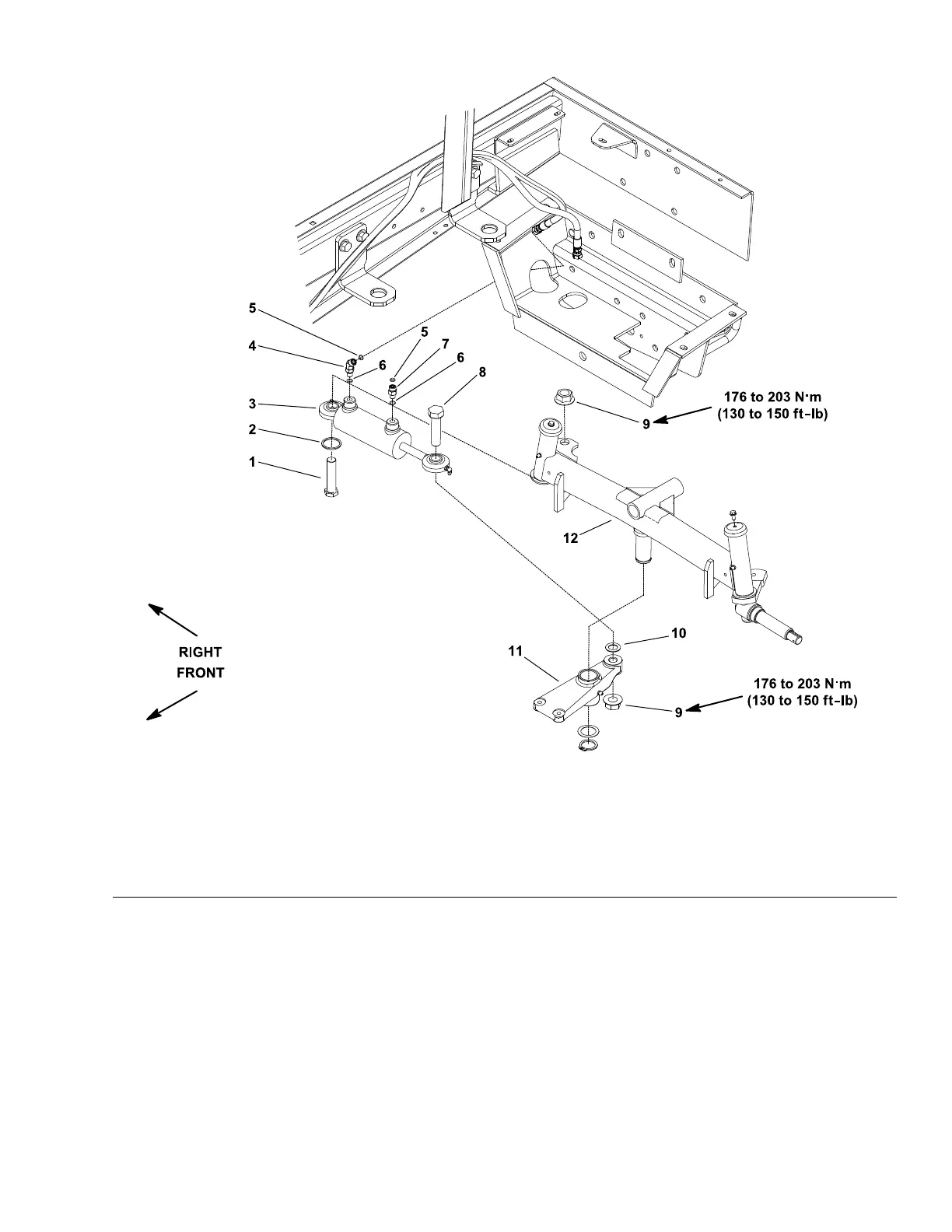

SteeringCylinder(2-WheelDrive)
g224773
Figure97
1.Bolt
5.O-ring(2each)9.Flangenut(2each)
2.Spacerring6.O-ring(2each)
10.Thrustwasher
3.Steeringcylinder7.Straighthydraulictting11.Steeringpivotplate
4.45°hydraulictting
8.Bolt12.Rearaxle
Groundsmaster
®
3280-D/3320
Page5–117
HydraulicSystem:ServiceandRepairs
05138SLRevB
