Toro Groundsmaster 3320-D Service Manual

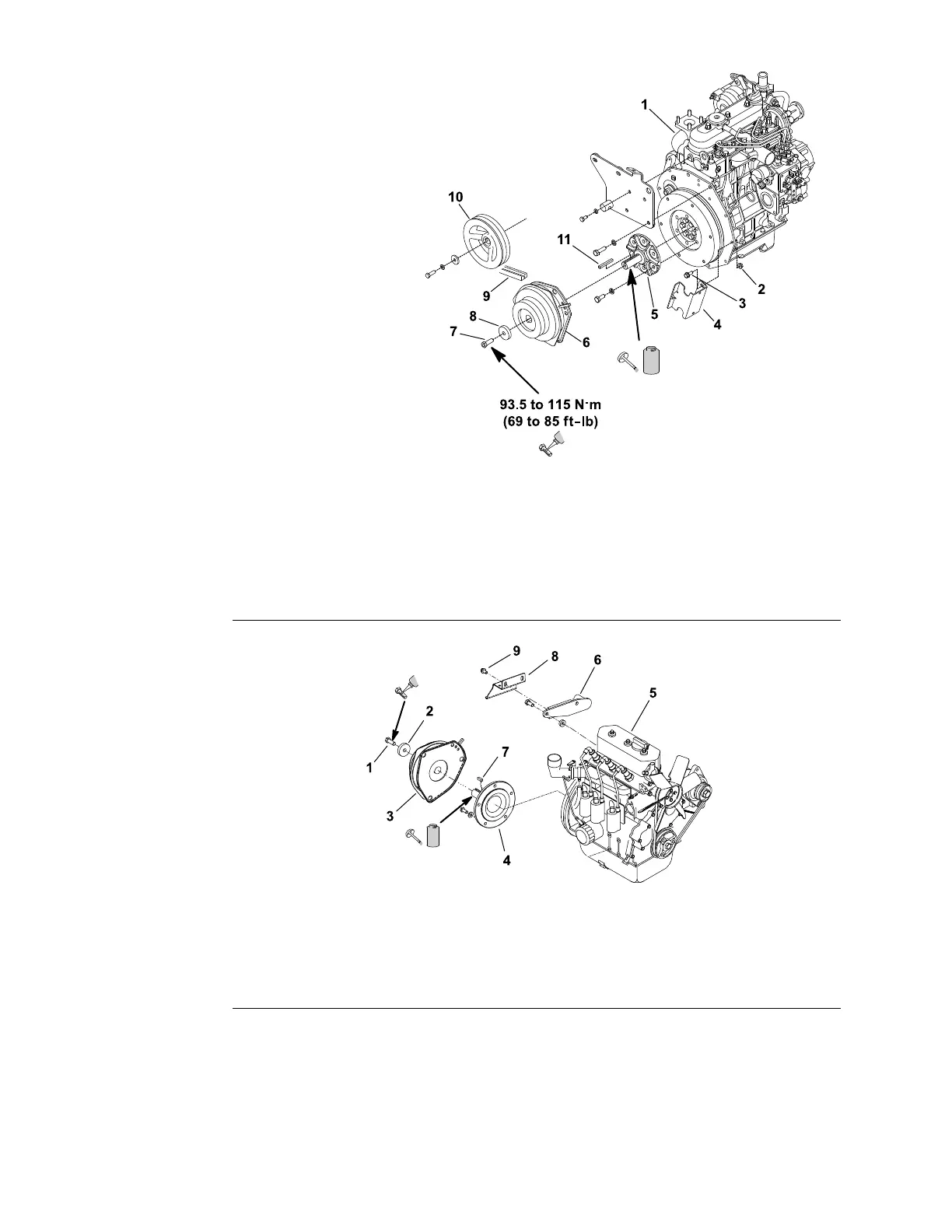

PTOElectricClutch
g227287
Figure175
1.Kubotadieselengine
5.Stubshaft9.PTOdrivebelt
2.Flangenut(2each)
6.Electricclutch
10.PTOshaftpulley
3.Flange-headscrew(2
each)
7.Bolt
11.Squarekey
4.Clutchstop8.Spacer
g230999
Figure176
1.Bolt
4.Stubshaft7.Squarekey
2.Spacer5.Gasolineengine8.Clutchstop
3.Electricclutch6.Mountingbracket9.Flange-headscrew
RemovingthePTOElectricClutch
1.Parkmachineonalevelsurface,lowercuttingdeck(orimplement),shutoff
theengine,settheparkingbrake,andremovethekeyfromthekeyswitch.
2.Unplugtheclutchconnectorfromthemachinewireharness.
ElectricalSystem:ServiceandRepairs
Page6–78
Groundsmaster
®
3280-D/3320
05138SLRevB
