2.9 Position and Print Tone Fine Adjustment
E2-64
2.9.1 Fine Adjustment (Cont.)
(3) BACK ADJ.
Reverse feed amount to the next print start position is fine
adjusted.

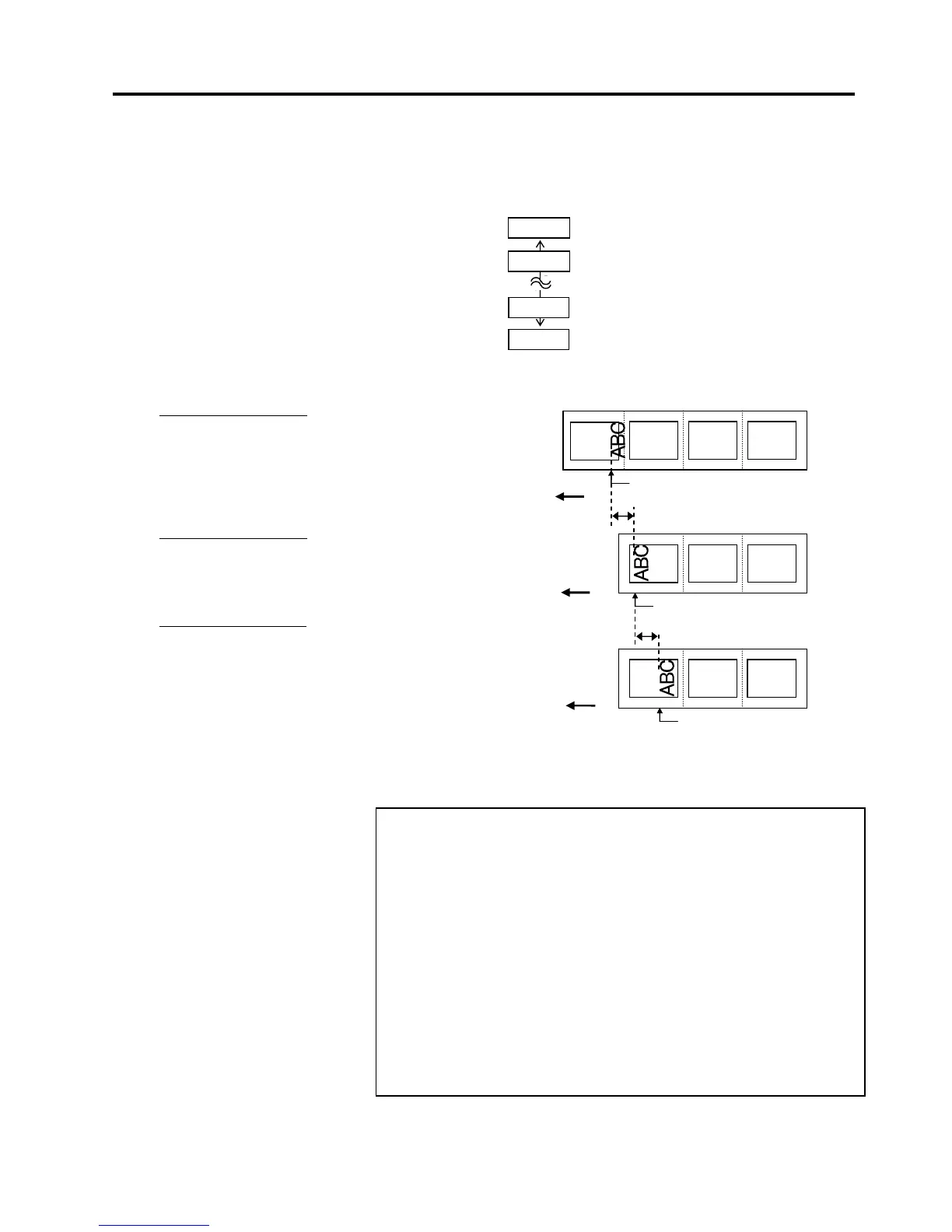

• Example of Reverse Feed Amount Fine Adjustment
When setting +3.0 mm
Compared with “+0.0mm” position, the print start position
after a reverse feed is shifted forward.
When setting +0.0 mm
When setting –3.0 mm
Compared with “+0.0mm” position, the print start position
after a reverse feed is shifted backward.
9.9mm
-9.9mm
9.8mm
-9.8mm
3mm
Print Start Position after a
reverse feed
Print Start Position after a
reverse feed
3mm
Feed Direction
Feed Direction
Print Start Position after a
reverse feed
Feed Direction
NOTE:
Depending on the print conditions, a label may not return to the home
position with a reverse feed, even if a reverse feed amount is specified to
the same length as the forward feed.
On the following conditions, the media may not return to the home
position, resulting in an error.
• The media sensor is used.
• The media pitch is almost the same as the distance between the print
head and the media sensors (75.5 mm.)
• A printer action includes a reverse feed (such as cut issues, strip issues,
and automatic forward feed standby.)
To prevent an error from occurring, the reverse feed amount needs to be
increased by performing the back feed fine adjustment in the positive (+)
direction.
