2.9 Position and Print Tone Fine Adjustment
E2-65
2.9.1 Fine Adjustment (Cont.)
(4) X ADJUST
Print position in X-coordinate (horizontal direction) is fine
adjusted.
ABC
ABC
ABC
50.0mm
50.0mm
Top Down Printing
X
Y
Bottom First Printing
X
Y
99.5mm
-99.5mm
99.4mm
-99.4mm

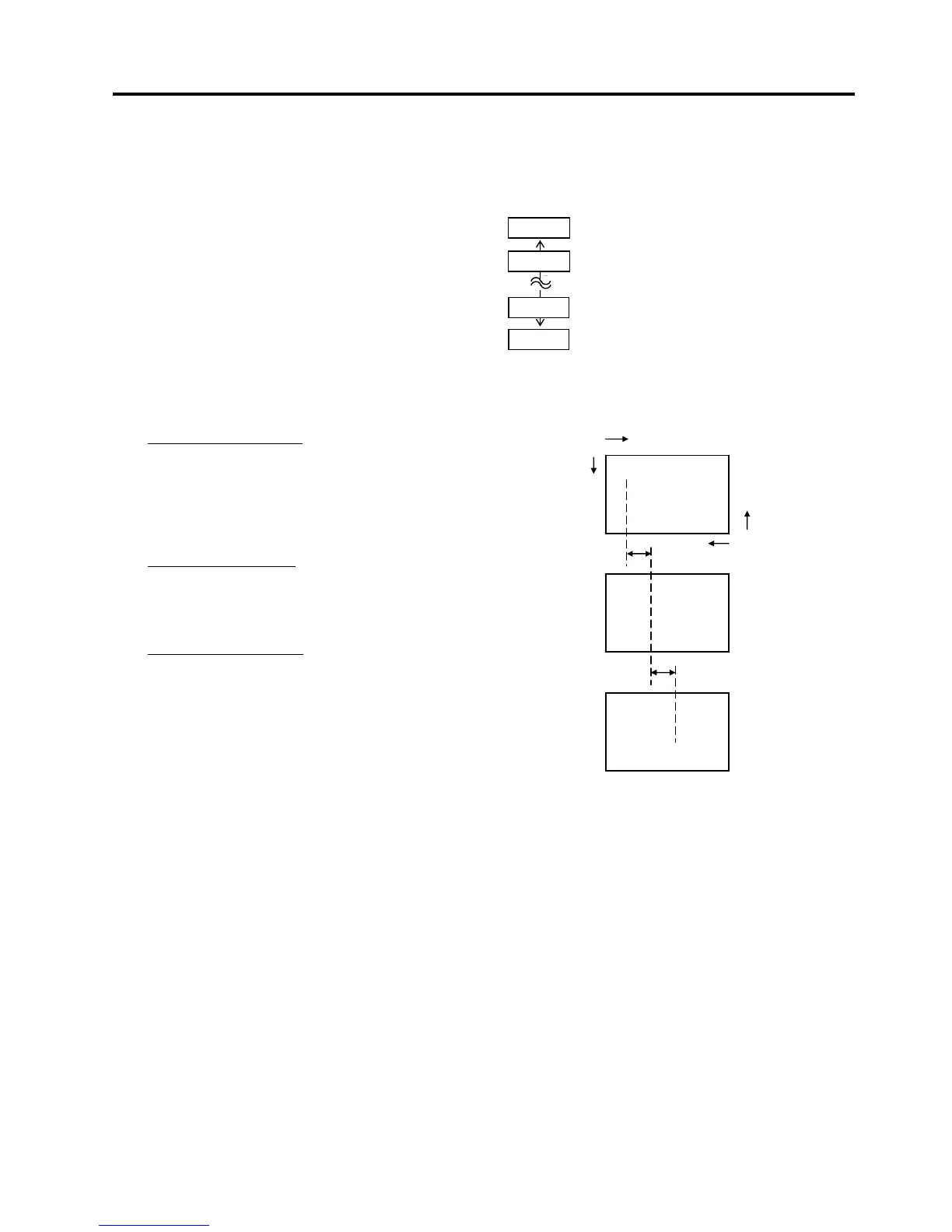

• Example of X Coordinate Fine Adjustment
When setting –50.0 mm
Compared with “+0.0mm” position, the print position
is shifted to the left.
When setting +0.0 mm
When setting +50.0 mm
Compared with “+0.0mm” position, the print position
is shifted to the right.
