[6] Registering new master schedules in the Running Schedule screen
Schedules are set by registering a master schedule to an air conditioner.
▼ Condition of icons in schedule registration mode
▼ Condition of icons in schedule registration mode, registered or deleted

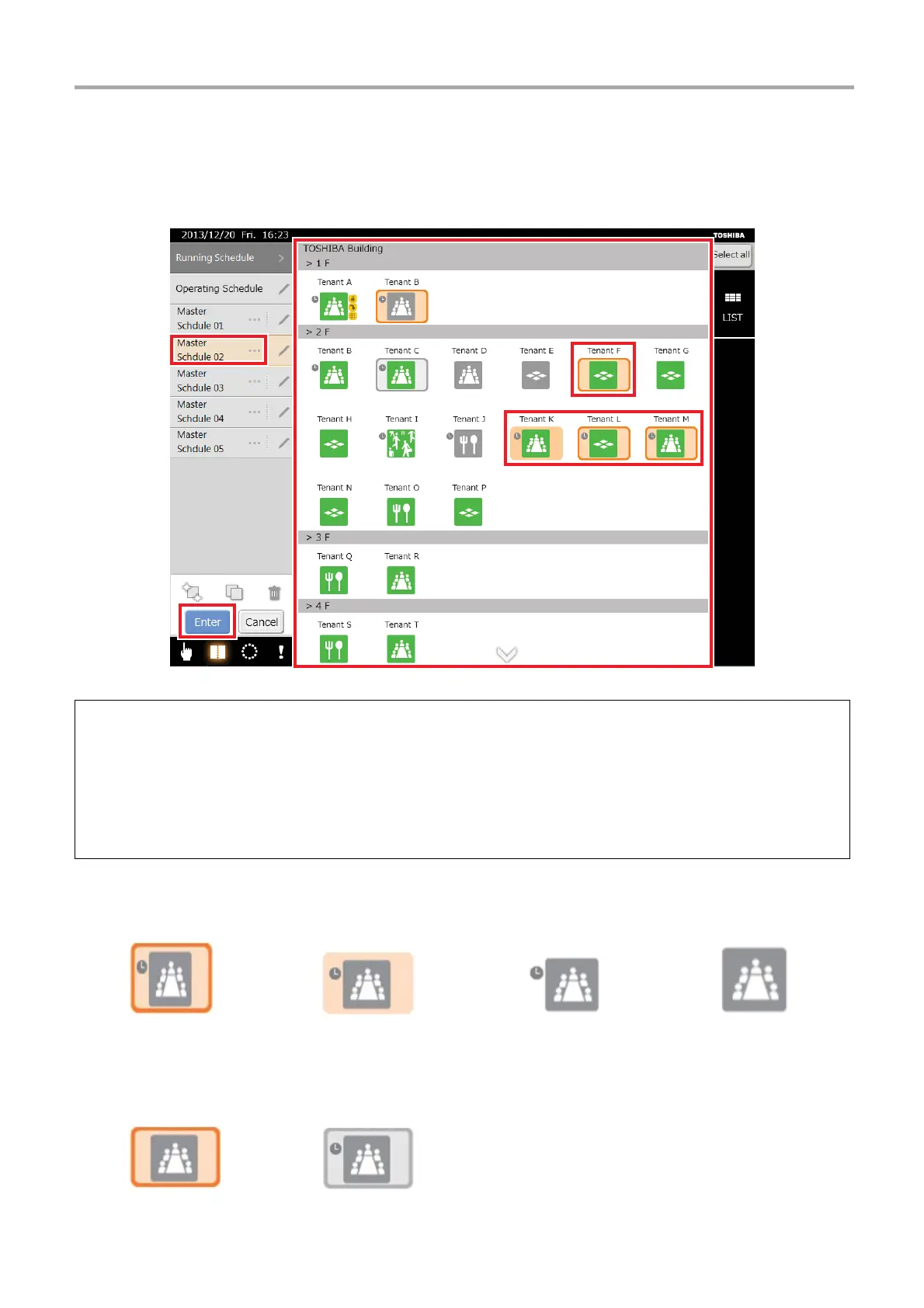

(1) Do "Level Shift" <1> to a level on which there is a group icon you want to register.
(2) Tap the master schedule name
<2> you want to register.
The system enters the schedule registration mode, and you cannot shift levels. The group Icon
<3> to which the selected
master schedule was registered is highlighted so you can confirm the current registration status.
(3) Tap the group icon that you want to register.
The selection frame of the group icon
<4> that you tapped flashes.
(4) Tap the [Enter] button
<5>.
The selection frame of the group icon lights, the schedule icon appears, and registration is finished.
A schedule has been
registered.
Schedules have been
registered to some air
conditioners.
A different schedule has
been registered.
A schedule has not been
registered.
Register schedules.
(Frame flashes)
Reset schedules.
(grey)
<1><1>
<2><2>
<5><5>
<4><4>
<3><3>
[Running Schedule screen]
