66
-EN
TOUCH SCREEN CONTRO
LLER for Air Conditioning Control Sys
tem
Owner's Manual
5-6.

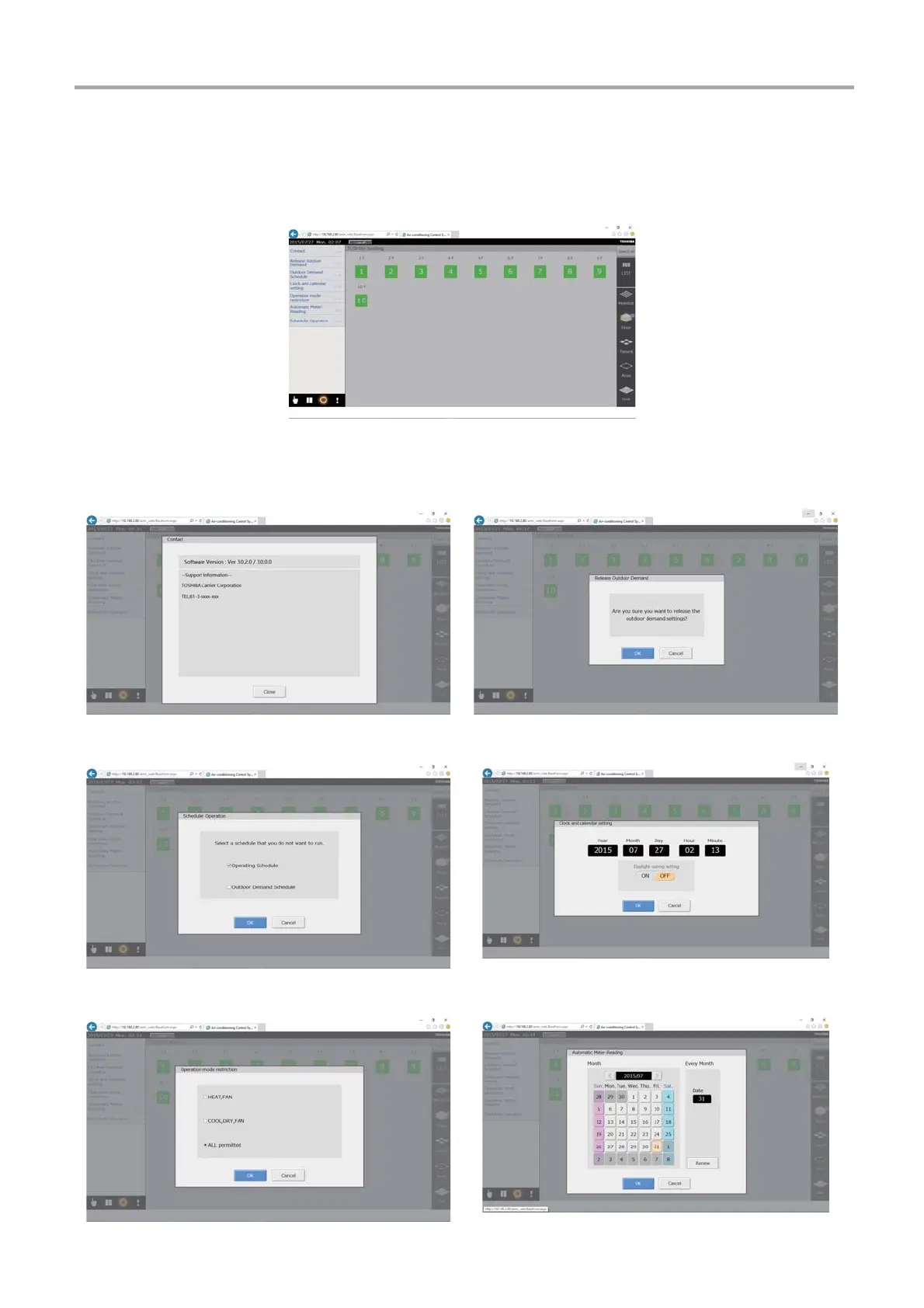

Option screen display
Each function on the option screen now has a dialog box.
[Option screen]
▼
Each
function on the
Option screen
[Contact Information
screen]
[Release Outdoor
Demand screen]
[Schedul
er Operation
screen]
[Clock and Calendar Settings screen]
[Operation Mode Restrictio
n screen]
[Automatic Meter-Reading scr
een]
65
67
Table of Contents
Default Chapter
2
Table of Contents
2
1 Precautions for Safety
5
2 Main Functions
6
3 Names and Functions of Main Screens
7
Control Screen
7
Air Conditioner Status List Display
8
Icon Display
10
Group Icons
10
Menu Icons
11
Display Switching Icons
11
4 How to Operate
12
Moving Levels
12
Moving to a Lower Level on the Control Screen
12
Moving to an Upper Level on the Control Screen
12
Changing Air Conditioner Settings
13
Changing Individual Settings of Air Conditioners on the Control Screen
13
Changing Multiple Settings of Air Conditioners on the Control Screen
14
Changing the Advanced Functions of Air Conditioners on the Control Screen
15
Schedule Settings
17
Creating New Master Schedules in the Running Schedule Screen
18
Creating Schedules in the Master Schedule Detailed Settings Screen
19
Copying Daily Schedule in the Master Schedule Weekly Pattern Settings Screen
20
Setting Special Days in the Master Schedule Special Day Pattern Settings Screen
20
Changing, Copying, and Deleting Master Schedules in the Running Schedule Screen
21
Registering New Master Schedules in the Running Schedule Screen
22
Confirming and Changing the Content of Schedules Registered in the Running Schedule Screen
23
Schedule
24
Billing Schedule Settings
25
Creating New Billing Schedules in the Billing Schedule Screen
26
Creating Schedules in the Billing Schedule Detailed Settings Screen
27
Copying Daily Schedule in the Billing Schedule Weekly Pattern Settings Screen
27
Setting Special Days in the Billing Schedule Special Day Pattern Settings Screen
27
Changing, Copying, and Deleting Billing Schedules in the Billing Schedule Screen
27
Registering Billing Schedules in the Billing Schedule Screen
27
Setting Outdoor Demand Schedule
28
Opening the Outdoor Demand Schedule Screen
28
Creating New Outdoor Demand Schedules in the Outdoor Demand Schedule Screen
29
Creating Schedules in the Outdoor Demand Schedule Detailed Settings Screen
30
Copying Daily Schedule in the Outdoor Demand Schedule Weekly Pattern Settings Screen
30
Setting Special Days in the Outdoor Demand Schedule Special Day Pattern Settings Screen
30
Changing, Copying, or Deleting Outdoor Demand Schedules in the Outdoor Demand Schedule Screen
30
Registering Outdoor Demand Schedules in the Outdoor Demand Schedule Screen
30
Alarm List and Alarm History List Screen
31
Alarm List Screen
31
Alarm History List Screen
31
List Display
32
Monitor Screen
34
Changing the Settings of Air Conditioners on the Monitor Screen
34
Layout Screen (TOUCH SCREEN CONTROLLER Only)
35
Checking the Position of Air Conditioners
35
Selecting the Air Conditioner on the Layout Screen
36
Changing the Settings of Air Conditioners on the Layout Screen
36
Zooming in and out of the Layout Diagram
37
Moving the Position of the Display of a Zoomed in Layout Diagram
37
Moving to Other Layout Diagrams
38
Registering the Air Conditioner in the Layout Diagram
39
Changing to Layout Registration Mode from the Control Screen
39
Registering the Air Conditioner to the Layout Diagram from Layout Registration Mode
40
Changing to Layout Registration Mode with the Layout Screen
41
Changing and Clearing the Air Conditioner Registration of the Layout Diagram
42
Changing the Top Level
43
Changing the Top Level on the Control Screen
43
Switching the Display of the Unit Names
44
Switching Unit Names in the Control Screen
44
Option Screen
45
Settings Related to Air Conditioners
45
Release Outdoor Demand
45
Disabling Schedules
46
Operation Mode Restriction
46
System Settings
47
Contact Information
47
Clock and Calendar Setting
47
Automatic Meter-Reading
48
Manual Meter-Reading (TOUCH SCREEN CONTROLLER Only)
48
Icon Settings (TOUCH SCREEN CONTROLLER Only)
49
Display Settings (TOUCH SCREEN CONTROLLER Only)
49
Password Setting (TOUCH SCREEN CONTROLLER Only)
50
IP Address Setting (TOUCH SCREEN CONTROLLER Only)
51
User Account Setting (TOUCH SCREEN CONTROLLER Only)
52
Output to USB Memory (TOUCH SCREEN CONTROLLER Only)
53
System Initialize (TOUCH SCREEN CONTROLLER Only)
53
Alarm Email Address Setting (TOUCH SCREEN CONTROLLER Only)
53
Indoor Unit Graph Screen (TOUCH SCREEN CONTROLLER Only)
54
Displaying the Indoor Unit Graph Screen
54
Displaying the Indoor Unit Graph
55
Displaying the Graphs of Other Indoor Units
56
Displaying Graphs of Other Dates
57
Power Graph Screen (TOUCH SCREEN CONTROLLER Only)
58
Displaying the Power Graph Screen
58
Displaying the Total Power Graph
59
Displaying the System Power Graph
60
Displaying Graphs of Other Dates
61
5 Monitoring/Controlling Using a Computer
62
Log On/Log off
62
Air Conditioner Status List Display
63
Entering Numbers
64
Schedule Detailed Settings Screen Display
65
Changing the Top Level
65
Option Screen Display
66
6 Important Information
67
5
Based on 1 rating
