TOUCH SCREEN CONTROLLER for Air Conditioning Control System Owner's Manual
4-13. Indoor unit graph screen (TOUCH SCREEN CONTROLLER only)
Display graphs for the outdoor temperature, indoor temperature, set temperature, and operating time of the air conditioner you
selected.
When multiple air conditioners are selected, each value is as shown below.
• Operating time: the total value for the selected air conditioner
• Set temperature, indoor temperature, and outdoor temperature: the average value for the selected air conditioner
[1] Displaying the indoor unit graph screen
(1) Tap the Group icon <1> that you want to display as a graph. (More than one can be selected)
(2) Tap the [Indoor unit graph]
<2> of the advanced items for the air conditioner status list.
The Indoor unit graph screen appears.

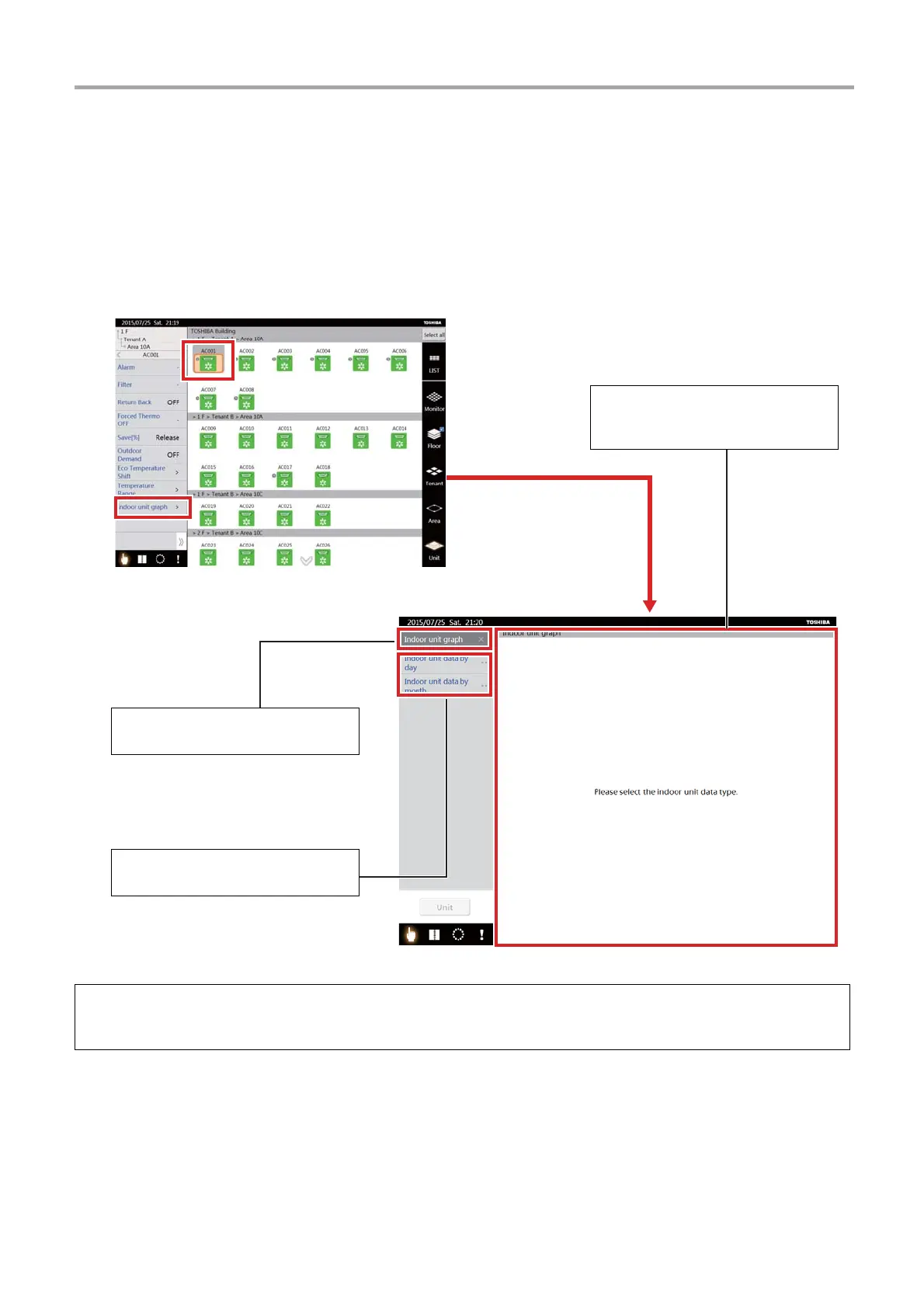

[Control screen]
Display area of the graph
Displays the graph selected in the
graph list.
Title
Returns to the control screen.
Graph list
Displays the list of indoor unit graphs.
[Indoor unit graph screen]
To Next Page
