TOUCH SCREEN CONTROLLER for Air Conditioning Control System Owner's Manual

3 Names and functions of main screens

3-1. Control screen

This screen allows you to set and check the operating status of the air conditioners.

NOTE

Screensaver

If the screen is not touched for a long time (about 10 minutes), the LCD's backlight turns off.

If the screen is touched, the LCD's backlight turns on again.

Air conditioner status list

Shows the name of the level of air

conditioners to display and

change status of settings.

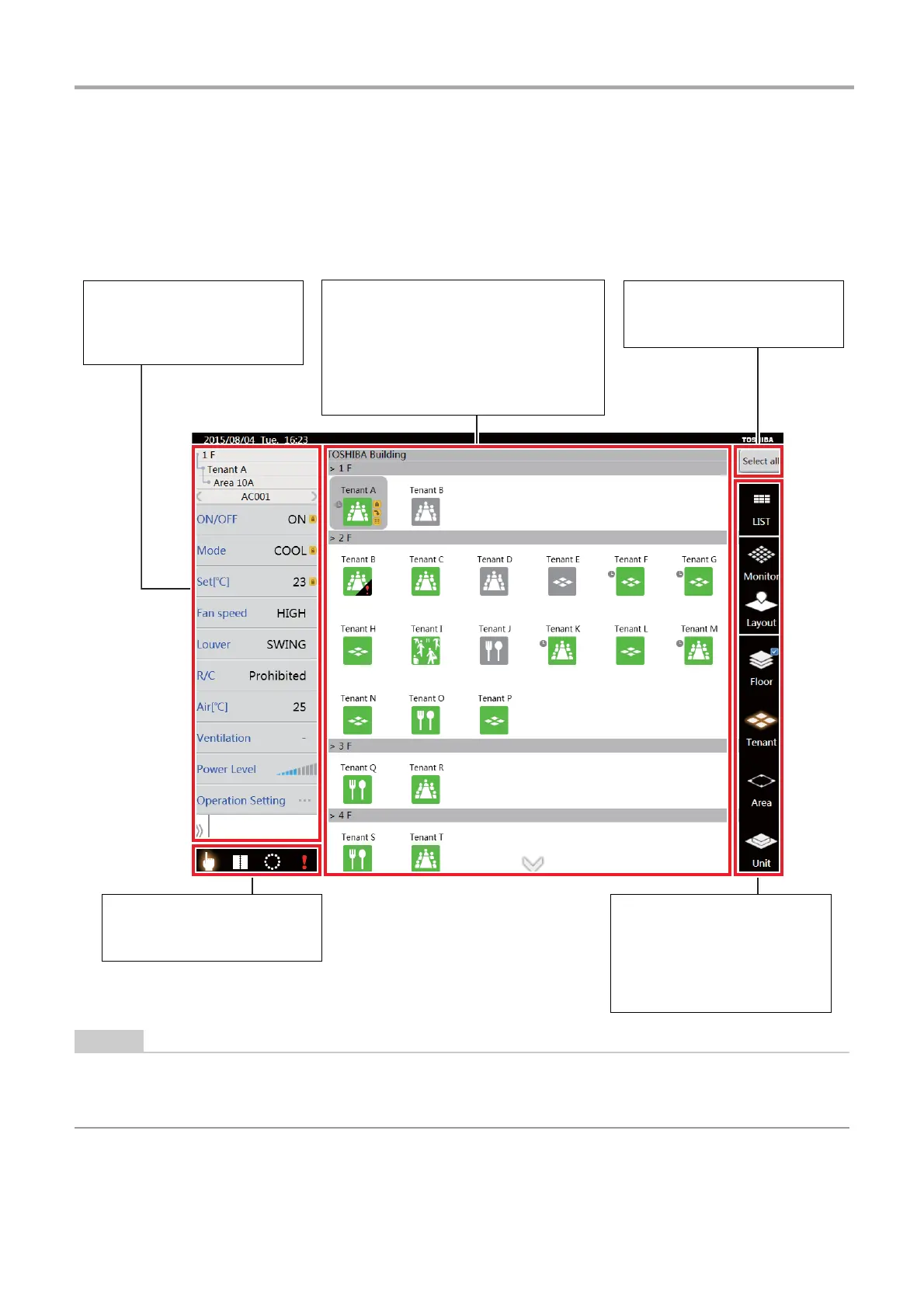

[Control screen]

Group icon area

Shows the group icons of air conditioners

for controlling the air conditioning. They are

displayed in categories from the top level. It

is possible to check the status of air

conditioners by the colour and pattern of the

icons. ->For details, see "3-3.Icon display".

Select all button

Selects all the icons shown in a

group icon area.

Menu icon area

Moves the screen to various

functions.

Display switching icon area

Changes the classification of the

displayed group icons.

* The [Layout] icon only appears

when the layout screen is

enabled.
