4-9. Layout screen (TOUCH SCREEN CONTROLLER only)
You must create a separate image file of layouts. (Paid service)
You can display unit icons on the layout diagram so that you know the position of the air conditioners. Tapping the layout icon
in the display switching icon area opens the layout screen.

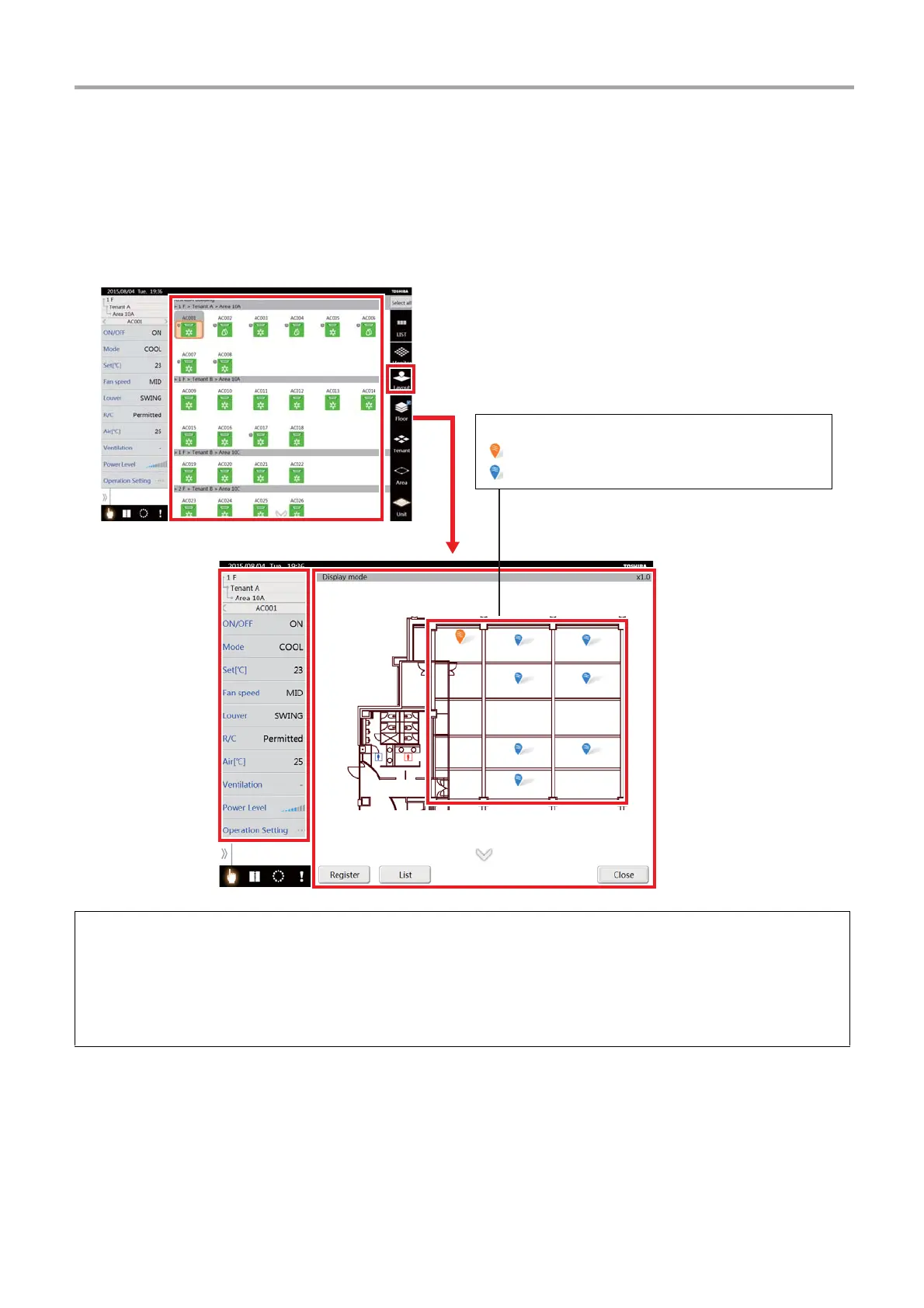

[1] Checking the position of air conditioners
(1) On the control screen, select the group icon <1> for the position you want to confirm.
(2) Tap the [Layout] icon
<2>.
The layout screen <3> in which the selected group icon is installed appears.
The air conditioner appears as a Unit icon
<4>.
* The location where the air conditioner is installed is displayed in the air conditioner status list
<5> that appears on the
layout screen, even when multiple group icons are selected.
<4><4>
<5><5>
<1><1>
<3><3>
<2><2>
[Control screen]
Unit icon display on the layout screen
: Selected
: Not selected
[Layout screen]
To Next Page
