TOUCH SCREEN CONTROLLER for Air Conditioning Control System Owner's Manual
[7-3] Changing to layout registration mode with the layout screen
(1) Tap the [Register] button <1>.
This moves you to the layout registration screen.
(2) Tap "Air conditioner name"
<2>.
The list of air conditioner names is displayed.
(3) From the "List of air conditioner names" <3>, select the name of the air conditioner that you want to register.
(4) Long tap the layout position that you want to register
<4> to display the unit icon as flashing.
(5) Tapping the [Apply] button
<5> lights the unit icon and the air conditioner is registered on the layout diagram.
(6) You can register air conditioners consecutively in the layout diagram by repeating steps 2 through 5.
(7) Tapping the [Display] button
<6> shows the layout screen.
<1><1>
<
2><2>
<3><3>
<
5><5><6><6>
<
4><4>

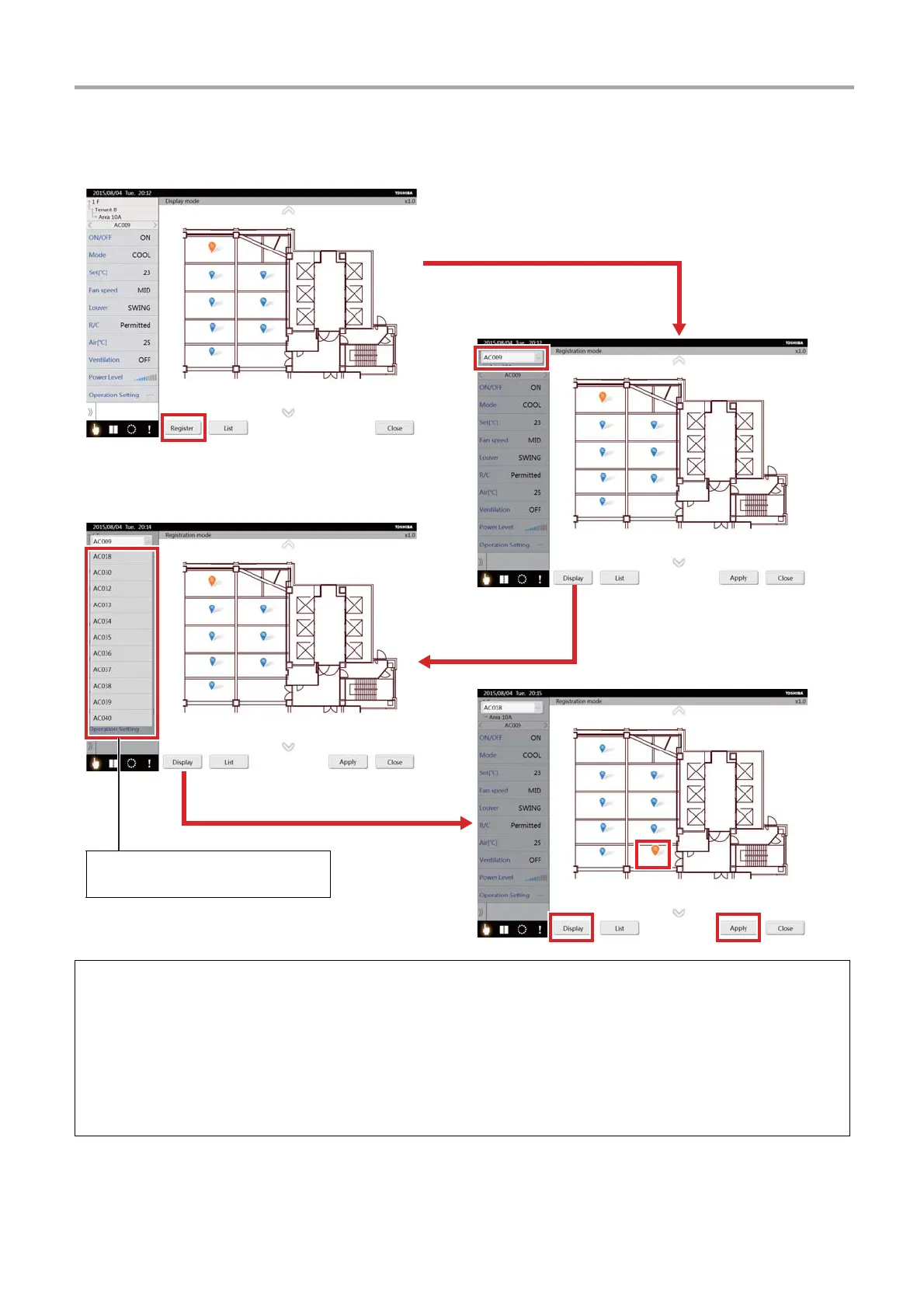

[Layout screen]
[Layout registration
screen]
The names of air conditioners that
are already registered do not appear.
To Next Page
