TOUCH SCREEN CONTROLLER for Air Conditioning Control System Owner's Manual
4-14. Power graph screen (TOUCH SCREEN CONTROLLER only)
Display the power measured by the electricity meter in a graph.

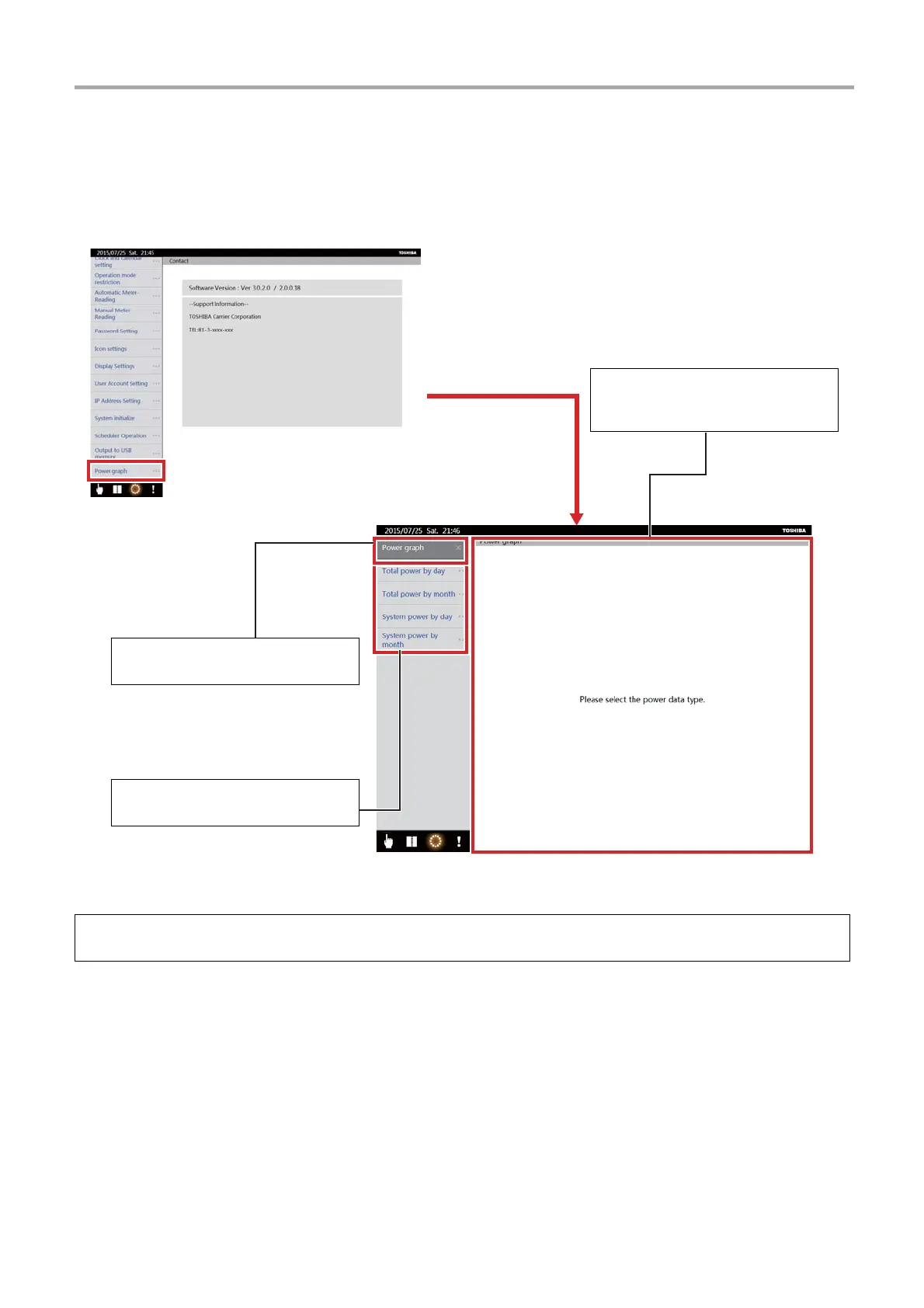

[1] Displaying the power graph screen
Tap [Power graph] <1> in the option screen.
The power graph screen appears.
<1><1>
[Option screen]
Display area of the graph
Displays the graph selected in the
graph list.
Title
Returns to the option screen.
Graph list
Displays the power graph list.
[Power graph screen]
