TOUCH SCREEN CONTROLLER for Air Conditioning Control System Owner's Manual
[6] Moving to other layout diagrams
▼ Move from the layout screen
Tap the arrow button
<1>.
This moves you to the next layout diagram.
* You can move to the next layout diagram by swiping up when the diagram is not zoomed in.
▼ Move from the layout list screen
(1) Tap the [List] button
<2>.
The layout list screen appears.
(2) An arrow button
<3> is displayed if there are more than five screens. Tapping the arrow button <3> will move you to
the next page.
* Swiping up will also move you to the next page.
(3) If there is a layout diagram
<4> that you want to display, tap that diagram.
This moves you to the layout diagram that you tapped.
<1>
<1>
<2>
<2>
<3>
<3>
<4>
<4>

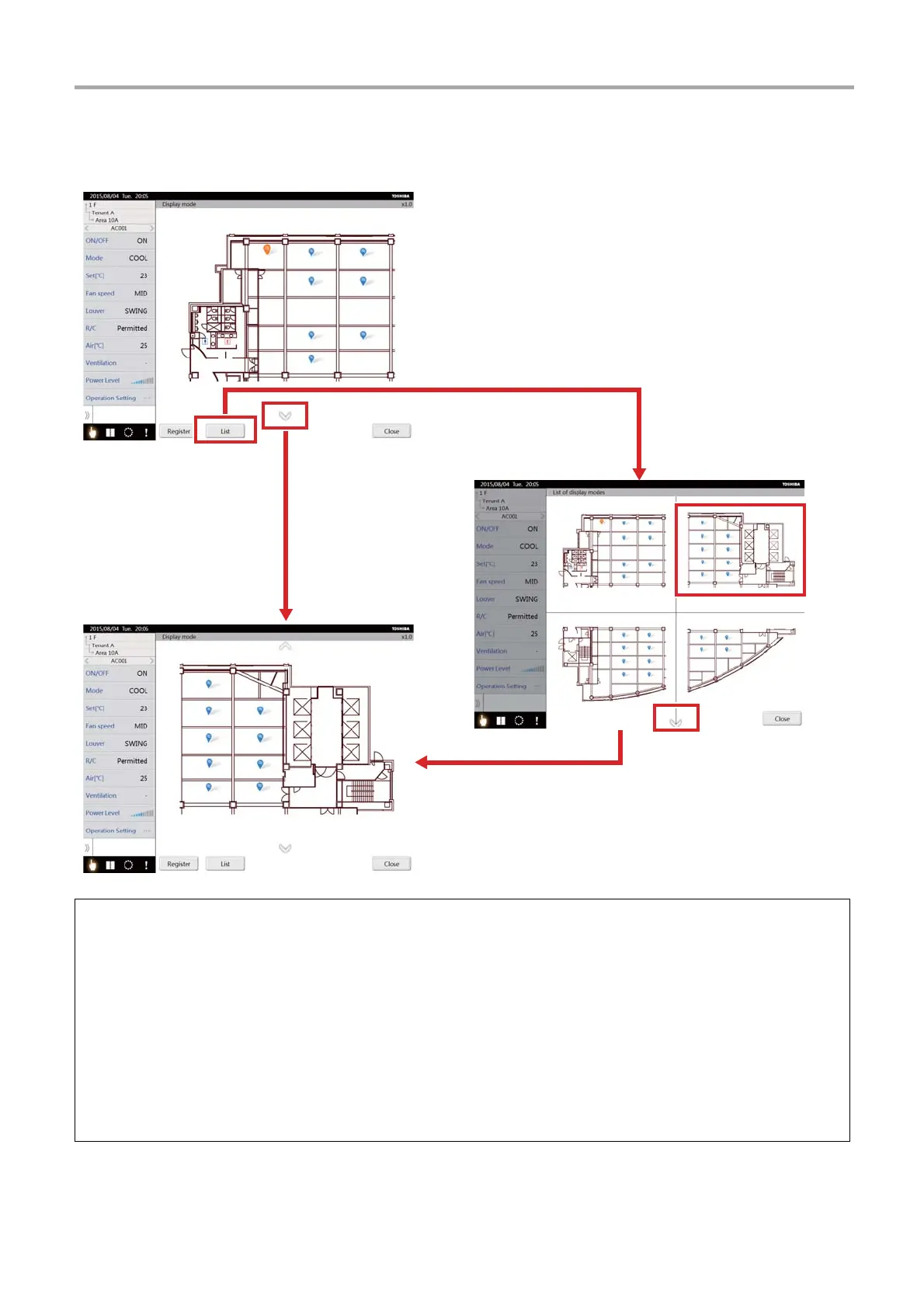

[Layout screen]
[Layout screen]
[Layout list screen]
