1. Easy Setup Flow
44 Network Administration Guide — Setup Flow for Fax Features
This equipment can convert received faxes into Emails and forward them to other Inter-
net Fax devices or client computers using Onramp Gateway transmission.
This equipment can create the ITU-T relay mailbox in which Email addresses are regis-
tered as destinations to achieve the Onramp Gateway transmission. Any ITU-T com-
patible facsimile can send a fax to the ITU-T relay mailbox. This equipment then
forwards received faxes to the Email addresses registered in the ITU-T relay mailbox.
To use this equipment as a Hub Station for the Onramp Gateway transmission, the
Relay Box in which Email addresses are registered must be set up. This equipment, as
the distributor, can send an Email of any faxes received from any ITU-T compatible fac-
simile device.
Setup Procedure
1. Setting up the DNS server and SMTP server.
When this equipment uses the SMTP server to send an Email, you must
configure the DNS server and SMTP server in your network.
 P.78 "Tips of Setting up the DNS and Mail Servers for Internet Fax"
2. Setting up the TCP/IP and the HTTP Network Service to
enable TopAccess.
You should set the TCP/IP and HTTP Network Service from the Touch Panel
Display the first time you use it, to make TopAccess available.

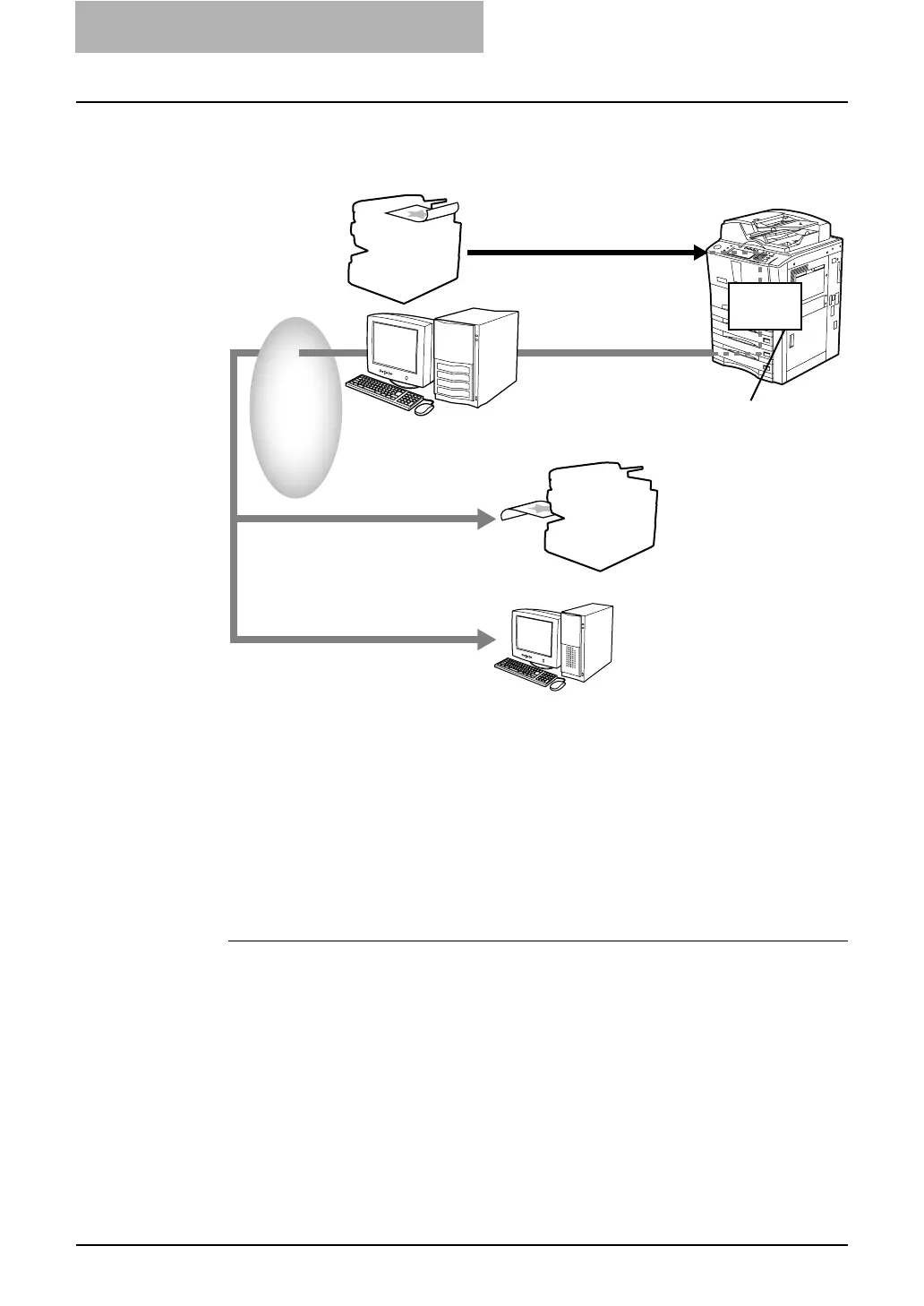

Onramp Gateway
Sending a fax to the Relay Box of
the equipment through the
Public Switched Telephone network
Send a document as
Internet Fax to the Internet
via SMTP server
The Internet Fax device receives the document
from the Internet as an Internet Fax document.
The client computer receives the document
from the Internet as an email document.
Email addresses
are assigned
as destinations
in the Relay Box
Internet
Internet Fax Device
Client Computers
SMTP Server
ITU-T compatible
G3 Facsimile
ITU-T
Relay Box
