4.6 Keyboard 4 Replacement Procedures
QOSMIO F20 Maintenance Manual (960-526) [CONFIDENTIAL] 4-19
3. Remove the following screws fixing the keyboard.
? M2.5?4B FLAT BIND x2

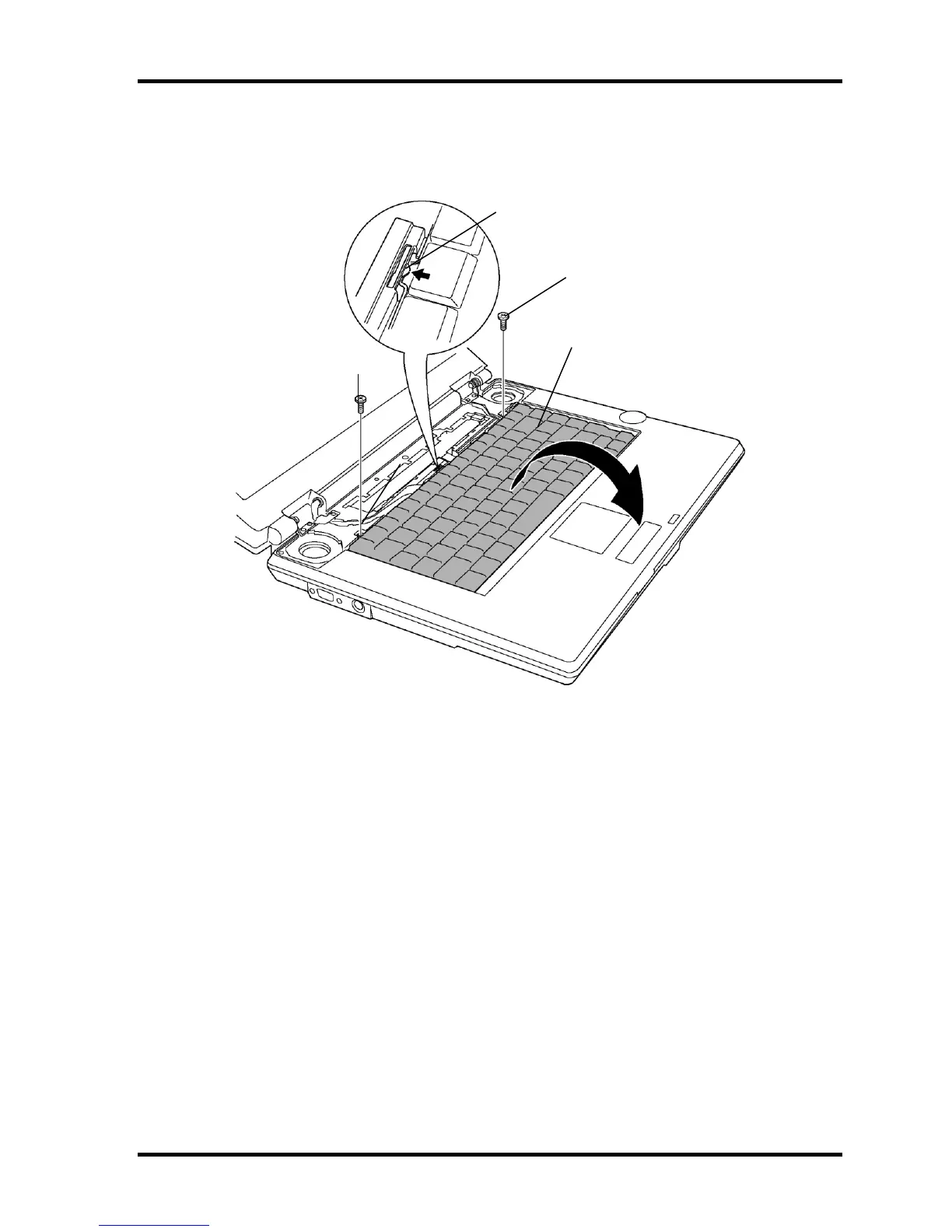

Figure 4-10 Removing the keyboard
4. Push the latch to release the keyboard and lift the upper side of the keyboard and turn
it face down on the palm rest.
Keyboard
M2.5x4B FLAT BIND
M2.5x4B FLAT BIND
Latch
