4 Replacement Procedures 4.20 LCD unit/FL inverter
4-58 [CONFIDENTIAL] QOSMIO F20 Maintenance Manual (960-526)
4. Pull off one insulator from the FL inverter and take out the other one under the LCD
unit.
5. Remove the following screw and the FL inverter.
? M2?6S BIND x1
6. Disconnect the LCD harness and HV harness from the connectors on the FL
inverter.

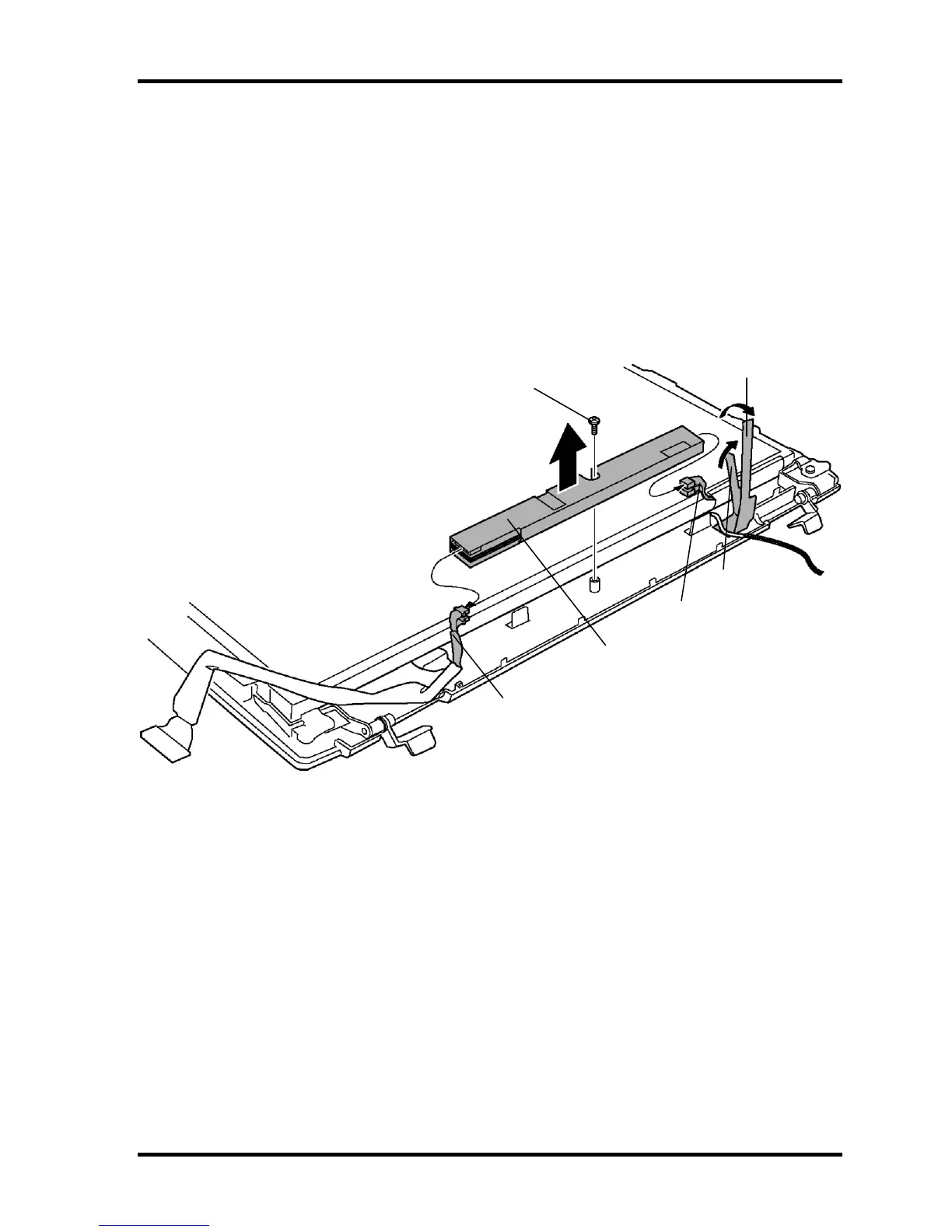

Figure 4-44 Removing the FL inverter
M2x6S BIND
FL inverter
Insulator
Insulator
HV harness
LCD harness
