4.24 Fluorescent lamp 4 Replacement Procedures
QOSMIO F20 Maintenance Manual (960-526) [CONFIDENTIAL] 4-77
5. Remove the panel assembly from the backlight unit.
CAUTION: Handle with care not to damage the COF of S/D and G/D ICs.

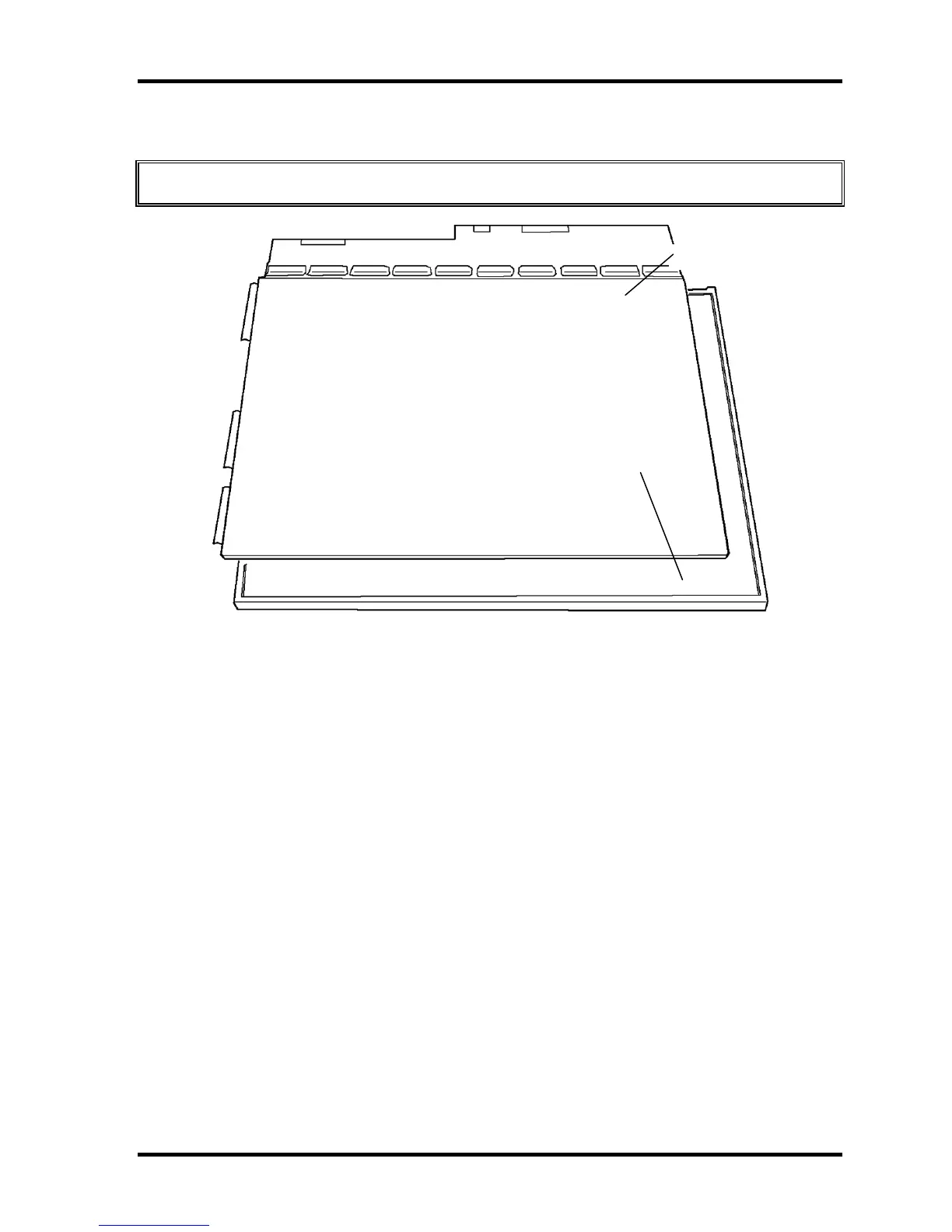

Figure 4-61 Replacing Samsung fluorescent lamp (W-XGA 1-lamp) (5)
Assembling the 15.4-inch 1-lamp (W-XGA) Samsung fluorescent lamp
The assembly procedure is the reverse of the above disassembly procedure.
Panel assembly
Backlight unit
