2.15 Bridge media Slot Troubleshooting 2 Troubleshooting Procedures
2.15 Bridge media Slot Troubleshooting
This section describes how to determine if the computer's Bridge media functions are
functioning properly. Perform the steps below starting with Procedure 1 and continuing with
the other procedures as required.
Procedure 1: Check on Windows OS
Procedure 2: Connector Check and Replacement Check
Procedure 1 Check on Windows OS
Insert a Bridge media (SD memory card/SDIO card/Memory stick/Memory stick Pro/
xD Picture card/Multimedia card) into the slot. Check if the installed Windows recognizes
automatically the Bridge media and the data in the Bridge media can be read.
If the card is not recognized or data are not red, go to Procedure 2.
Procedure 2 Connector Check and Replacement Check

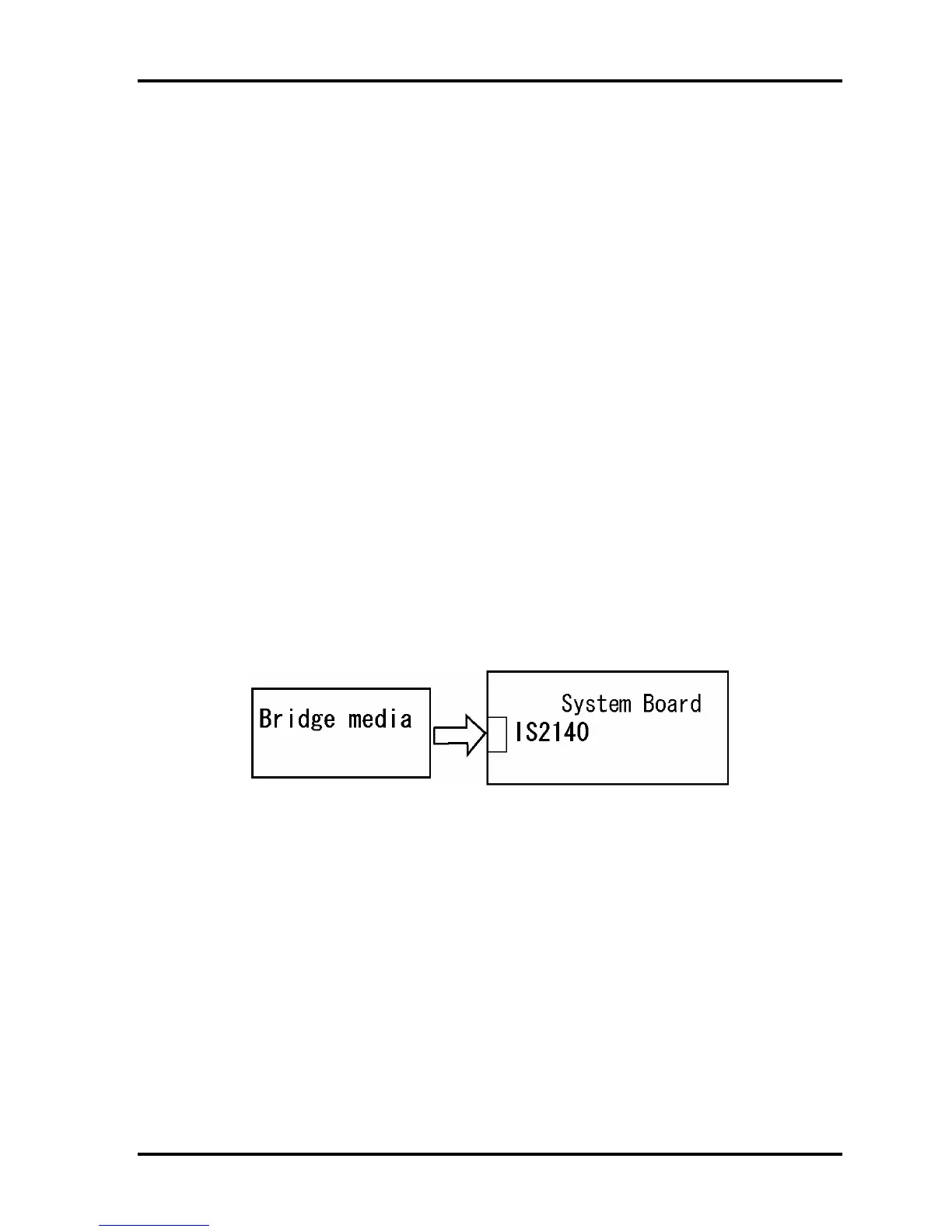

The Bridge media is connected to IS2140 on the system board.
Bridge media supports SD memory card/SDIO card/Memory stick/Memory stick Pro/
xD Picture card/Multimedia card.
Check 1 Bridge media and system board may be disconnected. Make sure the Bridge
media is firmly inserted to IS2140 on the system board. If not, insert it firmly. If
the Bridge media is still not functioning properly, perform Check 2.
Check 2 Bridge media may be faulty. Replace it with a new one following the step in
Chapter 4 Replacement Procedures. If the problem continues, perform Check 3.
Check 3 System board may be faulty. Replace it with a new one following the step in
Chapter 4 Replacement Procedures.
TECRA A9(S5/P5/S200) Maintenance Manual (960-633)[CONFIDENTIAL] 2-57
