4 Replacement Procedures 4.23 HDD cable/LAN jack/RGB board cable
4.23 HDD cable/LAN jack/RGB board cable
Removing the HDD cable/LAN jack/RGB board cable
To remove the HDD cable/LAN jack/RGB board cable, follow the steps below and refer to
Figure 4-37.
1. Turn over the system board.
2. Peel off the insulator and disconnect the HDD cable from the connector CN1900 on
the system board.
3. Disconnect the LAN jack and RGB board cable from the connector CN4100 and
CN9500 on the system board.
HDD cable
CN1900
Insulator
CN9500
CN4100
RGB board cable
LAN jack

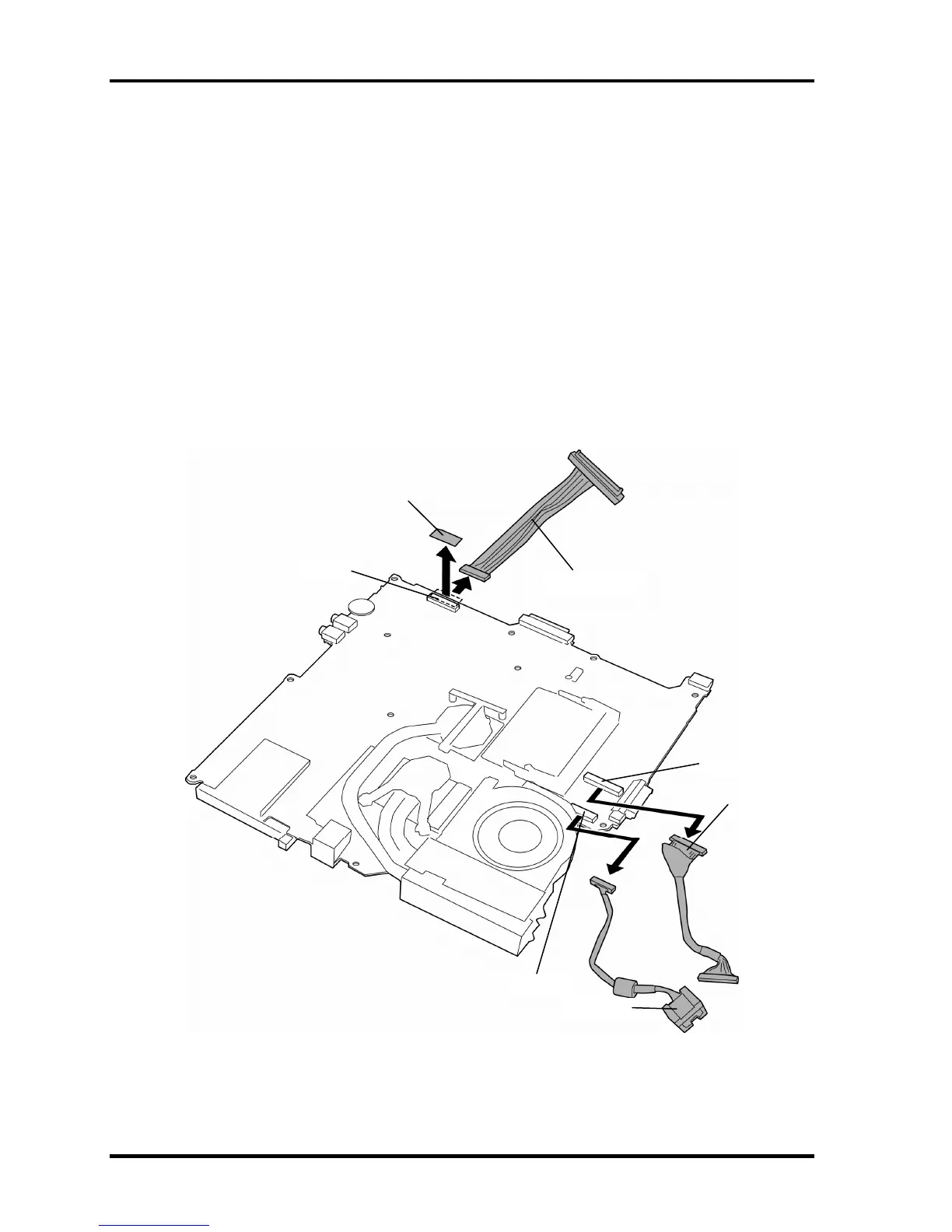

Figure 4-37 Removing the HDD cable/LAN jack/RGB board cable
4-64 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)
