Toshiba TECRA A9 Series Maintenace Manual

4 Replacement Procedures 4.19 RGB board
4.19 RGB board
Removing the RGB board
To remove the RGB board, follow the steps below and refer to Figure 4-30 and 4-31.
1. Peel the insulator and take out the LAN jack from the slot. (Be careful, because the
LAN jack cable is still connected to the connector on the back of the system board.)
LAN jack
Insulator
LAN jack cable

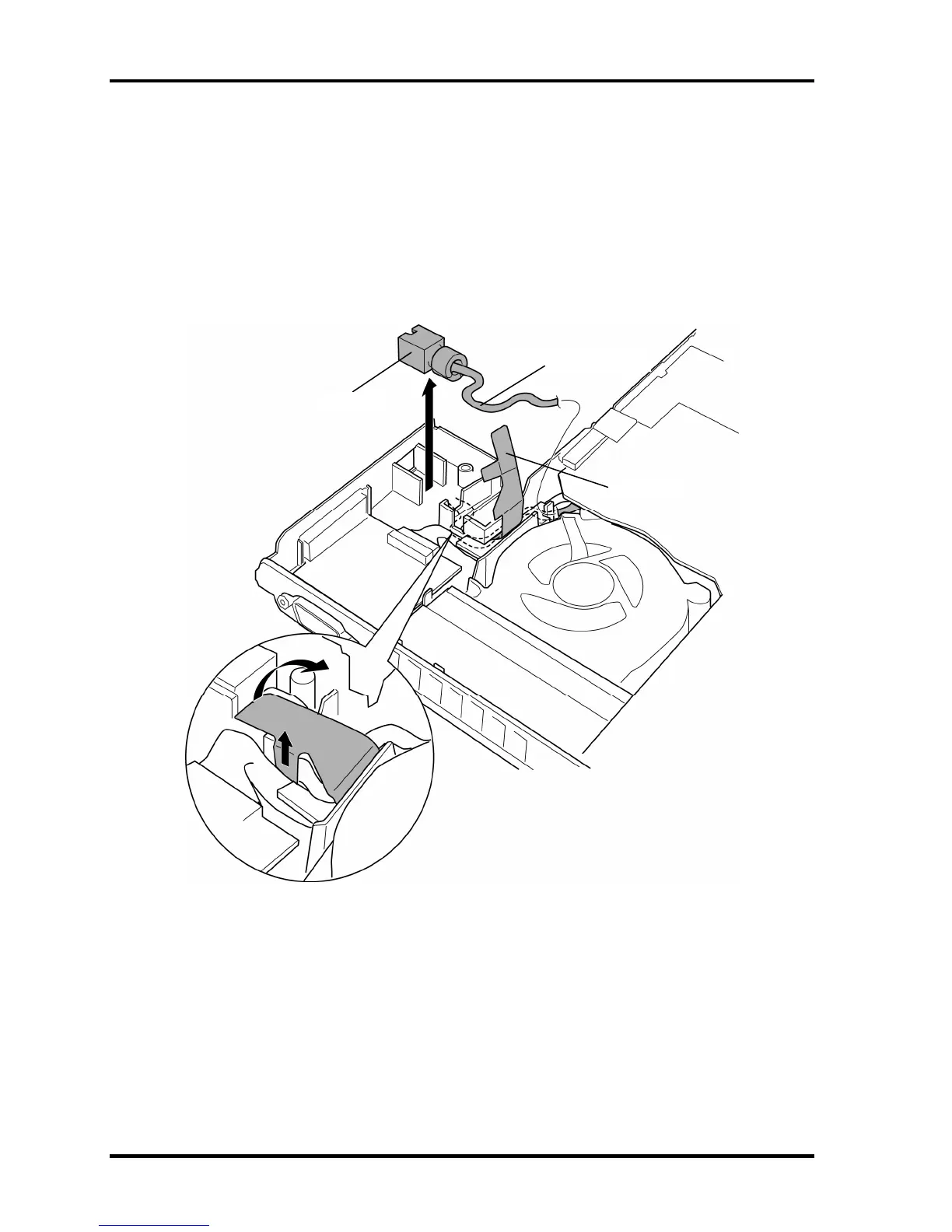

Figure 4-30 Removing the RGB board (1)
4-50 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)
