4 Replacement Procedures 4.10 SW membrane
4.10 SW membrane
Removing the SW membrane
To remove the SW membrane, follow the steps below and refer to Figure 4-14 and 4-15.
1. Lift the switch cover up while pushing the portion shown in the figure below.
Switch cover

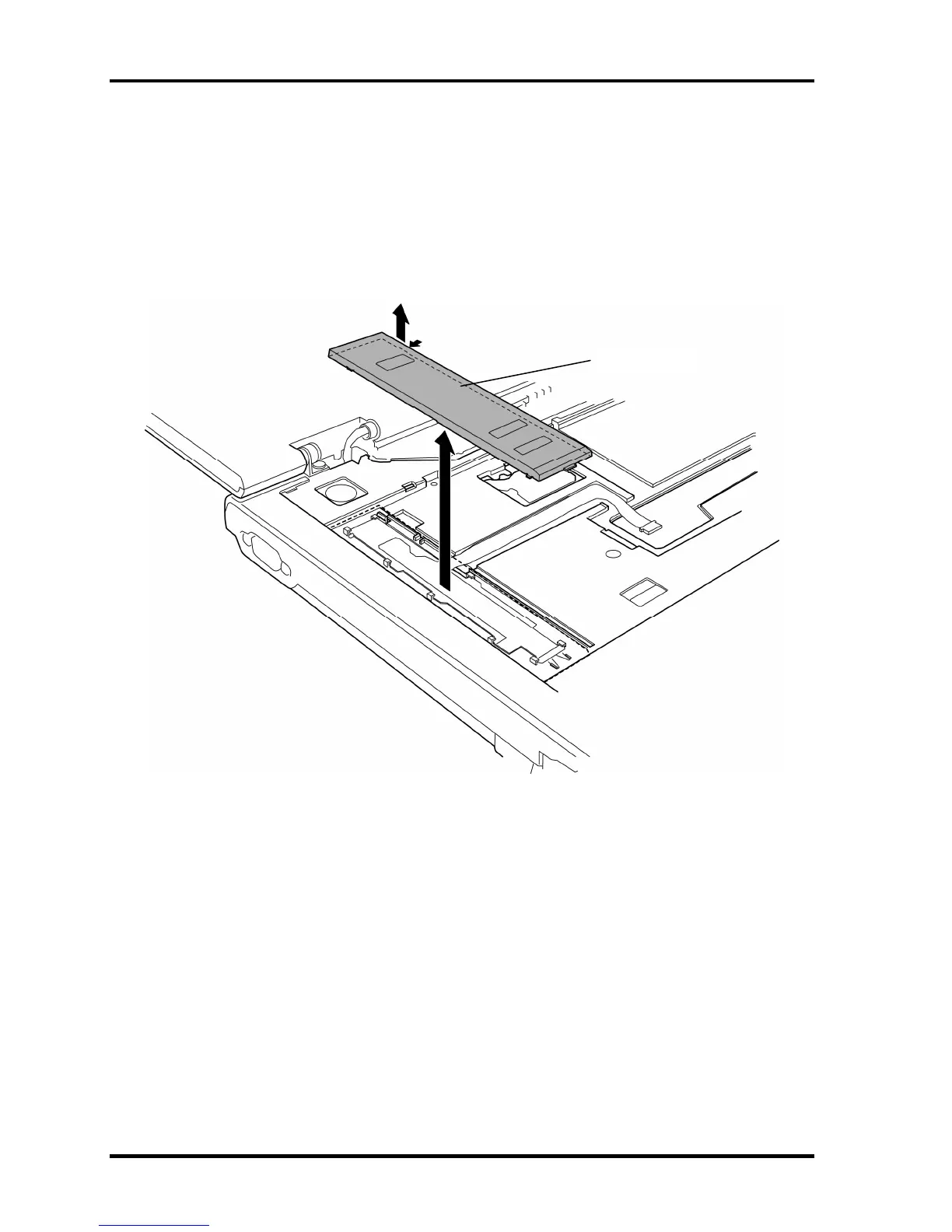

Figure 4-14 Removing the switch cover
4-26 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)
