4.29 LCD cable 4 Replacement Procedures
4.29 LCD cable
Removing the LCD cable
To remove the LCD cable, follow the steps below and refer to Figure 4-51.
1. Pass the LCD cable and the connector through the hole of the cover assembly and
remove the LCD cable from the cover assembly.
LCD cable
Connector
Hole
Hook

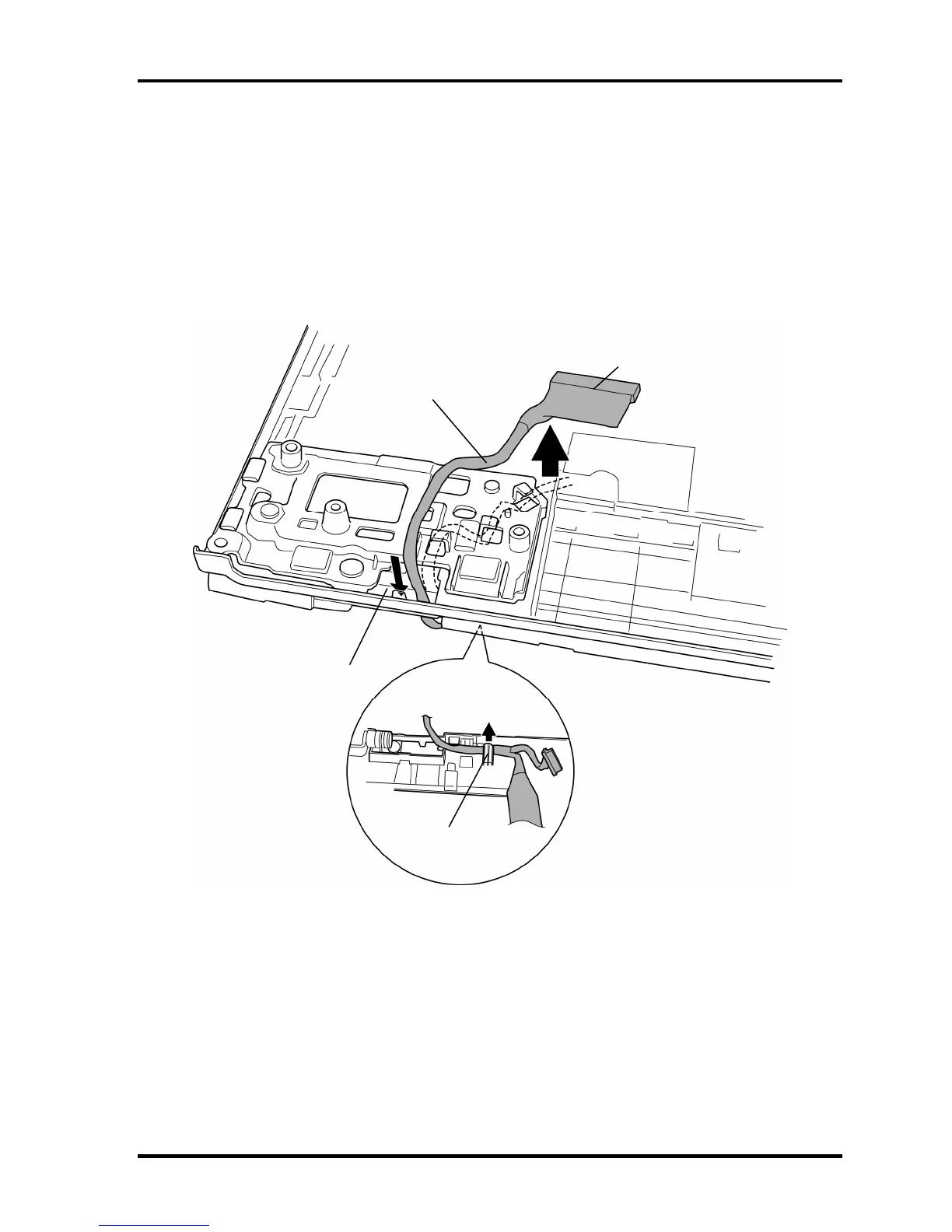

Figure 4-51 Removing the LCD cable
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-91
