4.17 RTC battery 4 Replacement Procedures
Removing the RTC battery
To remove the RTC battery, follow the steps below and refer to Figure 4-28.
1. Peel off the glass tape.
2. Disconnect the RTC battery cable from the connector CN9300 on the system board
and remove the RTC battery.
RTC battery
CN9300
Glass tape
RTC battery cable

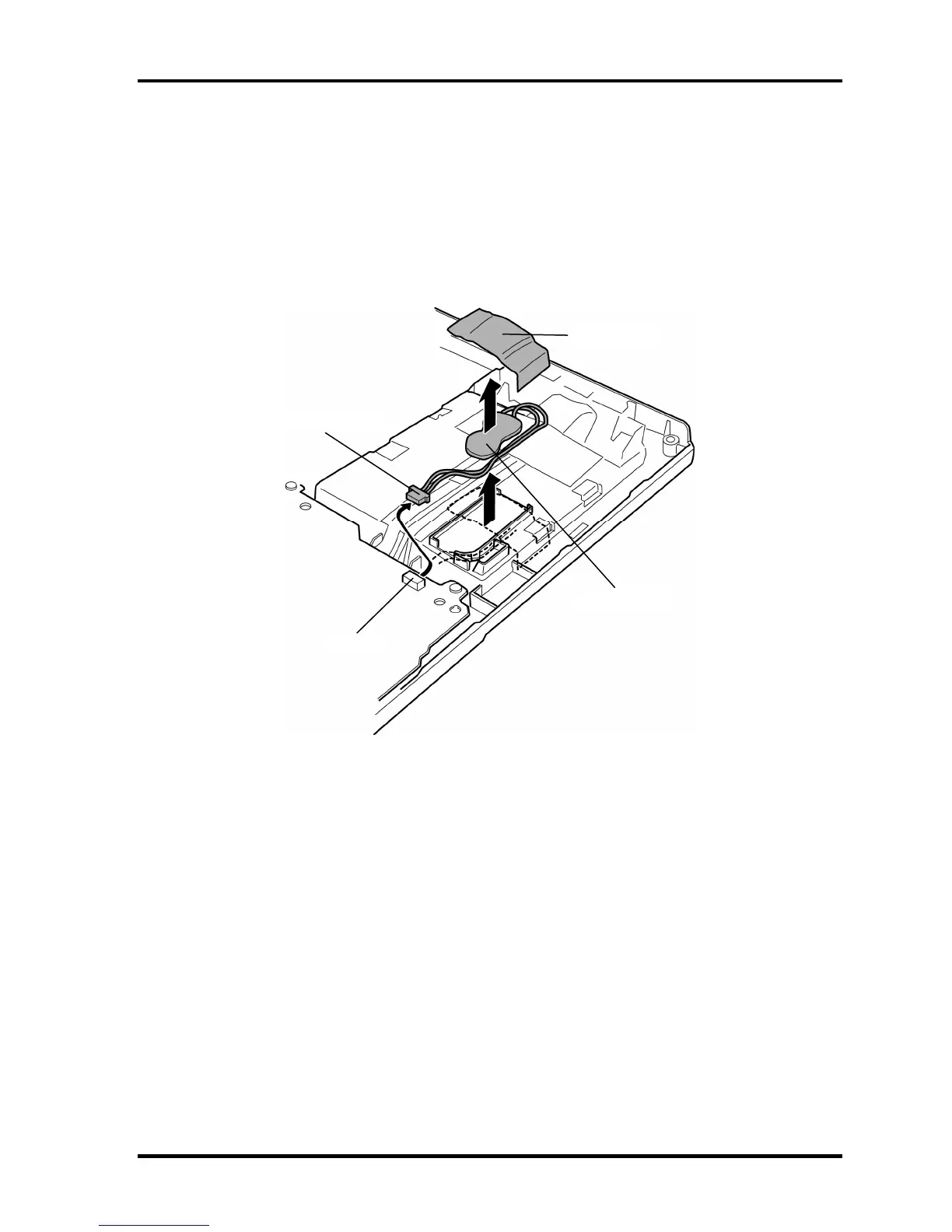

Figure 4-28 Removing the RTC battery
Installing the RTC battery
To install the RTC battery, follow the steps below and refer to Figure 4-28.
1. Connect the RTC battery cable to the connector CN9300 on the system board.
2. Seat the RTC battery in place while arranging the RTC battery cable in the guide
and stick the glass tape on it.
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-47
