Appendix F Wiring diagrams Appendices
4

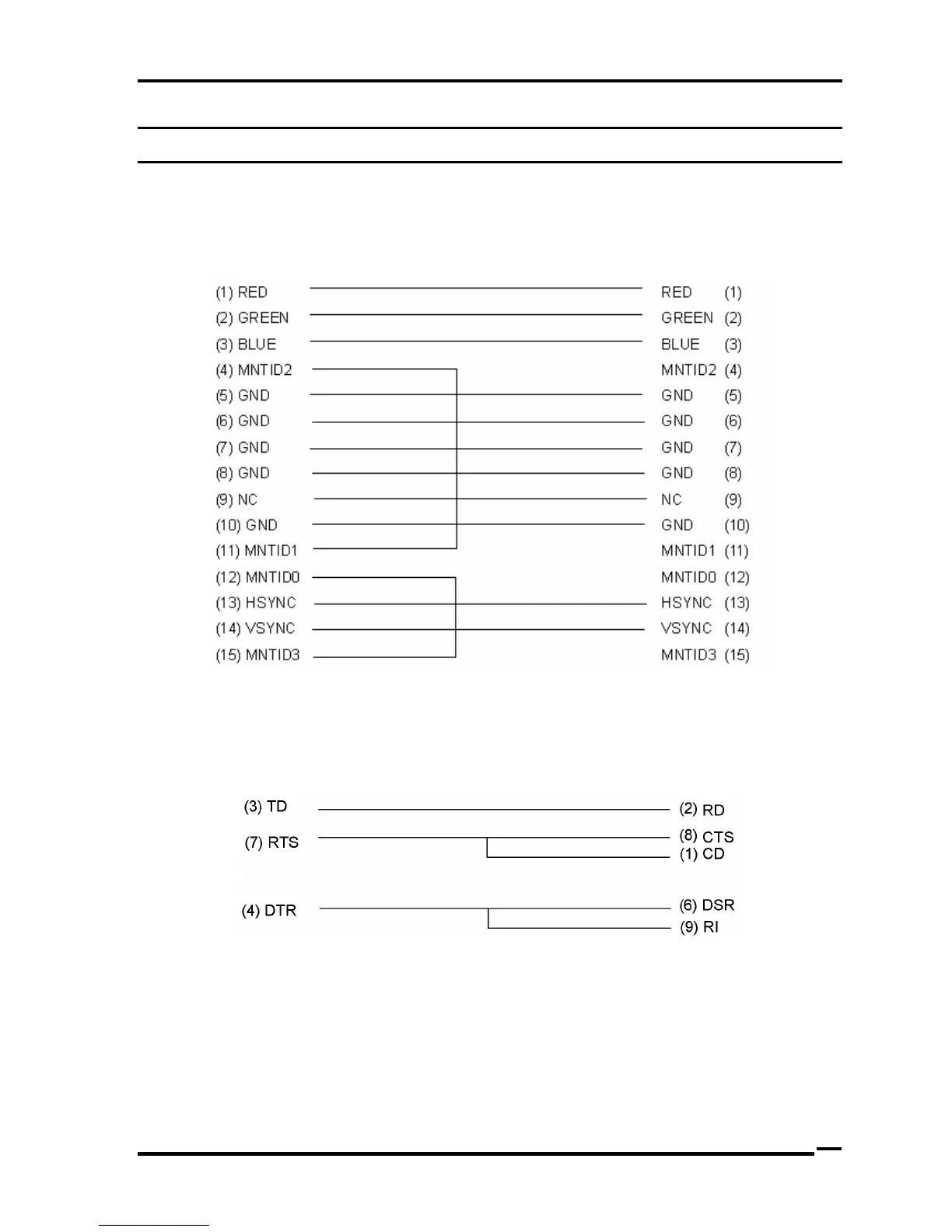

Appendix F Wiring diagrams
F.1 RGB Monitor Loopback Connector
Figure F-1 RGB Monitor Loopback Connector
F.2 RS-232C Loopback Connector
Figure F-2 RS-232C Loopback Connector
TECRA A9(S5/P5/S200) Maintenance Manual (960-633) [CONFIDENTIAL]
F-1
