4 Replacement Procedures 4.32 Fluorescent Lamp
4.32.2 Replacing the 15.4-inch WSXGA+ Samsung Fluorescent Lamp
To replace the 15.4-inch WSXGA+ Samsung fluorescent lamp, follow the steps below and
refer to figures 4-62 to 4-65.
Removing the fluorescent lamp
1. Remove the PCB cover.
CAUTION: Handle with care not to damage COF of S/D and G/D ICs.
PCB cover

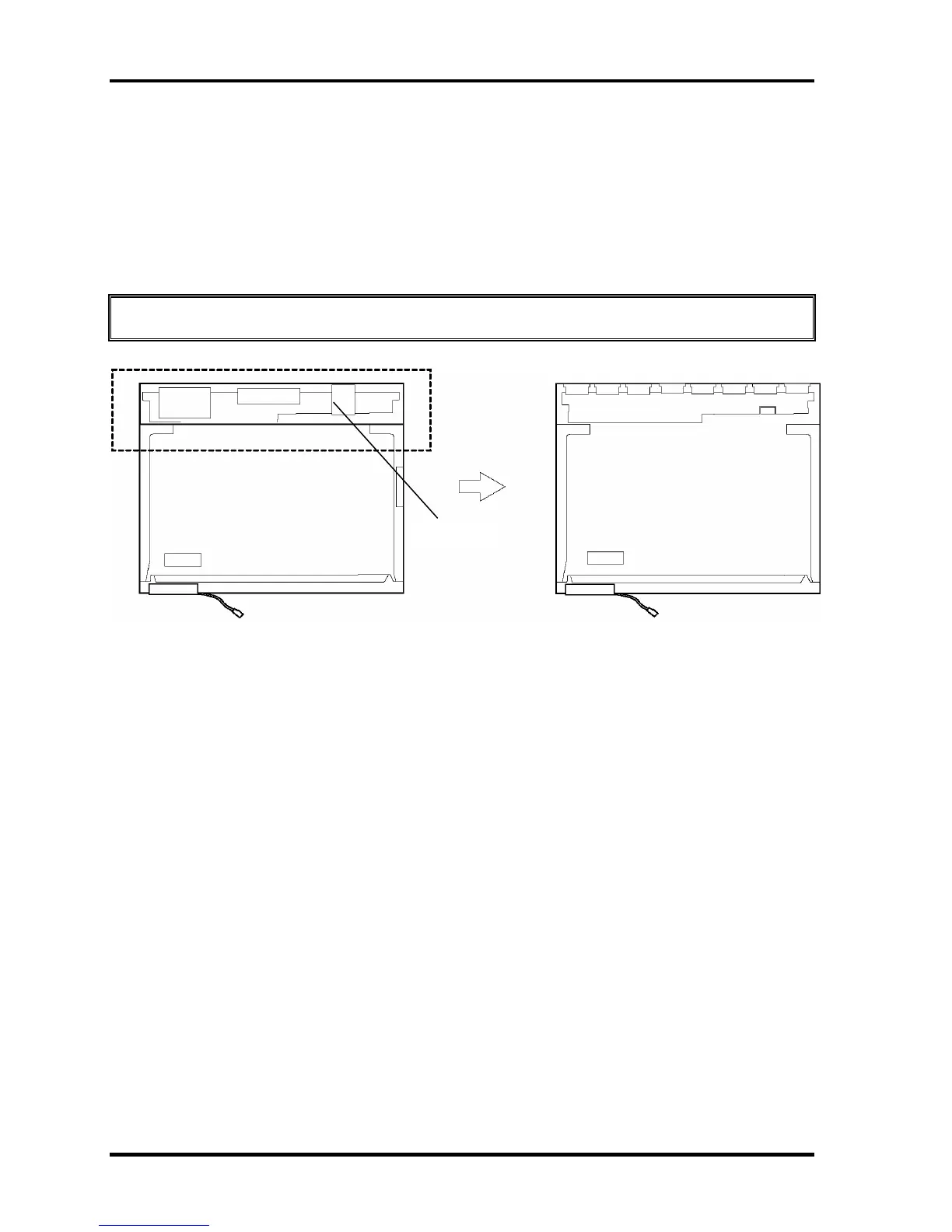

Figure 4-62 Replacing Samsung fluorescent lamp (WSXGA+) (1)
4-104 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)
