4.32 Fluorescent Lamp 4 Replacement Procedures

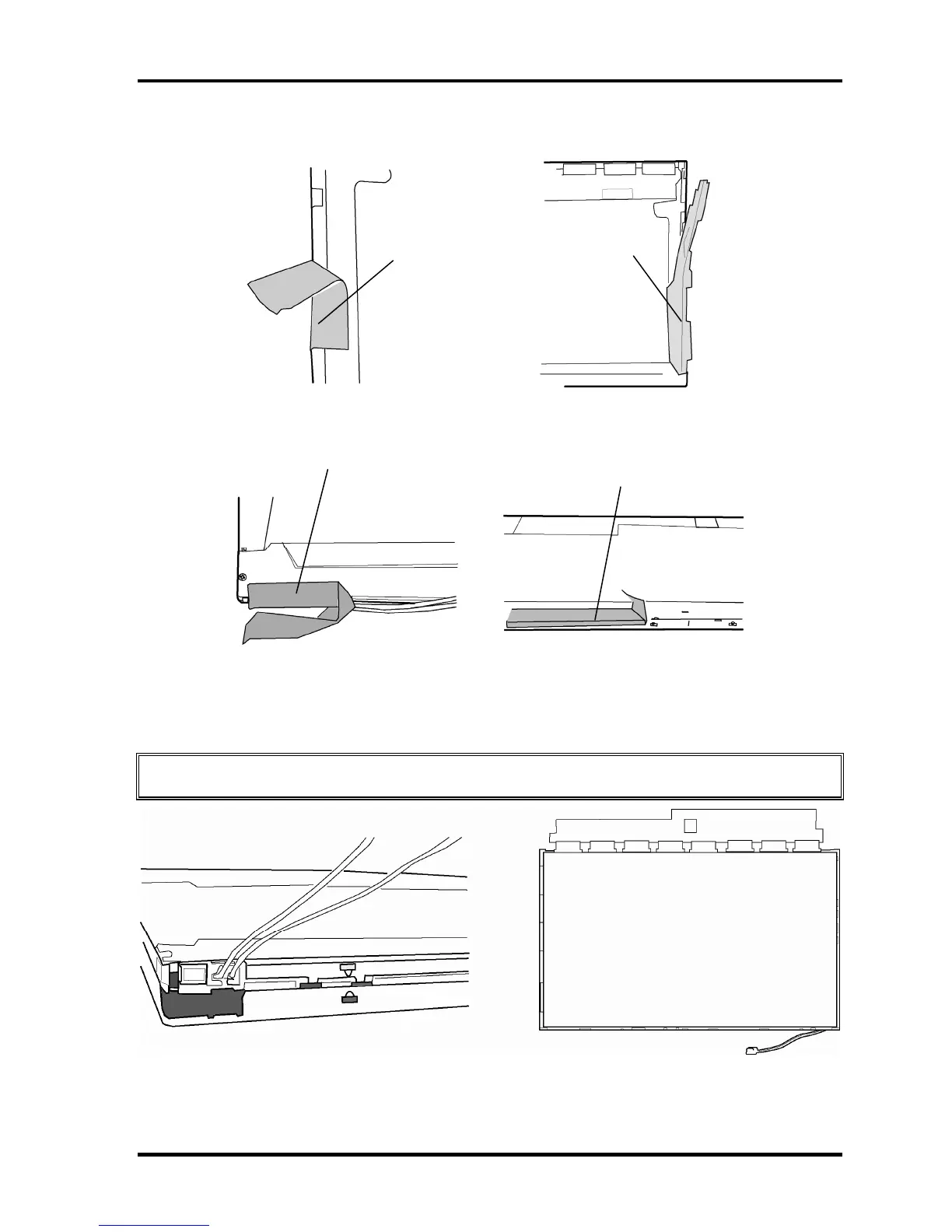

2. Remove the white tapes, lamp-wire tape and bottom Al tape.
White tape (right)
White tape (left)
Lamp-wire tape
Bottom Al tape
Figure 4-63 Replacing Samsung fluorescent lamp (WSXGA+) (2)
3. Separate the top chassis and molded frame.
CAUTION: Remove in the order of bottom hook and side hooks.
Figure 4-64 Replacing Samsung fluorescent lamp (WSXGA+) (3)
