4 Replacement Procedures 4.28 Wireless LAN antenna/Bluetooth antenna
4.28 Wireless LAN antenna/Bluetooth antenna
Removing the Wireless LAN antenna/Bluetooth antenna
To remove the wireless LAN antenna/Bluetooth antenna, follow the steps below and refer to
Figure 4-50.
1. Peel the insulator and peel off the acetate tapes securing the wireless LAN antenna
cables and Bluetooth antenna cable.
2. Remove the wireless LAN antennas (two or three) and Bluetooth antenna from the
display rear cover.
4-80 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)

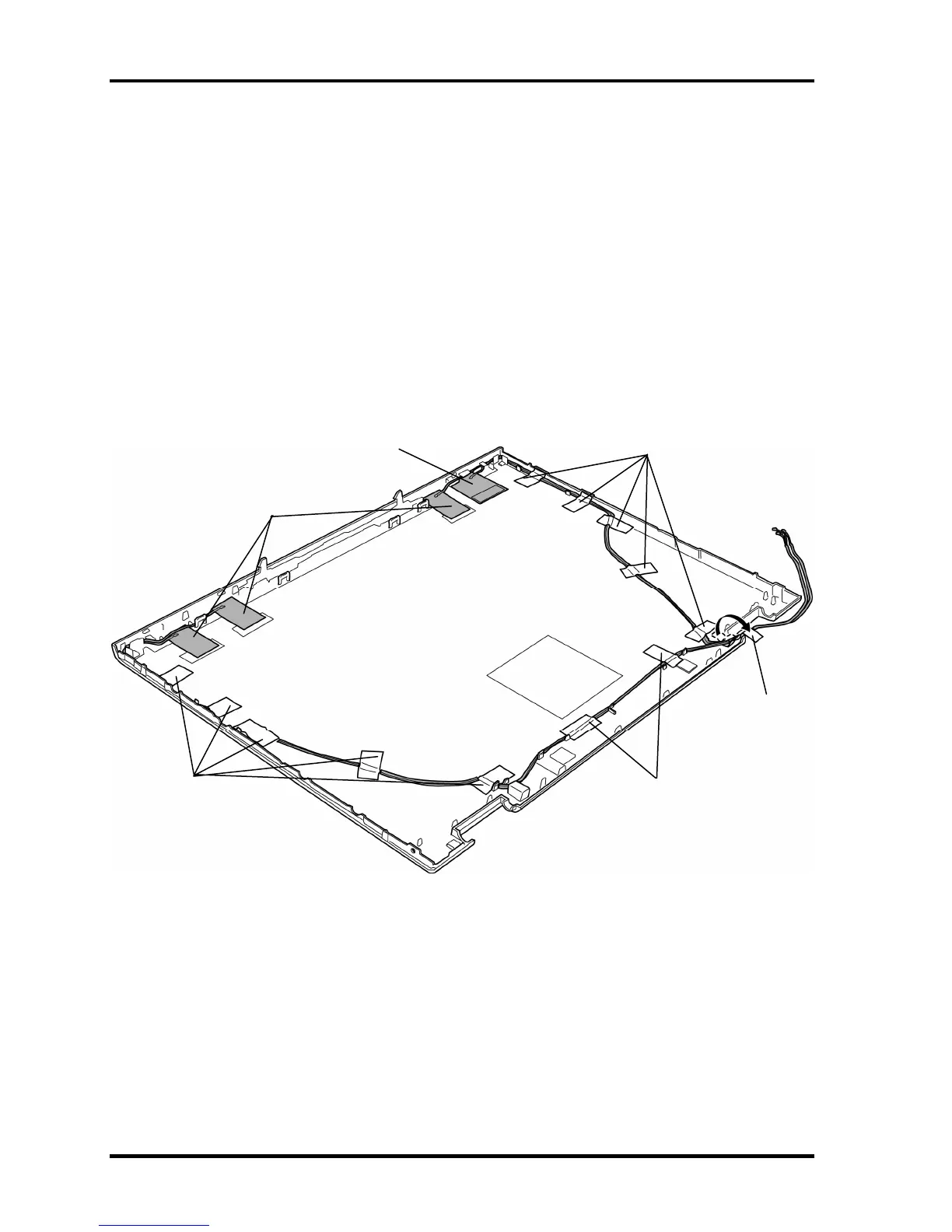

Figure 4-50 Removing the wireless LAN antenna/Bluetooth antenna
A
cetate tape
Wireless LAN antenna
Bluetooth antenna
A
cetate tape
A
cetate tape
Insulator
