4 Replacement Procedures 4.25 PC card slot
4.25 PC card slot
Removing the PC card slot
To remove the PC card slot, follow the steps below and refer to Figure 4-45.
1. Remove the following screws securing the PC card slot.
• M2×3C S-THIN HEAD screw ×2
• M2×8C S-THIN HEAD screw ×2
2. Remove the PC card slot while pulling out the latch to release it.
M2x3C S-THIN HEAD
PC card slot
M2x8C S-THIN HEAD
Latch

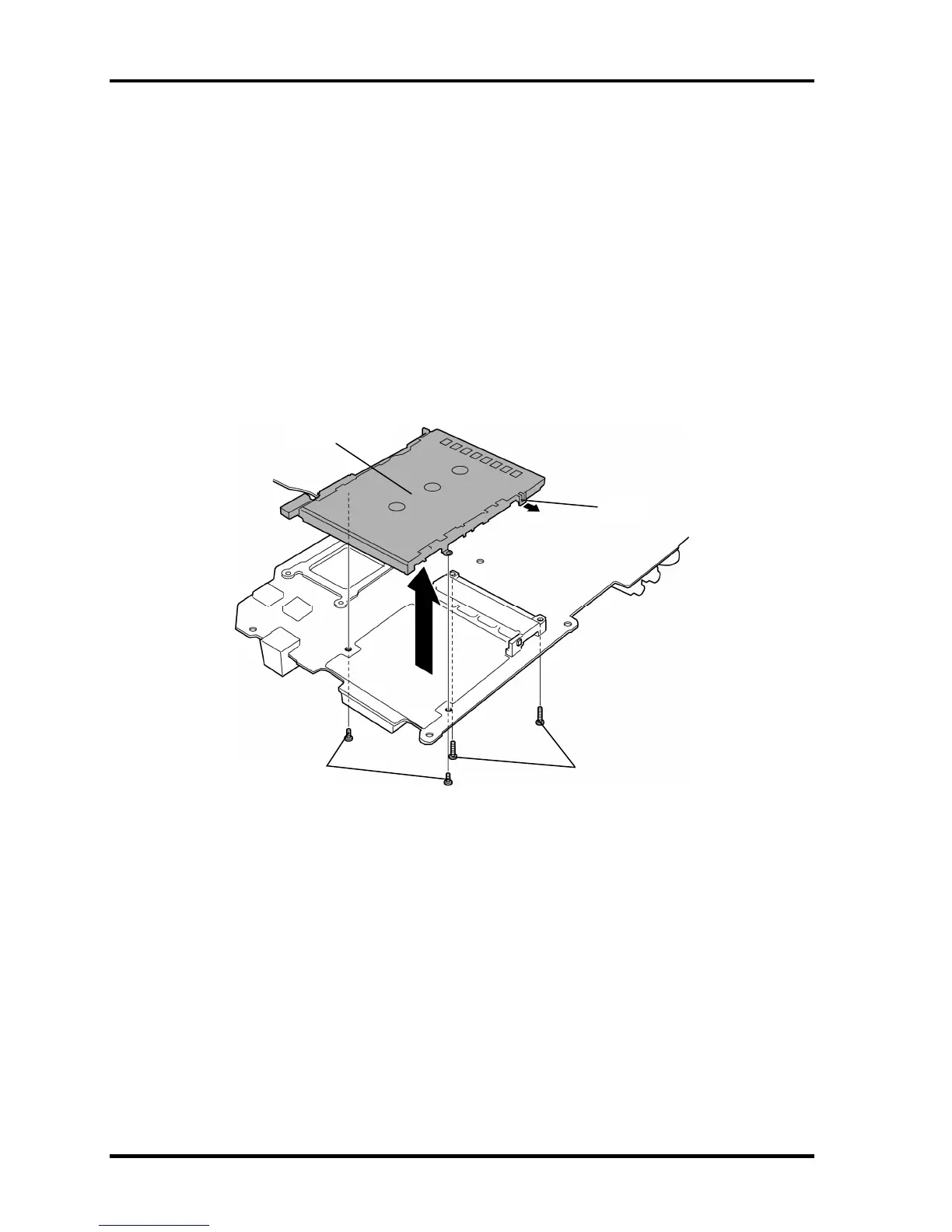

Figure 4-45 Removing the PC card slot
Installing the PC card slot
To install the PC card slot, follow the steps below and refer to Figure 4-45.
1. Install the PC card slot while engaging the latches and secure it with the following
screws.
• M2×3C S-THIN HEAD screw ×2
• M2×8C S-THIN HEAD screw ×2
4-74 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)
