Toshiba TECRA A9 Series Maintenace Manual

4 Replacement Procedures 4.9 Bluetooth module
4.9 Bluetooth module
Removing the Bluetooth module
To remove the Bluetooth module, follow the steps below and refer to Figure 4-13.
1. Disconnect the Bluetooth antenna cable from the Bluetooth module using an
antenna coaxial cable disconnector.
2. Push the hook in the direction in the following figure and remove the Bluetooth
module from the slot.
3. Disconnect the Bluetooth cable from the connector on the Bluetooth module.
4. Peel off the insulator that prevents a waterdrop from entering the computer and
disconnect the Bluetooth cable from the connector CN4400 on the system board.
Bluetooth cable
Bluetooth module
Bluetooth antenna cable
Hook
Insulator
CN4400

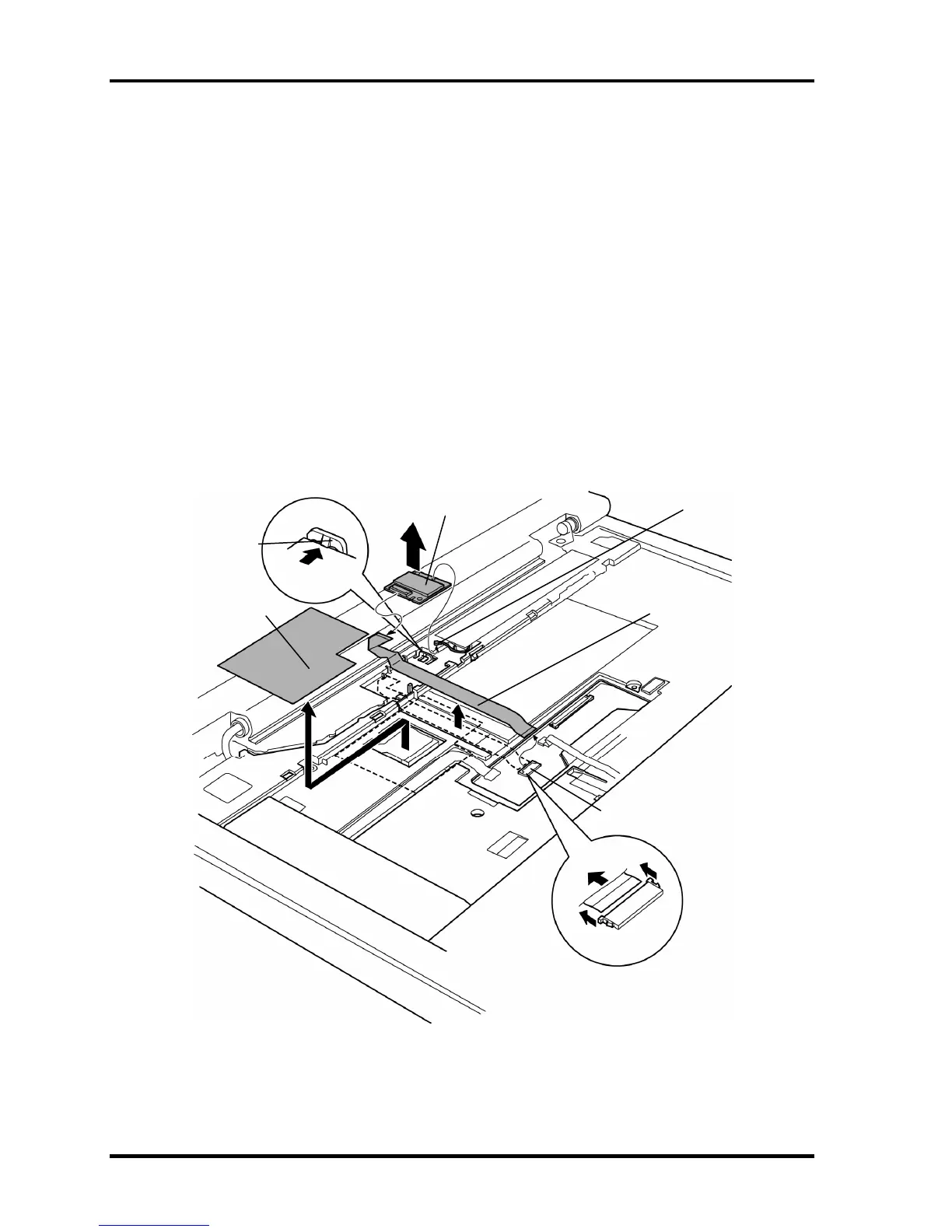

Figure4-13 Removing the Bluetooth module
4-24 [CONFIDENTIAL] TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633)
