4.19 RGB board 4 Replacement Procedures
2. Remove the cushion from the slot.
3. Disconnect the RGB board cable from the connector on the RGB board. (Be careful,
because the RGB board cable is still connected to the connector on the back of the
system board.)
4. Remove the RGB board while pushing the base assembly in the direction of the
arrow in the figure below.
RGB board
RGB board cable
Cushion

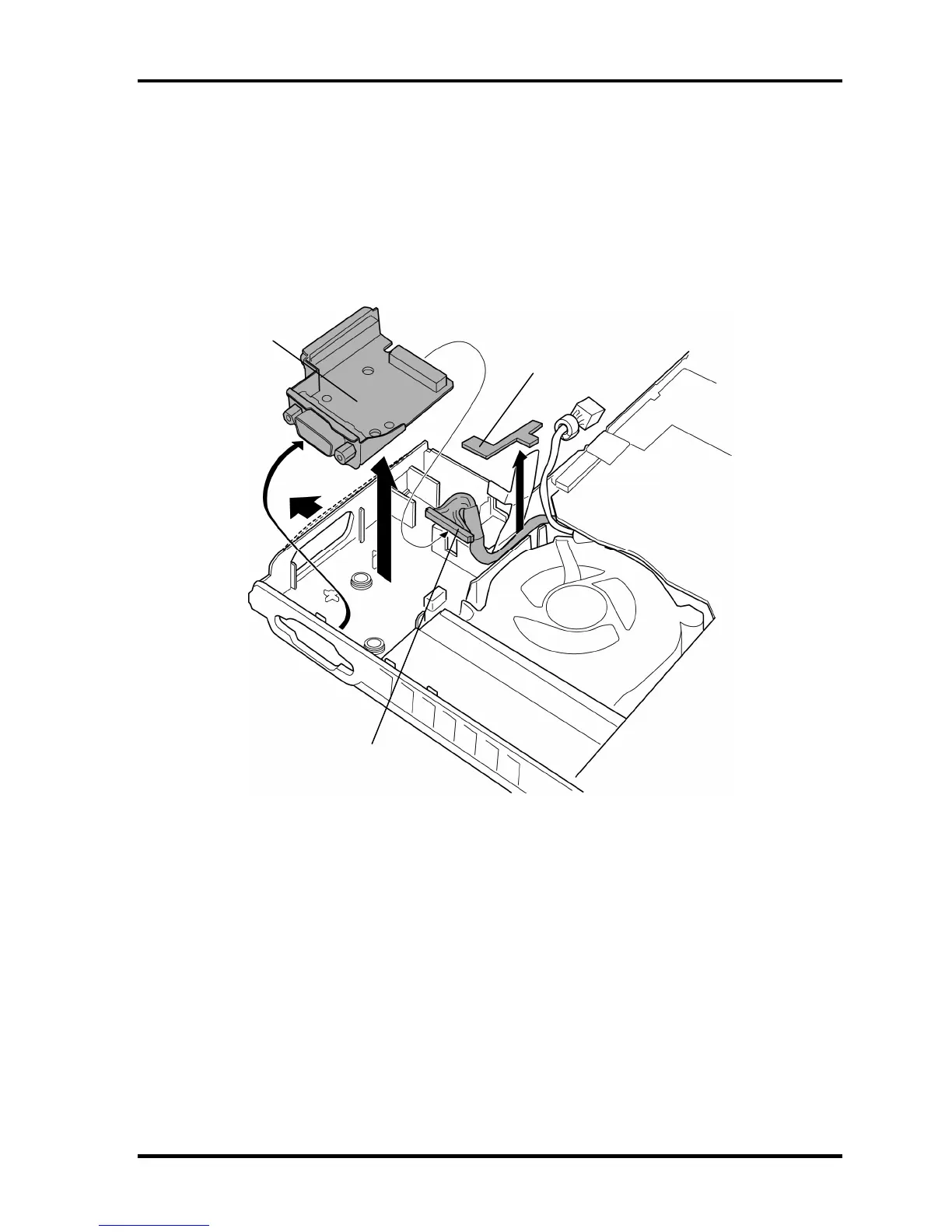

Figure 4-31 Removing the RGB board (2)
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-51
