Toshiba TECRA A9 Series Maintenace Manual

3.11 Printer Test 3 Tests and Diagnostics
Subtest 02 Function
This subtest is for IBM compatible printers, and tests the following functions:
Normal print
Double-width print
Compressed print
Emphasized print
Double-strike print
All characters print

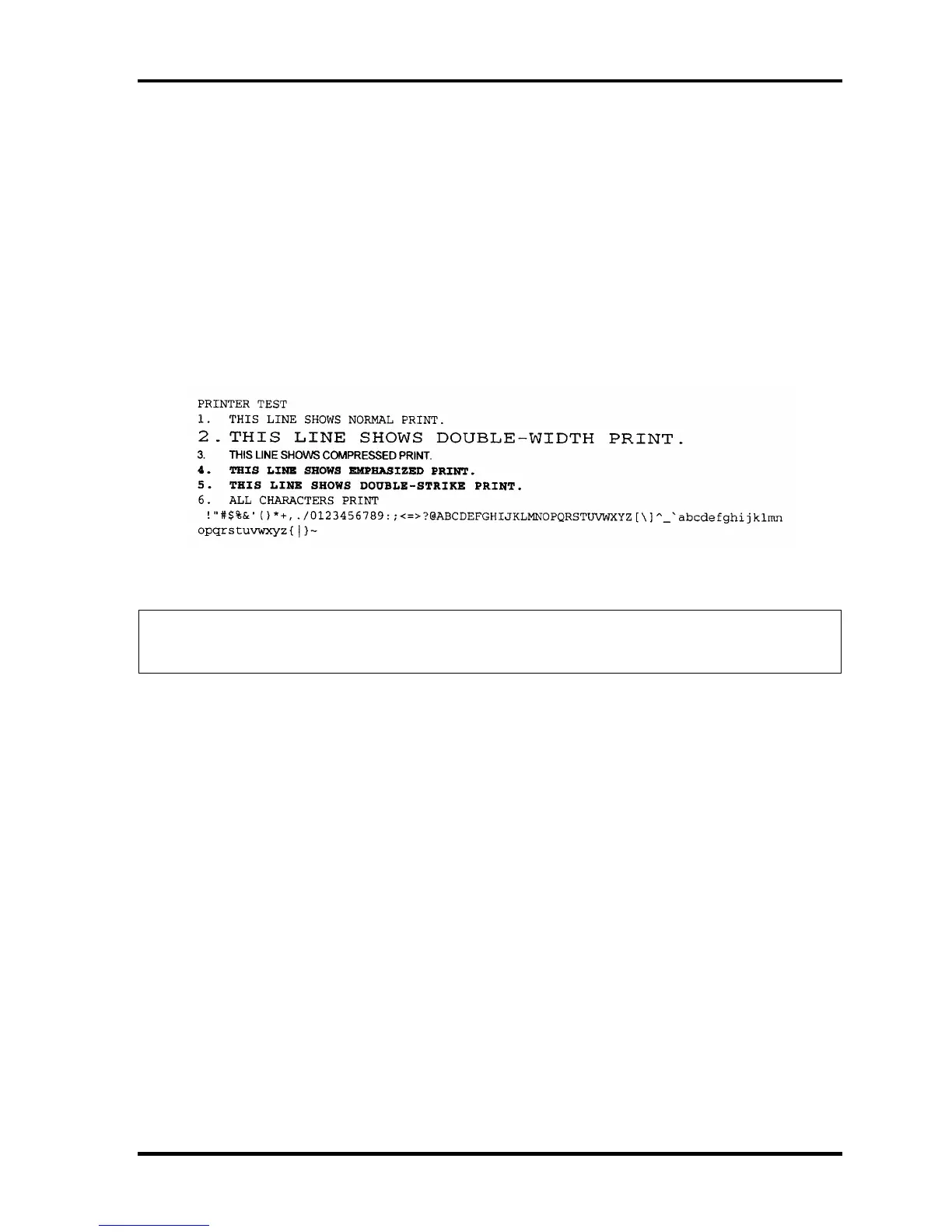

This subtest prints the various print types shown below:
Subtest 03 Wraparound
NOTE: To execute this subtest, a printer wraparound connector must be connected to the
computer’s printer port.
This subtest checks the output and bi-directional modes of the data control
and status lines through the parallel port wraparound connector
(34M741986G01). (Both output and bi-directional modes are tested.)
TECRA A9(S5/P5/S200) Maintenance Manual (960-633) [CONFIDENTIAL] 3-25

Toshiba TECRA A9 Series Specifications

General

Processor	Intel Core 2 Duo
Display	15.4-inch
Display Resolution	1280 x 800 pixels
RAM	Up to 4 GB
Operating System	Windows Vista
Optical Drive	DVD-RW
Wireless	802.11a/g/n
Ports	USB 2.0, VGA, Ethernet, Headphone
