4.8 Keyboard 4 Replacement Procedures
4. Remove the following screws securing the keyboard.
• M2.5×4B FLAT HEAD screw ×2
5. Lift the top edge of the keyboard while releasing the hook and turn the keyboard
face down on the palm rest.
M2.5×4B FLAT HEAD
M2.5×4B FLAT HEAD
Hook
Keyboard

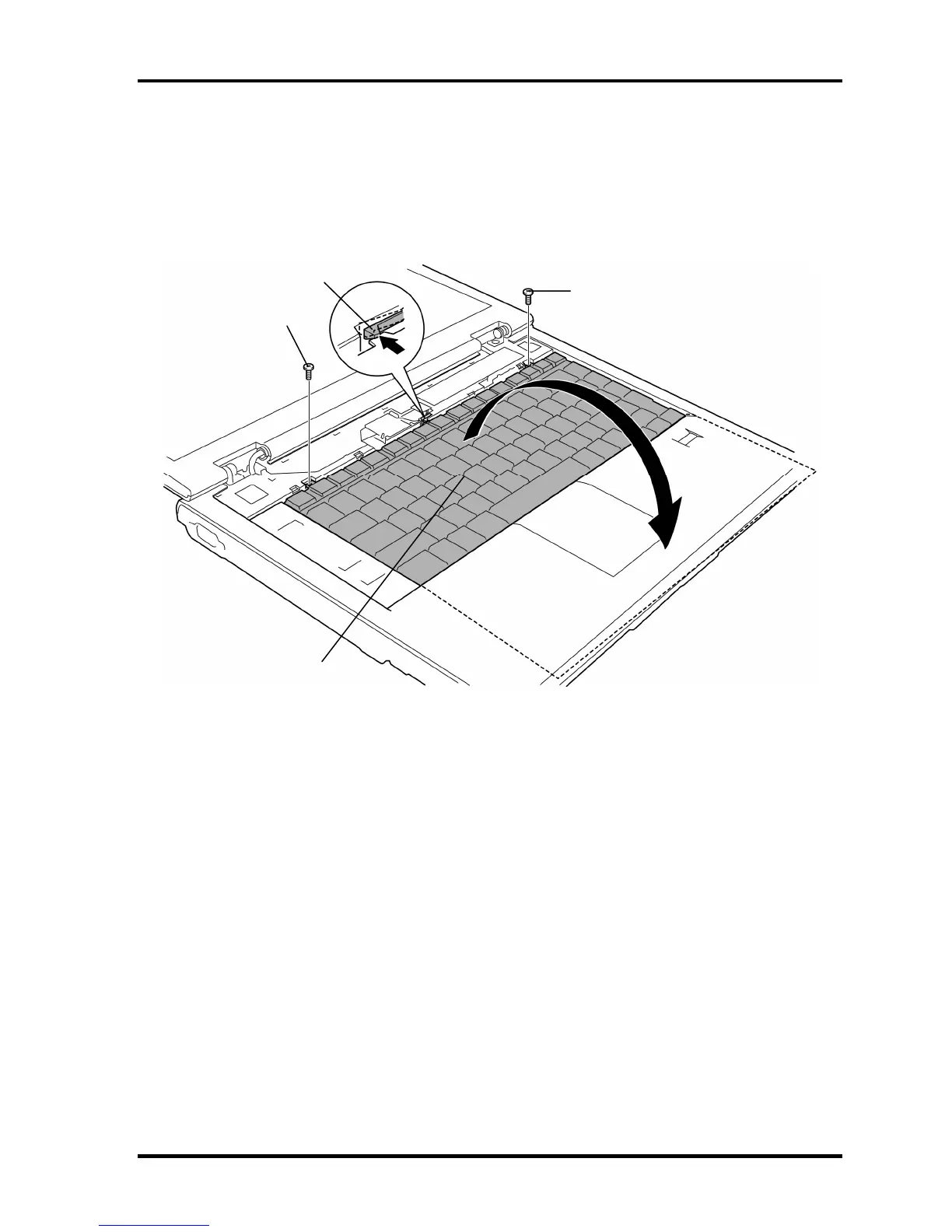

Figure 4-11 Removing the keyboard (1)
TECRA A9/TECRA S5/TECRA P5/Satellite Pro S200 Maintenance Manual (960-633) [CONFIDENTIAL] 4-21
