Terminal block
R/L1 S/L2 T/L3
um
PB PA PO G/E PC
©
POWER
SUPPLY MOTOR
CHARGE
(~ilff# j]/\-)
PA
PO
R/L1 S/l2
T/L3
U/T1
Y/T2 W/T3
~
l2oov CLAssl POWER
SUPPLY
MOTOR
G/E PC
@8
Note) 400V systems are indicated as "400V CLASS"
(RO,SO terminal block)
RO, SO terminal block
for external wiring ~
Terminal block cover
lcAUTIONI
4-M4X8L screws
E6580516
Connected to the main circuit
terminals. Do not connect
external wiring to the lower
terminals.
With terminal cover
When connecting a separate power
supply to the RO and SO terminals,
always remove the shorting bars.
or the inverter may be damaged.
Recommended
RO SO tightening torque:
1.2N•m (11 lbs-in)
CONTROL POWER SUPPLY
200V CLASS
Note) 400V systems are indicated as "400V CLASS"

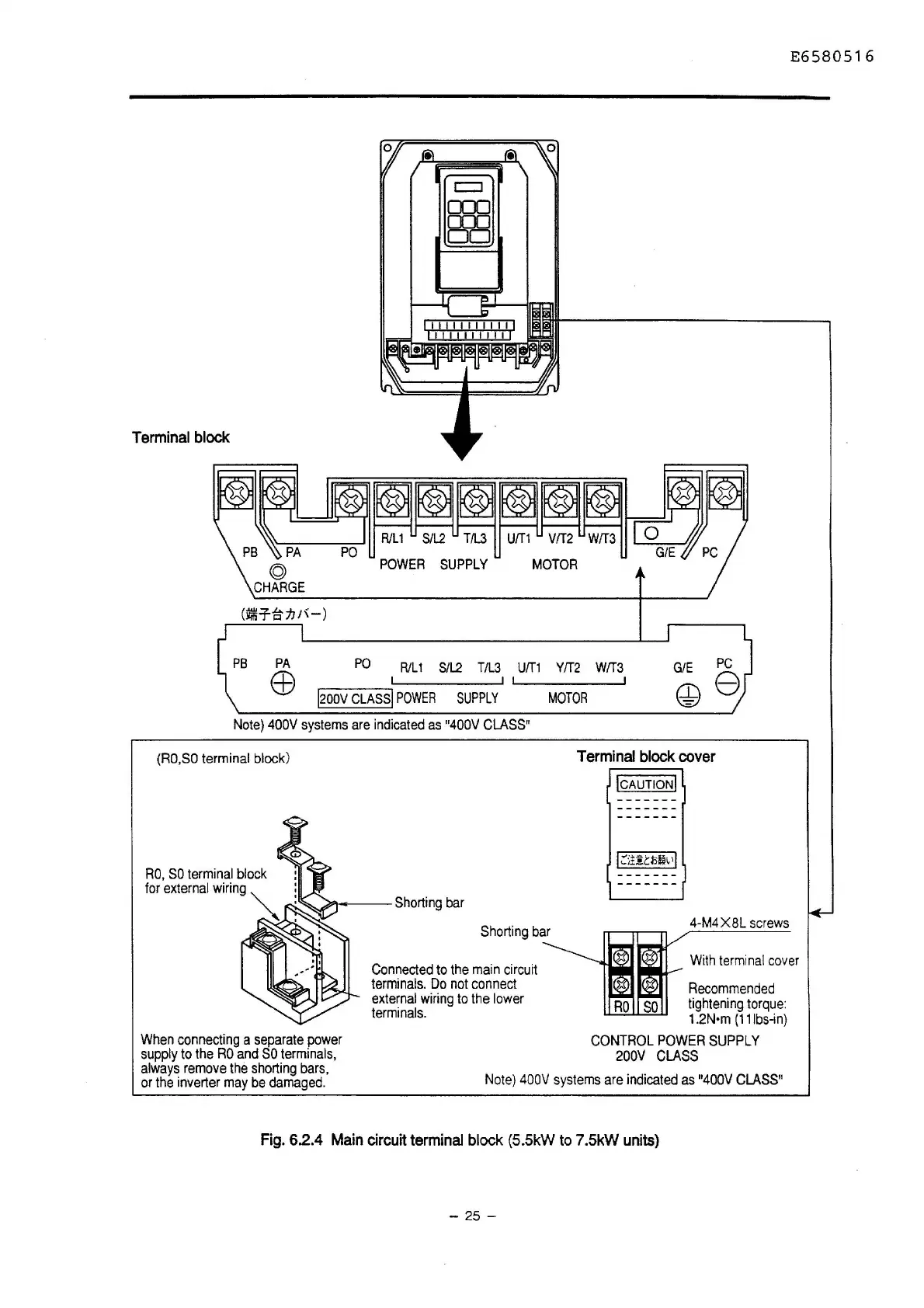

Fig. 6.2.4 Main circuit terminal block (5.SkW to 7.SkW units)
- 25 -
