Toshiba Tosvert VF-A5 User Manual

0 0
Charge lamp
0
M10 screw
50
~~e~EmEm
R S T U V W PA PO
~~~
Main circuit power Motor outputs DCL unit
supply inputs
M5 screw
Note) Shipped with a shorting bar installed
Control circuit terminal
-
M4screw
)(,
RO SO R20S20
'-v-' '-v-'
Control Operation
power power
supply supply
inputs outputs

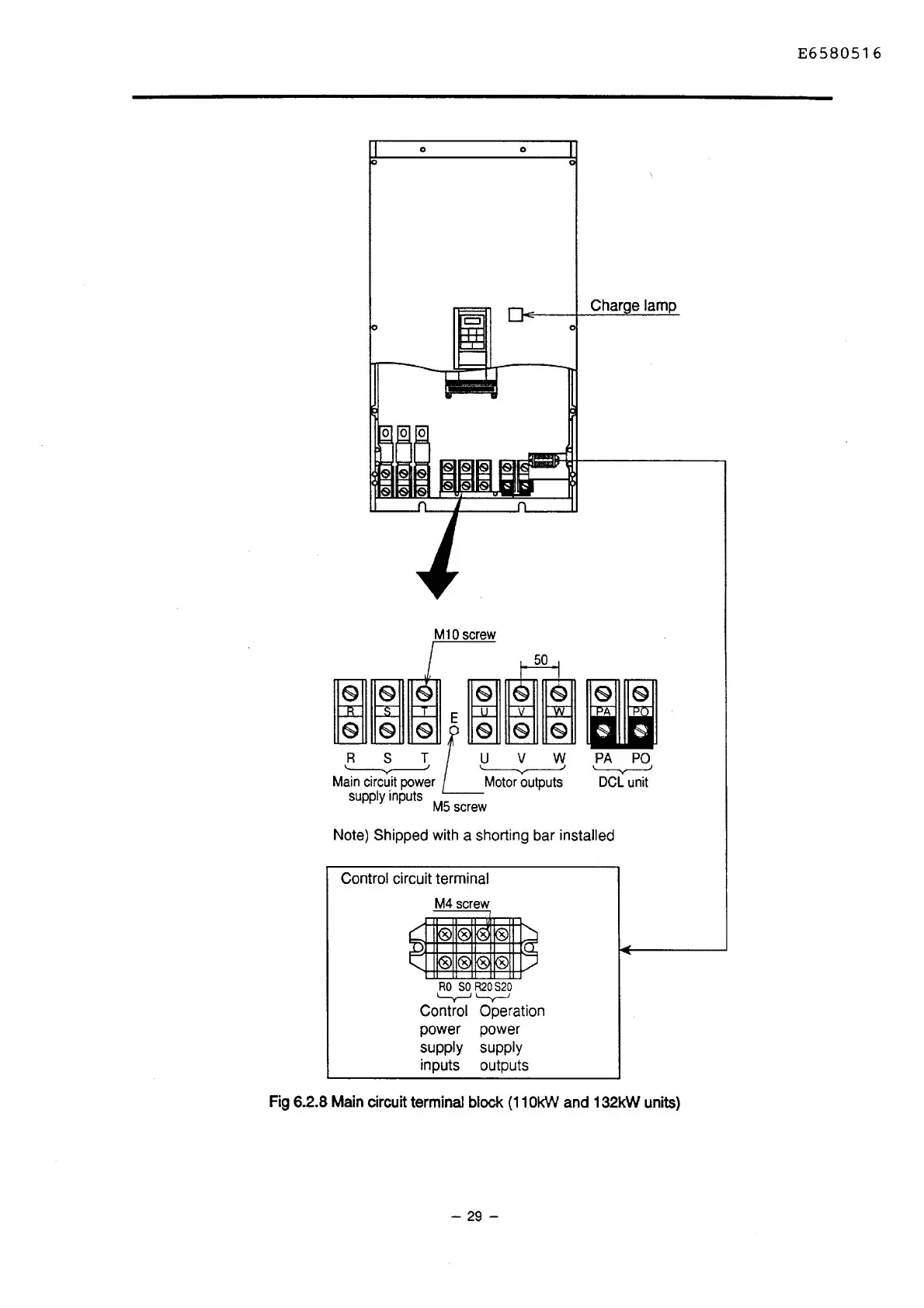

Fig 6.2.8 Main circuit terminal block (11 O't<:N and 132kW units)
- 29 -
E6580516
