Toshiba Tosvert VF-A5 User Manual

Example of 400V class 55kW
unit main circuit terminal block
M8X14Lscrew
(slotted hex bolt)
DCL unit
Braking resistor
PA PC
-----....---
DC bus P-N connections
R
M8X20L screw
(slotted hex bolt)
s
T
Main circuit power supply inputs
M8X14L screw
(slotted hex bolt)
M4X8L screw
u v w
'--v----'
Motor outputs
ROSO R20S20 '---.--'
'---.--' '---.--' GI E
Control Operation
power power
supply supply outputs
inputs

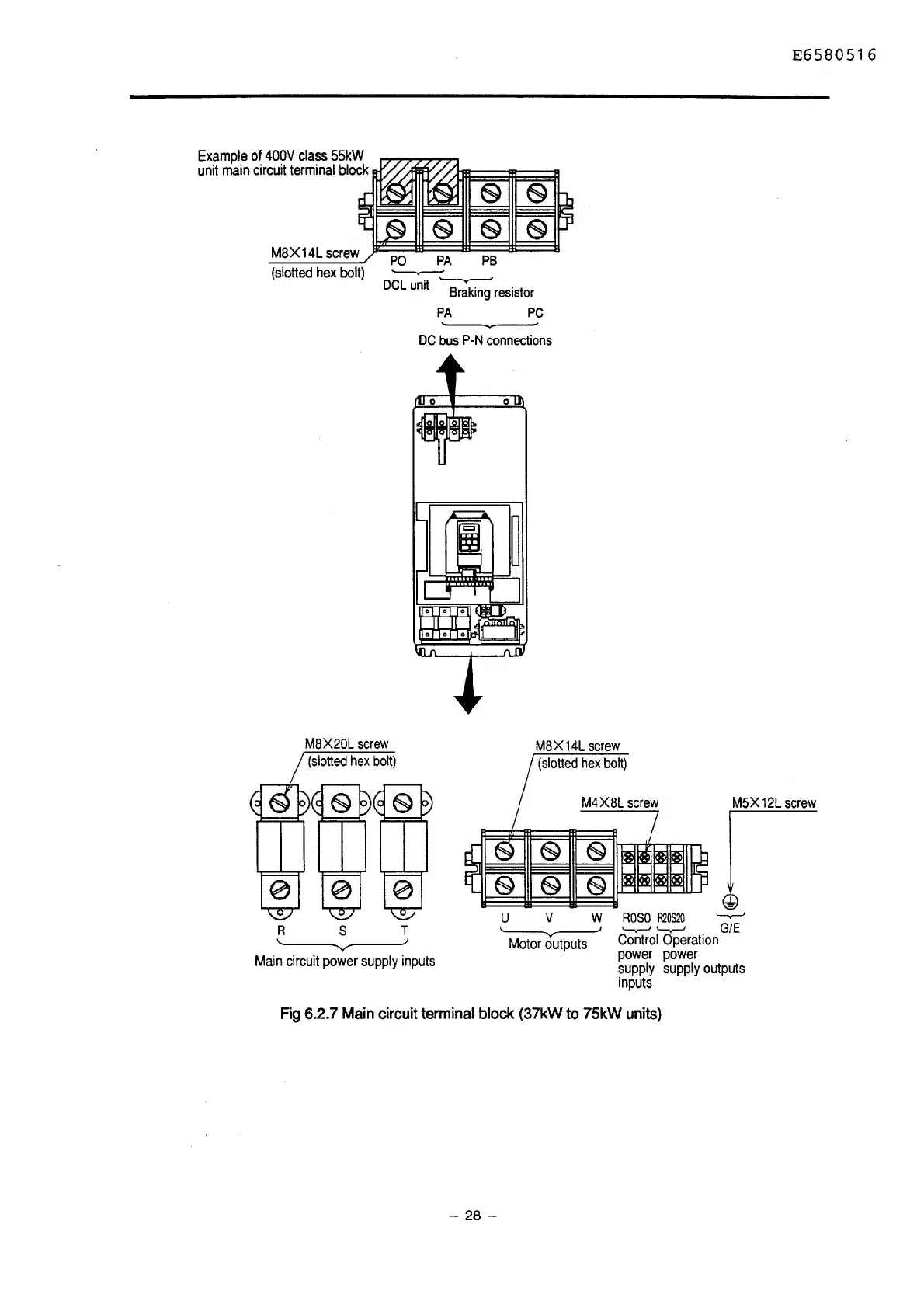

Fig 6.2.7 Main circuit terminal block (37kW to 75kW units)
- 28 -
E6580516
