E6580516
Charge
lamp
11-------------.
Note) When using a braking resistor
with 22kW and
larger units,
the GTR7 (dynamic braking circuit)
option must
be
installed.
1
R/L
1
S/12
T/L3
I I
U/T1
V/T2
W/T3
I
PO
PA
PC
PB
MS
screw
~
POWER
SUPPLY
MOTOR
(RO
and
SO
terminal)
RO,
SO
terminal
block
for
external
wiring
~
When
connecting
a
separate
power
supply
to
the
RO
and
SO
terminals,
always
remove
the
shorting
bars,
or
the
inverter
may
be
damaged.
earth
@
Terminal block cover
lcAUTIONI
Terminal block
Connected
to
the
main
circuit
terminals.
Do
not
connect
external
wiring
to
the
lower
terminals.
4-M4X8L
screws
With
terminal
cover
Recommended
RO
so
tightening
torque:
1.2N•m
(11
lbs-in)
CONTROL
POWER
SUPPLY
200V
CLASS
Note)
400V
systems
are
indicated
as
"400V
CLASS"

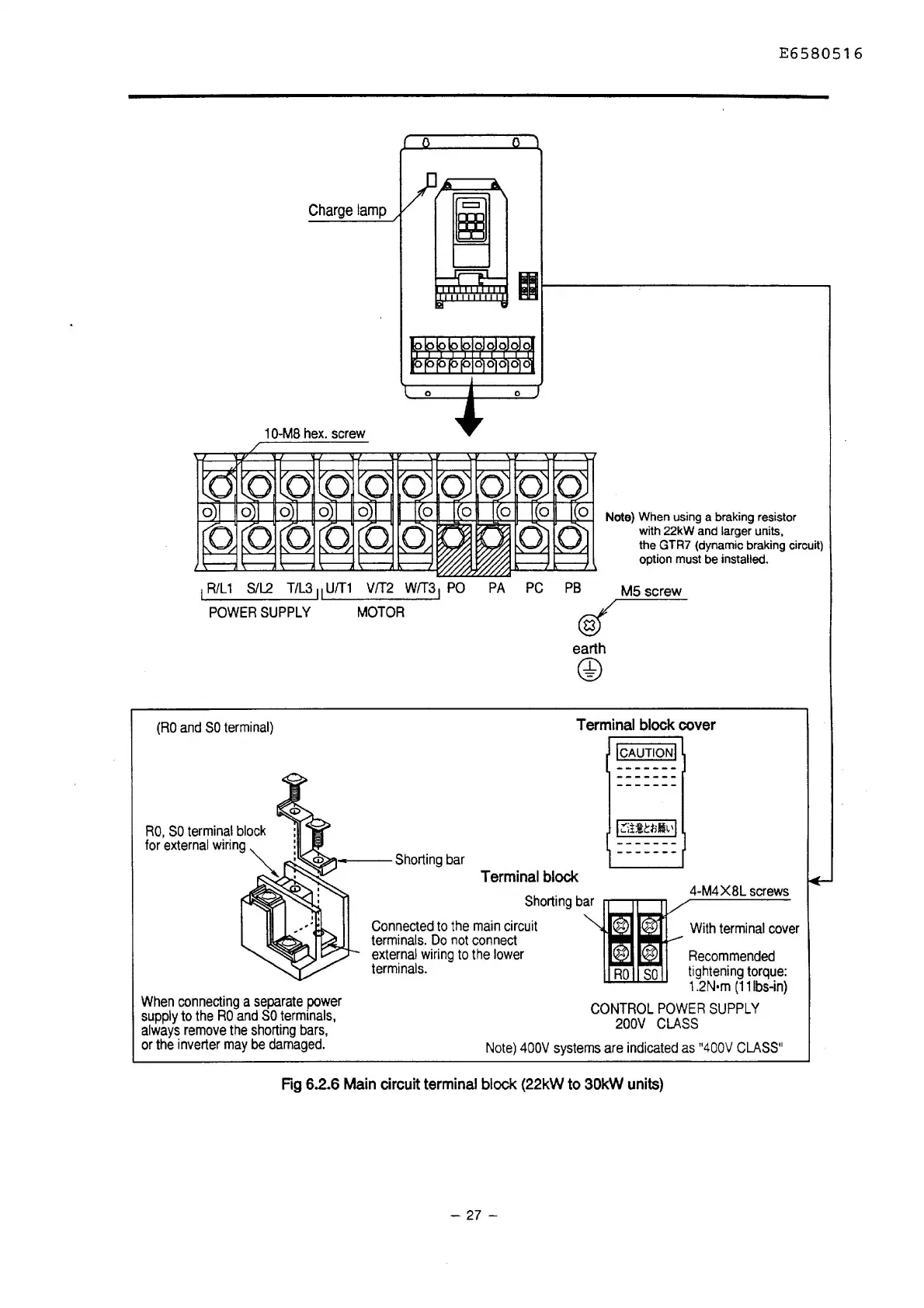

Fig 6.2.6 Main circuit terminal block (22kW to 30kW units}
- 27 -
