Toshiba Tosvert VF-S15 User Manual

E6582175
E-17
5
Note) When the other preset-speed command is input while adjusting frequency with the setting dial, operation
frequency will change but not the inverter display and the subject of adjustment.
Ex) If sr2 is input when operating under sr1 and changing frequency with the setting dial, operation
frequency will change to sr2 but inverter display and the subject of adjustment continue to be sr1.
Press the center or MODE key to display sr2.

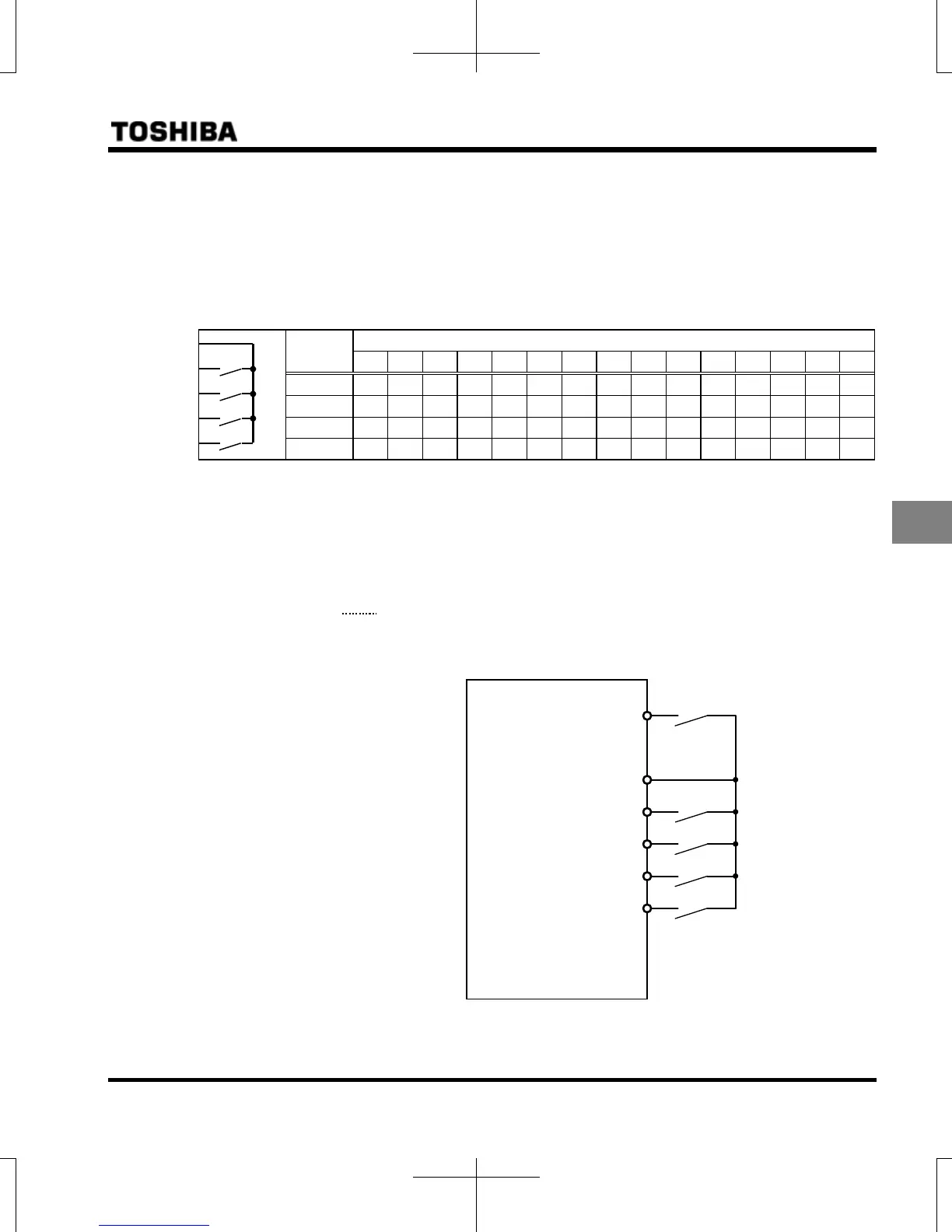

Preset-speed logic input signal example: Slide switch SW1 = SINK side
O: ON -: OFF (Speed commands other than preset-speed commands are valid when all are OFF)
Terminal
Preset-speed
123456789101112 13 14 15
S1-CC

-

-

-

-

-

-

-

S2-CC -
 
--
 
--
 
- -
 
S3-CC - - -
   
----
   
RES-CC -------
       
● Terminal functions are as follows.
Terminal S1 ............. Input terminal function selection 4A (S1)
=10 (Preset-speed command 1: SS1)
Terminal S2 ............. Input terminal function selection 5 (S2)
=12 (Preset-speed command 2: SS2)
Terminal S3 ............. Input terminal function selection 6 (S3)
=14 (Preset-speed command 3: SS3)
Terminal RES Input terminal function selection 3A (RES)
=16 (preset-speed command 4: SS4)
● In the default settings, SS4 is not assigned. Assign SS4 to RES with input terminal function selection.
CC
S1
S2
RES
S3
F (Forward run)
CC
RES
S2
S3
S1
Forward
Preset-speed 1 (SS1)
Preset-speed 3 (SS3)
Preset-speed 4 (SS4)
Preset-speed 2 (SS2)
Common
[ Example of a connection diagram ]
(with sink logic settings)

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
