Toshiba Tosvert VF-S15 User Manual

E6582175
F-75
6

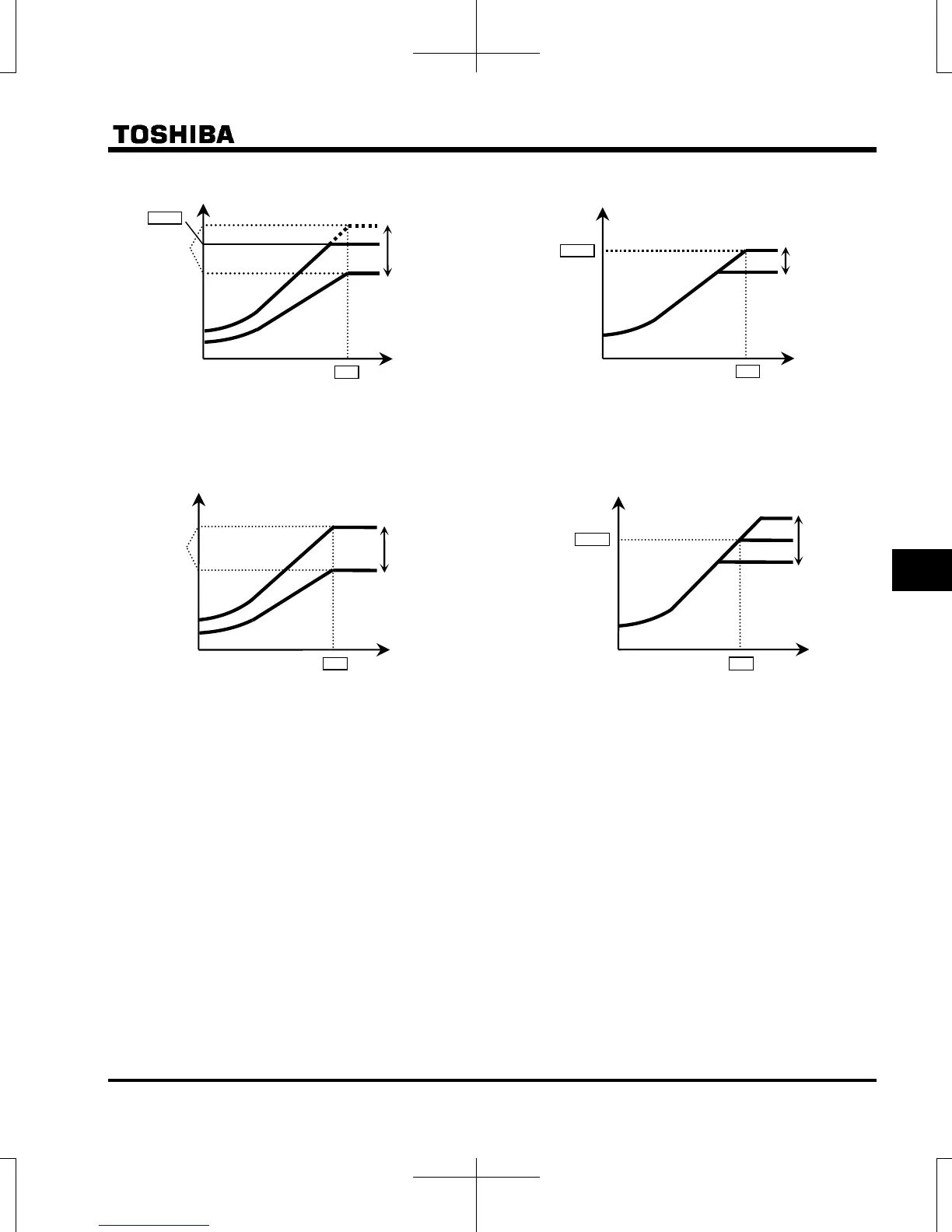

[f307=0: No voltage compensation/output voltage limited] [f307=1: Voltage compensation/output voltage limited]
[f307=2: No voltage compensation/no output voltage limit] [f307=3: Voltage compensation/no output voltage control]
* The above is applied when V/F control mode selection
parameter  is set to "0" or "1".
Output voltage
[V]
Input voltage
Output frequency
vl
High
Low
0
Input voltage
vlv

Input voltage
High
Low
Output voltage
[V]
Output frequency

0
* Note that the output voltage exceeding vlv is produced at
the output frequency of
vl(base frequency) or more, even if
vlv (base frequency voltage 1) is set to the input voltage or
less.
Input voltage
High
Low
Output voltage
[V]
Output frequency
 
0

Input voltage
High
Low
Output frequency
Output voltage
[V]

0
Input voltage
* The above is applied when V/F control mode selection
parameter  is set to
"" or "".

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
