Toshiba Tosvert VF-S15 User Manual

E6582175
F-86
6

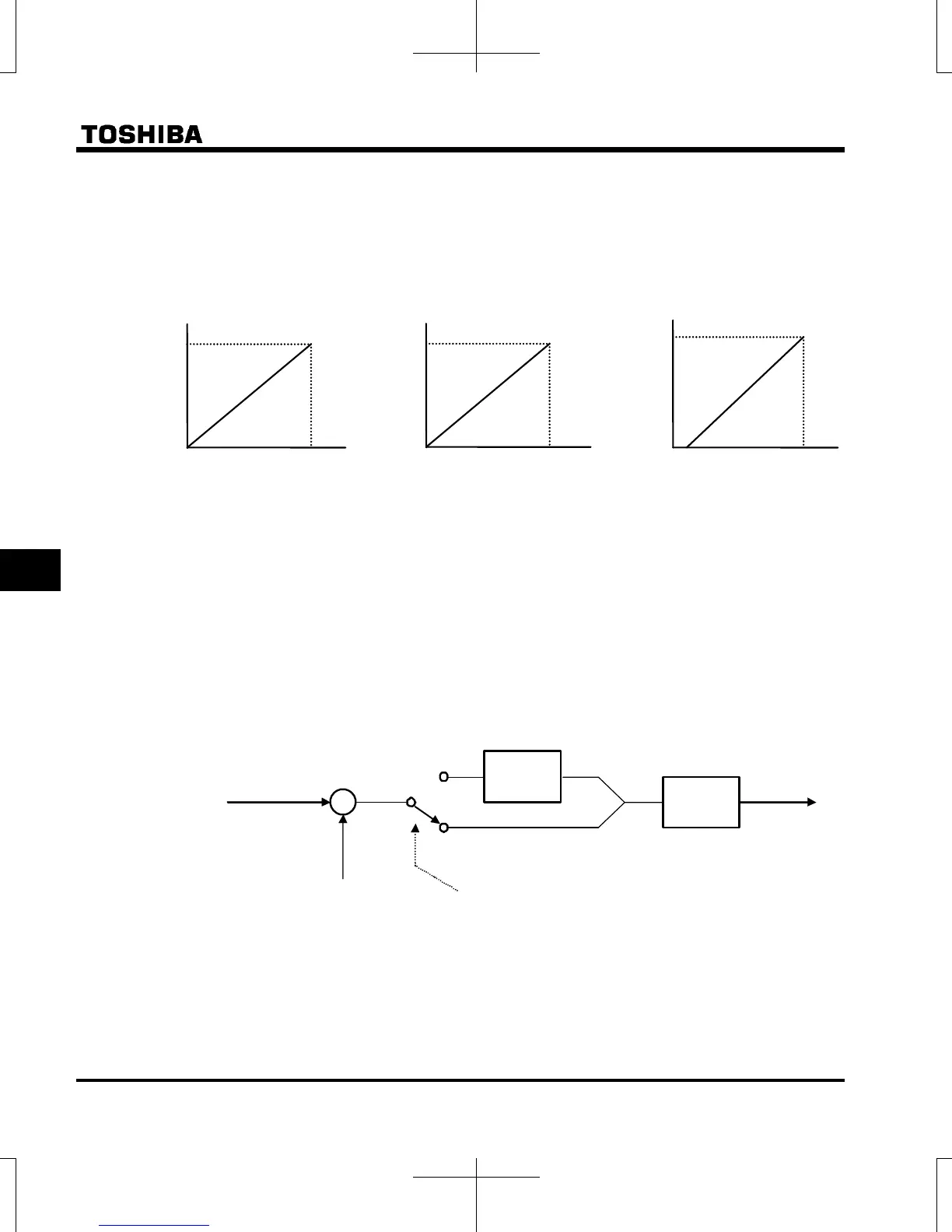

5) Adjusting feedback value
Make adjustment by converting input level of the feedback value into frequency. Refer to section 6.10.2 for
details.
Example of 0 - 10 Vdc voltage input
setting
Example of 0 - 10 Vdc voltage input
setting
Example of 4 - 20 mAdc voltage input
setting

(60Hz)

(0Hz)
0V

0%
10V

100%
VIA input value
Output frequency
13
(60Hz)
11
(0Hz)
0V
10
0%
5V
12
100%
VIB input value
Output frequency
19
(60Hz)
17
(0Hz)
4mA
16
20%
20mA
18
100%
VIC input value
Output frequency
6) Setting the time elapsed before PID control starts
Waiting time until starting PID control system can be set to avoid PID control until the control system
becomes stable.
The inverter ignores feedback value, carries out operation at the frequency determined by the frequency
command value for the period of time specified with f359, and enters the PID control mode after the
elapsed time.
7) PID control forward/reverse characteristic switch
PID input characteristics can be reversed.
PID set value
Feedback value

×(-1)
PID
Output
Opposite characteristic
Original characteristic
Characteristic selection (parameter or terminal input)
 When characteristic is reversed according to parameters, set PID forward/reverse characteristics
selection f380 to 1: Set reverse characteristics.
 When characteristic is reversed using logic input terminal, assign function number 54/55, PID
characteristics switching, to an input terminal.
Note) If reverse characteristics is selected for parameter f380 and terminal input at the same time,
they become forward characteristic.

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
