Toshiba Tosvert VF-S15 User Manual

E6582175
F-87
6

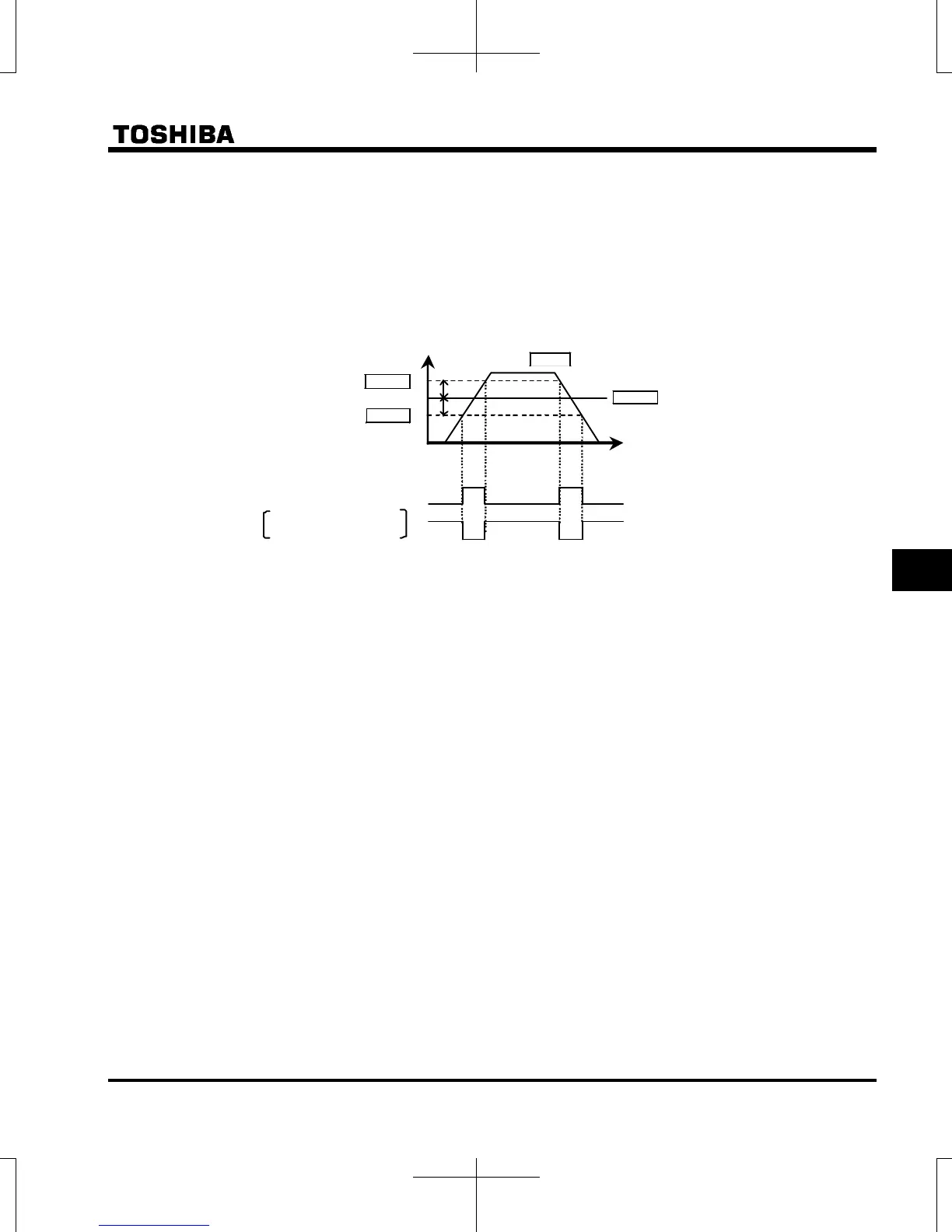

8) Comparing PID set value and feedback value
If the PID set value specified using f389 and the feedback value from f369 match the range of
 f167, an ON or OFF signal will be sent out from the output terminal.
Assign function number 144/145, Signal in accordance of PID set value, to an output terminal
PID set value
ag reement signa l : Inverte d
PID set value
f389
- 
ON
OFF

+ 
ON
OFF
PID set value agr eement signal

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
